ABB 57160001-KX 16-Channel Digital Relay Output Board

Description

Product Introduction

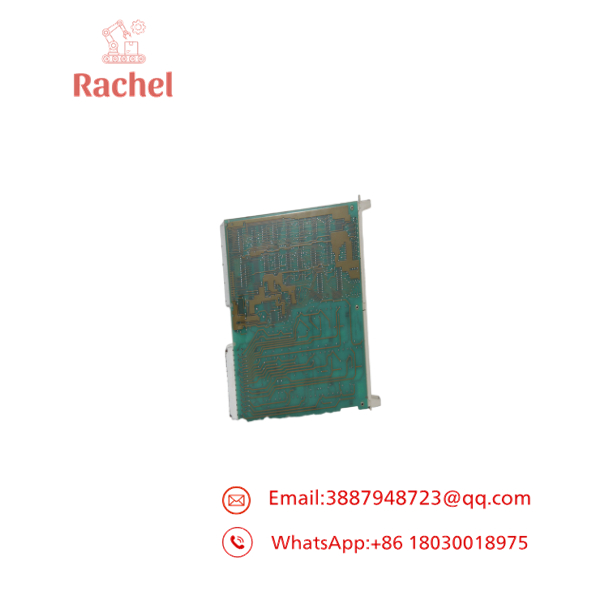

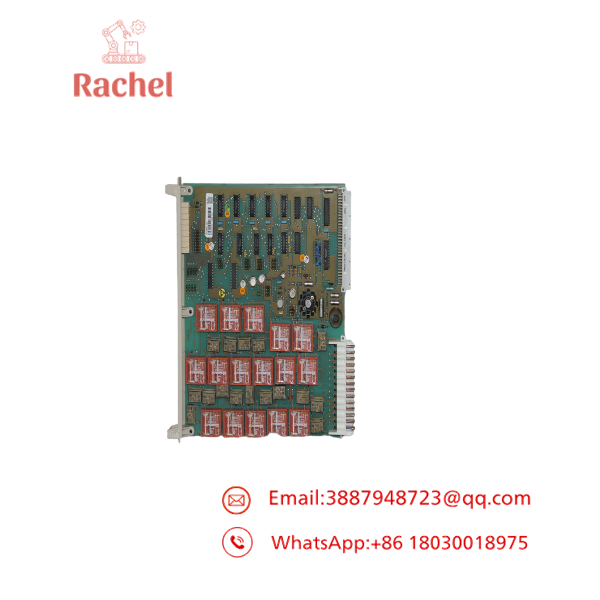

The ABB DSDO131 (57160001-KX) is a 16-channel digital relay output board operating within the ABB S100 I/O rack architecture. Serving critical control functions across MasterPiece 200 and Advant OCS Distributed Control Systems (DCS), this module converts 24 VDC internal control logic into 16 dry relay contacts capable of switching up to 240 V AC/DC field equipment directly.

Engineered for rugged industrial environments, the 57160001-KX board provides high channel density combined with galvanic isolation between the low-voltage backplane bus and high-power plant actuators. Onboard diagnostic LEDs and status monitoring lines continuously report relay health to the host controller to prevent undetected field switching failures.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

During a main turbine lube oil system upgrade, an older solid-state driver card failed repeatedly due to voltage spikes from large solenoid coil discharges. Installing the ABB DSDO131 (57160001-KX) provided physical relay isolation between the control bus and the 120 VAC hydraulic valves, dampening inductive voltage kickbacks and eliminating spurious trip signals on the main control rack.

• Power Generation & Substation Control – Switches high-voltage breaker trip coils, lockout relays, and warning annunciators.
• Petrochemical Plants – Drives emergency shutdown solenoids and field motor starter coils.
• Water & Wastewater Facilities – Controls multi-stage pump contactors and valve actuators.

Transparency SOP: Quality Assurance & Testing

1. Mechanical & Relay Contact Inspection: Relay housings, solder joint integrity, and backplane gold edge-connectors are verified under magnification for oxidation or thermal degradation.
2. Backplane Logic & Addressing Test: The module is seated in an active S100 test subrack to confirm address decoder stability and logic communication.
3. 16-Channel Load & Isolation Sweep: Each relay channel is cycled under full rated load (240 VAC) to test pull-in/drop-out response times and contact resistance.
4. ESD & Protective Packaging: Tested boards are cleaned with non-conductive solvent, enclosed in heavy static-shielding bags, and fitted into custom foam shipping containers.

57160001-KX

57160001-KX

The Veteran’s Tech Trap Guide

• ⚠️ Observe inductive load suppression rules! When switching high-inductance field loads (solenoids, magnetic brakes), ensure snubber circuits (RC networks for AC, flywheel diodes for DC) are installed across external field terminals to prevent arc erosion on the DSDO131 relay contacts.
• ❗ Verify backplane DIP switch positioning. Match all card-address configuration jumpers on the 57160001-KX PCB to your specific S100 rack software configuration before inserting the board into a live system file.
• ⚠️ Do not exceed total rack power limits. While individual channels support high voltage, verify total field load current draw to prevent overheating of terminal wiring connections.

Frequently Asked Questions

• Q: Is the ABB 57160001-KX directly interchangeable with DSDO120?

  A: While both belong to the S100 digital output series, the DSDO131 features isolated dry relay contacts (0-240V AC/DC), whereas other variants may use solid-state transistor outputs. Always check field wiring compatibility.

• Q: Does the DSDO131 board require external 24 VDC field power?

  A: Internal logic power is drawn from the S100 backplane. However, field load voltage (e.g., 110 VAC or 24 VDC) must be routed through the relay contact loops from an external field power supply.

• Q: Are these genuine ABB factory boards?

  A: Yes, 100%. We only supply original OEM ABB hardware, fully bench-tested and certified prior to shipment.
