Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | ABB |
| Model Designation | SDCS-PIN-51A / SDCS-PIN-51 |
| Cross-Reference Product ID | 3BSE004940R1 / 3BSE004940R0001 |
| Successor/Replacement Part | SDCS-PIN-51-COAT (3ADT220090R0006) |
| Application Suitability | High-power industrial DC thyristor drive systems |
| Primary Voltage Sensen | High-ohmic resistive divider networks for line and motor voltage |
| Isolation Barrier | Full galvanic isolation between power stack and control electronics |
| Output Current Signals | Integrated current transformer (CT) matching inputs |
| Thermal Monitoring | Dedicated thermistor/PTC bridge evaluation circuitry |
| Dimensions | 254 mm Depth × 25 mm Height × 248 mm Width |
| Net Weight | 0.40 kg |
| Operating Temperature | 0 to +55 °C |
Product Introduction & Supply Chain Strategy
The ABB SDCS-PIN-51A is a foundational power interface and measurement card deployed within legacy high-power DCS500 and early-generation DCS800 DC drive configurations. It functions as the critical analog telemetry link, utilizing specialized high-ohmic resistor arrays to measure high-voltage AC line inputs and DC motor armature voltages safely. By converting these raw levels into low-voltage differential signaling, it provides isolated feedforward tracking data to the drive control processor while maintaining a robust galvanic barrier that protects delicate logic boards from massive transient overvoltages.
For operations managers executing long-term plant maintenance, treating this obsolete component as a critical New Surplus requirement optimizes your Total Cost of Ownership (TCO). Because the SDCS-PIN-51A is exposed to continuous heat convection directly inside the power module stack, it suffers from silent component drift over decades of operation. Refurbished alternatives pose significant operational risks; slight resistance shifts on an aged analog measurement board can cause incorrect current calculations, premature overcurrent trips, or symmetrical firing failures. Securing a factory-clean, zero-hour surplus card ensures precise diagnostic calibration and completely removes the hazard of unexpected line disruptions.

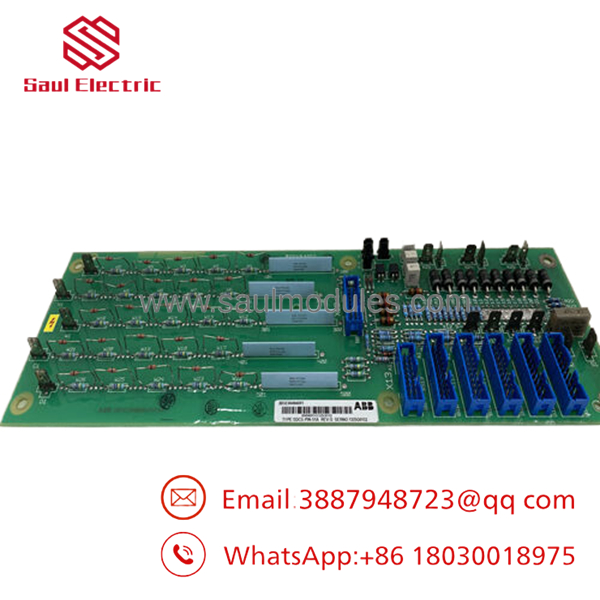

- SDCS-PIN-51A
Installation & Configuration Guide
Stage 1: Pre-Installation (Prep & Safety)
- De-energize the primary 3-phase AC feed supply to the converter and verify all control power sources are tagged out under strict lock-out/tag-out (LOTO) rules.
- Verify that the DC bus voltage and incoming line terminals read 0 V on a high-quality digital multimeter before accessing the chassis.
- Fasten a grounded ESD wrist strap to your body and link it directly to the cabinet framework grounding point.
- Record the precise positions of all onboard coding pins, jumpers, and terminal connections on the failing card.
Stage 2: Removal
- Unplug the internal ribbon interface cables that run directly to the main drive controller assembly.
- Disconnect the external analog measurement wires and current transformer lines from their respective terminal clamps.
- Remove the mechanical mounting screws securing the circuit card to the internal frame or electronic swing tray, supporting the board carefully to avoid falling hardware.
Stage 3: Installation (Clone & Seat)
- Duplicate all hardware coding jumpers from the old board onto the new surplus SDCS-PIN-51A unit to guarantee exact current/voltage scaling matches.
- Seat the new card flat onto its designated structural standoffs.
- Reinstall and tighten the mounting hardware to secure the board and establish a proper low-resistance chassis ground path. Reclip all ribbon connectors firmly.
Stage 4: Power-On & Testing
- Energize the auxiliary control circuits first while keeping the primary 3-phase power isolated.
- Access the drive panel diagnostic log to ensure the system recognizes the measurement interface card and displays no tracking or self-test faults.
- Close the primary power lines and run a standardized current calibration loop at low scaling to verify correct voltage and current reporting values before returning the drive to standard load conditions.
Firmware/Software Versions & Upgrade Notes
The SDCS-PIN-51A is entirely composed of specialized analog monitoring circuitry, voltage-divider networks, and scaling pathways. It does not contain an independent microprocessing unit or updateable flash firmware.
However, because this specific card variant has been superseded in contemporary production channels by the newer SDCS-PIN-51-COAT module (Part Number: 3ADT220090R0006), it is vital to check your existing system documentation. The newer successor card features an advanced protective conformal coating to defend against environmental pollutants, but it retains the same mounting dimensions and electrical footprint. If your engineering team substitutes the newer coated variant in place of the original legacy “A” design during this swap, you must execute a standard drive scaling and optimization sweep through your drive tuning firmware to adjust the internal software constants to the updated physical component profiles.
Frequently Asked Questions (FAQ)
Is this card a genuine new part or a repaired second-hand component?
This card is a guaranteed New Surplus item. It has never been used in a live production environment, installed on a drive chassis, or subjected to field conditions. It is clean inventory from strategic storage, and every module undergoes comprehensive quality testing before shipment. We do not provide used or refurbished parts.
Why should we spend more on a New Surplus board when cheap refurbished options are available online?
Refurbished measurement cards present a massive hidden risk for high-power DC drive systems. Resistors and isolation components on the board age under high thermal stress and degrade silently over time. An undetected calculation drift on a refurbished board can lead to incorrect gate pulse commands, causing thyristor bridge failures that can disrupt operations and cost tens of thousands of dollars in emergency repairs. Buying new surplus units ensures maximum factory precision and isolates your process from unexpected downtime.
What is the primary operational difference between the and the newer SDCS-PIN-51-COAT model?
The underlying layout and primary measurement functions are identical. However, the newer “-COAT” version (3ADT220090R0006) features an advanced industrial conformal coating over the entire surface of the PCB. This layer provides extra defense against moisture, airborne dust, and conductive particulate tracking common in severe environments like steel and paper mills.
Does the module require separate calibration out of the box?
The card’s analog circuits are calibrated to factory hardware standards before leaving the production line. However, because its inputs rely on physical coding pins to scale voltage and current values to your specific drive frame, you must position the onboard jumpers to match your original board’s settings. A brief tuning verification run should also be initiated within your main drive system parameters upon startup.
What type of warranty coverage comes with this new surplus item?
We provide a comprehensive 1-year warranty on this New Surplus card, starting from the day it leaves our warehouse facility. This matches the protective terms of standard factory components, ensuring reliable security for your spare parts inventory.
