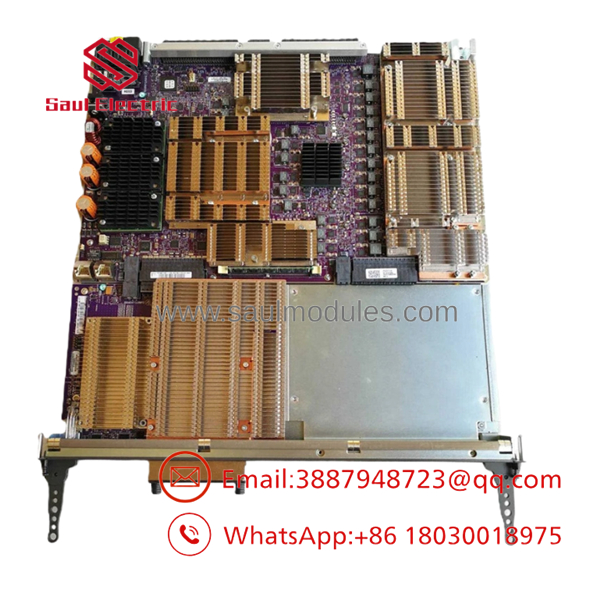

Alcatel 3HE06936AA Network Module

Description

Product Introduction & Engineering Value

The Alcatel 3HE06936AA is an Alcatel telecom/network equipment part identified by its 3HE06936AA ordering code. For legacy telecom infrastructure, the exact part number is more useful than a broad product-family description because Alcatel equipment often uses closely related assemblies with different hardware revisions or system roles.

For procurement and replacement work, verify the complete label, hardware revision, associated chassis or platform, connector arrangement, and software/firmware requirements. Do not approve a substitute based on physical appearance alone.

Technical Specifications

Identification note

The 3HE06936AA designation alone should not be used to infer port count, optical interface type, power requirements, or network protocol. Those characteristics need to be confirmed from the applicable Alcatel equipment documentation or the physical unit’s complete identification label.

Field Application & the “Trench” Experience

Telecom spare replacement is often less forgiving than ordinary industrial-panel replacement. A board can physically fit the chassis and still be unsuitable because of hardware revision, software compatibility, provisioning, or platform-specific configuration.

For 3HE06936AA, the safest maintenance procedure is to photograph the installed module label before removal and record the host chassis, slot position, connected interfaces, and software/firmware information. Preserve the removed module until the replacement has completed system-level testing.

Specific application scenarios

• Carrier network equipment cabinets where legacy Alcatel hardware remains in active service.
• Telecommunications transmission infrastructure requiring controlled replacement of discontinued assemblies.
• Network equipment maintenance programs where spare modules are held for long-life installed systems.

3HE06936AA

Transparency SOP: QA & Testing

For New Surplus Alcatel 3HE06936AA, a practical receiving inspection should include:

1. Part-number verification — Confirm 3HE06936AA on the actual label.
2. Hardware inspection — Check PCB assemblies, connectors, handles, guides, and mounting hardware.
3. Condition assessment — Look for corrosion, impact damage, contamination, or evidence of previous field installation.
4. Revision check — Record hardware revision and serial information where available.
5. Power/interface testing — Test only with the correct Alcatel platform or approved test equipment.
6. System-level verification — Where possible, verify recognition by the host chassis and required network functions.
7. Documentation — Record test results and retain photographs of the actual unit.

For telecom hardware, “powers on” is not sufficient evidence of full functional condition.

The Veteran’s Tech Trap Guide

⚠️ Trap #1 — Treating 3HE numbers as generic part numbers

Do not assume that a nearby 3HE-series number is an interchangeable replacement. The exact ordering code and hardware revision matter.

⚠️ Trap #2 — Buying without identifying the host system

The same-looking telecom assembly may have platform-specific requirements. Record the chassis, slot, and surrounding hardware before ordering.

PRO TIP: Photograph the label, connectors, front panel, and rear assembly before removing the installed part. These images can prevent an expensive identification mistake.

⚠️ Trap #3 — Ignoring firmware and provisioning

Even when the hardware is correct, commissioning may require compatible firmware, configuration data, or platform-specific provisioning. Plan for this before the maintenance window.

Dynamic FAQ

What is Alcatel 3HE06936AA?

It is an Alcatel telecom/network equipment part identified by ordering code 3HE06936AA. Its exact system role should be confirmed from the associated Alcatel platform and physical label.

Is 3HE06936AA a network module?

It is best treated as Alcatel telecom/network hardware until the exact platform documentation identifies its specific function. The part number alone should not be used to claim a particular interface or network role.

How do I verify compatibility?

Match the complete part number, hardware revision, host chassis, slot position, connector arrangement, firmware requirements, and system configuration.

Can I use a similar 3HE-series module as a replacement?

Not without technical verification. Similar Alcatel ordering codes can represent different assemblies or revisions.

Does New Surplus mean the module has never been installed?

Not automatically. Ask the supplier to define the condition specifically as unused, previously installed, refurbished, or repaired, and request photographs of the actual unit.

How should New Surplus 3HE06936AA be tested?

At minimum, verify the physical identification and inspect the assembly. Where appropriate Alcatel test equipment or a compatible chassis is available, perform power-up, hardware-recognition, interface, and system-level testing.

What warranty should I request?

Confirm the warranty period, exact condition classification, test scope, serial-number documentation, and return provisions in writing. For legacy telecom hardware, those details are important because replacement availability can be limited.
