Bently Nevada 161216-01 Proximitor/Seismic I/O Module (BNC/Internal)

Description

Product Introduction

The Bently Nevada 161216-01 is an enhanced four-channel rear Input/Output (I/O) interface module designed specifically for pairing with the 3500/42M Proximitor/Seismic Monitor inside the 3500 Machinery Protection System. Installed in the full-height rear slot directly behind the primary 3500/42M processing card, the 161216-01 handles field sensor wiring while offering direct, short-circuit-protected buffered signal access.

Featuring internal Euro-style screw terminals for direct sensor wiring and onboard coaxial BNC connectors for each channel, the 161216-01 routes regulated -24V DC power to field transducers and sends dynamic signals to the main monitor. Simultaneously, it outputs clean, uncorrupted AC/DC dynamic signals via the BNC ports for portable vibration analyzers and diagnostic tools without disturbing primary protection loops.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

During a planned machinery health audit on a critical high-speed gas turbine, reliability engineers need to collect high-resolution raw spectrum and orbit data across all bearing locations. Connecting portable signal analyzers to standard screw terminals poses shorting risks and can trigger false channel “NOT OK” alarms. Racks fitted with the 161216-01 rear I/O module allow technicians to attach coaxial BNC cables directly to the rear panel. The buffered outputs provide isolated dynamic signal access to data collectors (like System 1 or portable analyzers) without risking accidental trip signals or affecting overall protection logic.

• High-Criticality Turbomachinery: Delivers quick BNC access for transient data collection during machine run-up, coast-down, and steady-state testing.
• Refineries & Petrochemical Plants: Connects proximity probes and accelerometers on main compressor skids via secure internal screw terminals.
• Power Generation Facilities: Enables continuous or periodic diagnostic monitoring on generator bearings without altering field wiring.
• 3500 System Maintenance & Upgrades: Modern replacement rear module for plants standardizing on internal screw terminals with built-in BNC diagnostic ports.

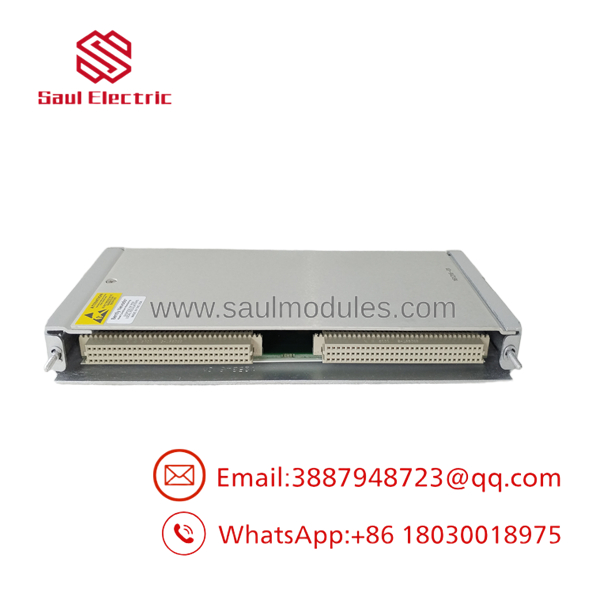

161216-01

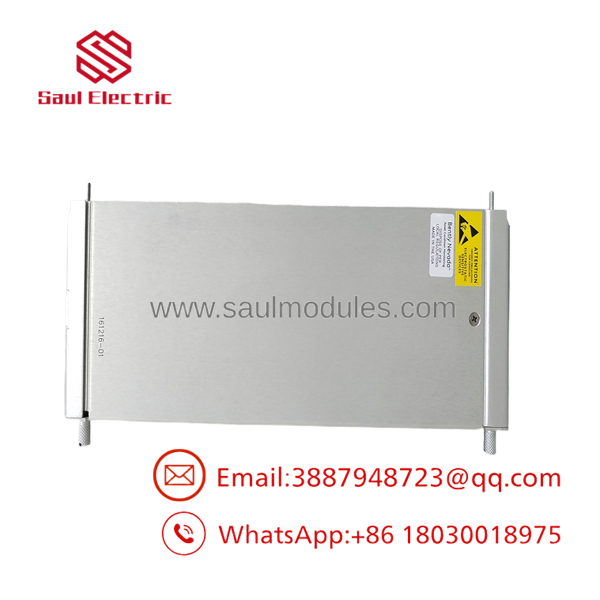

161216-01

Transparency SOP: Quality Assurance & Testing

1. Visual & Structural Inspection: PCB traces, Euro-style screw terminals, edge connector pins, and BNC connector jack housings are thoroughly checked for corrosion, wear, or physical damage.
2. Backplane & Chassis Fit Test: Inserted into a live Bently Nevada 3500 test rack behind a functional 3500/42M main card to verify mechanical seating and slot detection.
3. Signal & Power Routing Audit:
   • Transducer Power Routing: Confirmed supply voltage (-24V DC) pass-through across all 4 channel terminals.
   • Buffered BNC Signal Continuity: Precision AC/DC test signals are passed through each channel to verify linear signal delivery to the 3500/42M card and short-circuit-proof output at the corresponding BNC ports.
4. Final ESD Packaging: Cleaned, fitted with protective connector covers, sealed in anti-static shielding bags, and securely packaged in heavy-duty foam containers.

The Veteran’s Tech Trap Guide (Crucial Value-Add)

• ⚠️ Module Part Number Variants: The 161216-01 is functionally similar to the 136703-01 internal termination BNC module. Always check your 3500 Rack Configuration Software and bill of materials to ensure hardware revision compatibility before swapping out modules.
• ❗ Short-Circuit Protection on BNC Ports: The BNC outputs on the 161216-01 are buffered and isolated. Accidental shorting of a BNC pin or cable during testing will not impact the primary sensor signal or trigger a false trip on the 3500/42M monitor channel.
• ⚠️ Monitor Card Compatibility: The 161216-01 is engineered exclusively for the 3500/42M Proximitor/Seismic Monitor. Pairing it with incompatible cards (e.g., 3500/25 Keyphasor or 3500/45 Position monitors) will cause a slot configuration error on the 3500/22M RIM.
• ❗ Shield Wire Isolation: Connect cable shields strictly to the designated SHIELD screw terminals on the 161216-01 board. Keep shields floating/ungrounded at the sensor junction box in the field to prevent 50/60 Hz ground loops from corrupting low-level vibration measurements.

Frequently Asked Questions (FAQ)

Q: What is the main function of the Bently Nevada 161216-01?

A: It is an internal termination rear I/O card for the 3500/42M Proximitor/Seismic Monitor, featuring internal Euro-style screw terminals for sensor wiring and coaxial BNC connectors for buffered dynamic signal access.

Q: Can I connect the BNC outputs on the 161216-01 directly to online diagnostic software?

A: Yes. The BNC ports provide short-circuit-protected, isolated buffered signals suitable for continuous hookup to online condition monitoring systems (such as System 1) or temporary diagnostic test equipment.

Q: What transducer types work with the 161216-01 rear module?

A: It accepts inputs from standard 3300 XL eddy-current proximity probes, accelerometers, Velomitors, and electrodynamic Seismoprobes configured on the front 3500/42M monitor.

Q: Is it necessary to power down the 3500 rack slot before replacing this module?

A: Yes. Powering down the specific slot or isolating transducer power prior to servicing rear I/O cards prevents accidental short circuits across backplane pins.

Q: What warranty is provided on surplus or reconditioned 161216-01 modules?

A: All New Surplus and fully reconditioned Bently Nevada 161216-01 modules include a full 12-month replacement warranty from the invoice date.
