Bently Nevada 3500-05-02-04-00-00-00 19-Inch Rack Chassis

Description

Product Introduction & Engineering Value

Bently Nevada 3500-05-02-04-00-00-00 Bently Nevada 3500-05-02-04-00-00-00 The Bently Nevada 3500-05-02-04-00-00-00 provides the structural 14-slot framework, backplane data paths, and panel mounting required for 3500 monitoring machinery.

Trying to shoehorn high-fidelity vibration modules into a warped or grounding-faulted legacy enclosure introduces signal cross-talk that disrupts emergency trip operations. The Bently Nevada 3500-05-02-04-00-00-00 provides the physical housing and high-speed data backplane that ties your machinery monitors together.

This framework holds up to 14 separate monitoring modules alongside redundant power supplies and transient data interfaces. It secures your hardware investments while isolating sensitive signal routing from external plant electrical noise.

Technical Specifications

• Rack Size Option (-05): 3500/05 System Rack
• Rack Mounting Option (-02): Panel Mount Format (Mounts into standard cutouts)
• Agency Approval Option (-04): No approvals required / Standard industrial zone
• Reserved Code Options (-00-00-00): Multi-axis standard spacing variables
• Total Module Slots: 14 available peripheral card slots (excluding power supply and RIM slots)
• Backplane Media: Multi-layer printed circuit board with high-density shielding
• Material Construction: Heavy-gauge aluminum and passivated steel framework
• Cooling Clearance: Requires minimum 101.6 mm (4.0 in) above and below the assembly

Field Application & The “Trench” Experience

During an emergency controls migration on a critical gas pipeline compressor station, our field technicians found that the existing 3500 frame had sustained structural compression during an arc-flash event in the lower terminal bay. The enclosure’s backplane was distorted, rendering slot 7 completely non-functional. Rather than delaying startup by attempting field refabrication, we swapped the entire damaged frame out with a clean 3500-05-02-04-00-00-00 panel-mount chassis. After transferring the existing modules over, the internal bus cleared all data frame alignment faults, enabling the pipeline operators to safely bring the compressors back online.

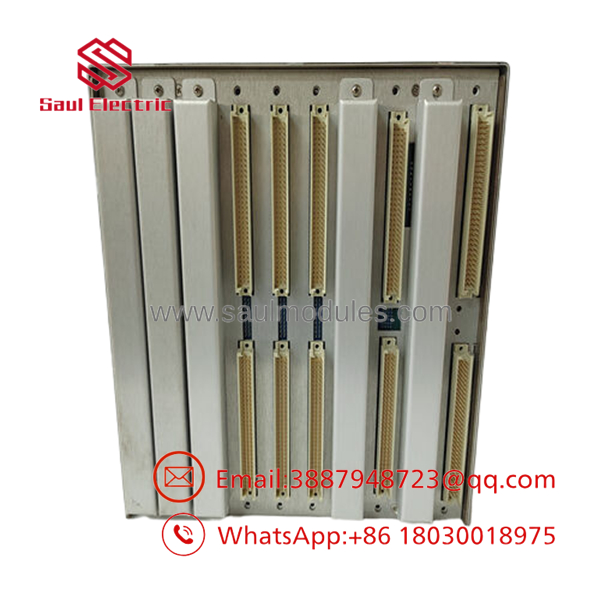

3500-05-02-04-00-00-00

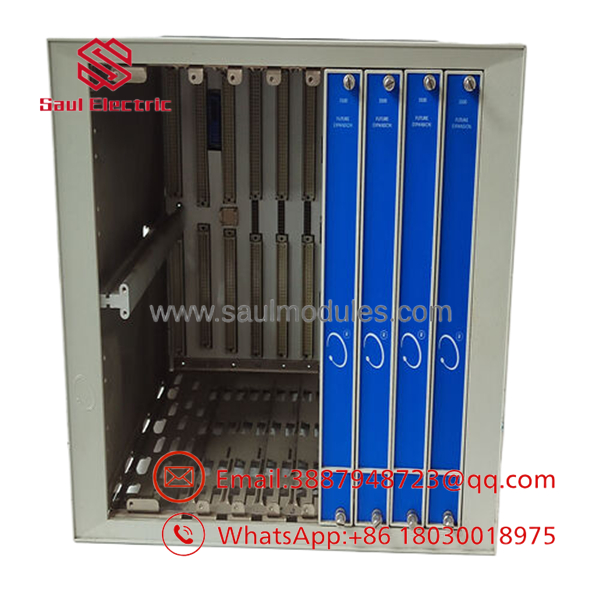

3500-05-02-04-00-00-00

Niche Application Scenarios

• Compressor Train Integration: Clustering radial vibration, thrust position, and temperature monitors into a centralized panel cutout within a control console.
• Hydroelectric Generator Enclosures: Housing multiple high-channel seismic and air-gap monitoring modules on the turbine deck level.
• Refinery Cracking Unit Safety Skids: Standardizing critical machinery protection cards inside a localized, secure structural rack assembly.

Transparency SOP: QA & Testing

A structural backplane failure can compromise every single machinery protection loop simultaneously. We eliminate that single point of failure through a step-by-step evaluation process:

1. Backplane Planes Continuity Isolation: We use a high-resistance megohmmeter to verify complete electrical isolation between power distribution planes and the signal traces on the backplane circuit board.
2. Physical Insertion Tolerance Checks: Every single card guide track and individual slot connector pins are tested using standard 3500 module dummy cards to verify smooth physical travel and correct contact friction.
3. Redundant Bus Stress Profiling: We load the rack completely with test modules and dual power supplies to run full communication routines via the Rack Interface Module (RIM), checking for noise or cross-talk under maximum bus load.
4. Earthing Ground Stud Inspection: The integrated dual-point chassis ground lugs are torqued down and checked for absolute minimal grounding path impedance.

The Veteran’s Tech Trap Guide (Crucial Value-Add)

⚠️ The Cutout Dimension Trap: This specific variant code (-02) designates a Panel Mount rack configuration. It does not include the forward flange ears or structural tabs required to bolt directly into standard front-facing 19-inch electronic equipment racks (which require the -01 Rack Mount option). Installing this unit means you must cut a precise geometric rectangle out of an enclosure panel door.

PRO TIP on Power Supply Slots: The left hand side of the 3500-05 chassis backplane features dedicated power slots. If you run a redundant power system, you must populate both the upper and lower power positions. If you run a single power configuration, ensure the blanking panel is properly installed over the empty slot to maintain standard internal cooling airflow profiles.

Dynamic FAQ

• Q: Can I convert this panel-mount rack (-02) into a standard 19-inch rack-mount style (-01) later on?
  • A: Converting the chassis requires completely replacing the physical front support flanges and ears with Bently Nevada conversion brackets. It is generally far more cost-effective to purchase the correct chassis framework configuration from the start.
• Q: Does this model code (-04) allow installation in ATEX Zone 1 explosive environments?
  • A: No, the -04 agency option signifies a standard industrial layout with no specialized global agency approvals. For intrinsic safety or specific hazardous location certifications, you will require the -02 (ATEX/IECEx) or -01 (CSA/NRTL/C) options.
• Q: Does the chassis come with the Rack Interface Module (RIM) or power supplies?
  • A: No, the 3500-05-02-04-00-00-00 model number represents the bare structural rack frame and integrated backplane assembly only. All modules, power components, and blanks are sold separately.
• Q: Are the rear terminal blocks included on this backplane frame?
  • A: The chassis contains the main backplane connectors. The field-wiring terminal blocks themselves are physically integrated onto the individual I/O modules that you plug into the rear of the rack.
