Bosch Rexroth 0608750112 LT353 Servo Drive Controller

Description

Product Introduction

The Bosch Rexroth 0608750112 (LT353) operates as a power module and servo drive controller built for Bosch Rexroth tightening control systems. Interfacing directly with a central controller rack (such as the 350 series tightening system), this drive module handles precise current loop regulation and switching power delivery for automated nutrunners and electric spindle tools on fast-cycle assembly lines.

By delivering a regulated 330V DC bus output at up to 3.5A continuous current, the LT353 module gives tightening tools exact torque and angle control. Its compact, heat-sink-backed housing drops into standard Rexroth tool control cages, handling high duty cycles without tripping on thermal stress during automotive rundown applications.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

When a nutrunner servo drive throws an overcurrent or DC-bus fault on a chassis line, the entire cell halts. A blown 0608750112 drive card drops torque output on critical fastening stations, leaving assembly line operators unable to verify joint safety torque. Keeping a pre-tested replacement on the shelf gets the spindle back online in minutes rather than suffering a line-stop penalty that bleeds thousands per minute.

• Automotive Powertrain Assembly – Drives high-accuracy electric nutrunners on cylinder head and engine block bolt stations.
• Tier-1 Automotive Component Manufacturing – Controls multi-spindle tightening rigs securing chassis and suspension joints under strict torque/angle tolerances.
• General Industrial Fastening – Integrates into robotic cell tooling where compact size and stable 330V DC power delivery are mandatory.

Field Case Study

A major automotive assembly facility suffered a sudden drive controller failure on a robotic transaxle bolting station. The line’s Rexroth 0608750112 (LT353) module threw a persistent internal overcurrent latch fault due to a shorted power stage. With cars stacking up outside the station and plant management monitoring downtime costs, the maintenance team pulled a bench-tested 0608750112 surplus unit from critical inventory. After verified power-off seating, the station passed three test rundowns and resumed full production within 15 minutes.

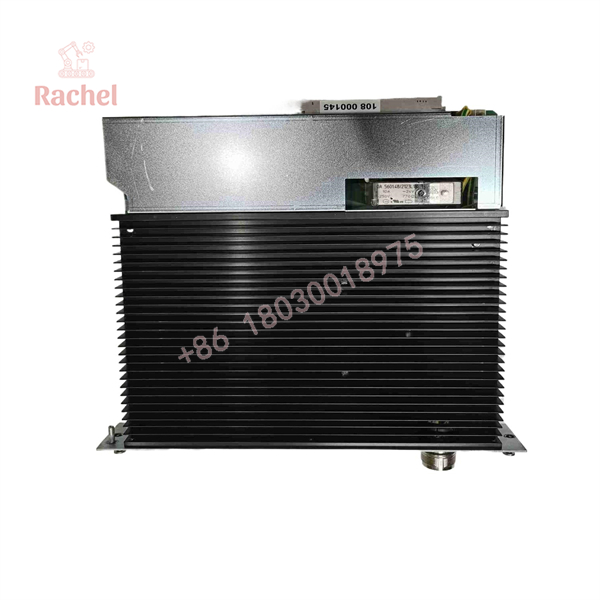

0608750112

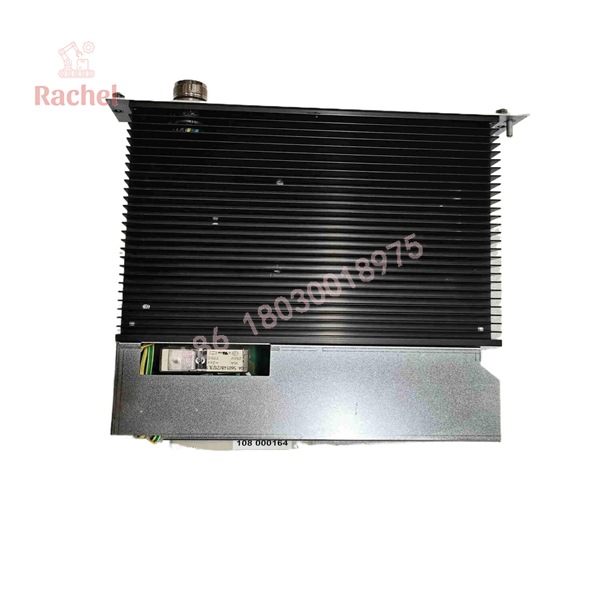

0608750112

Transparency SOP: Quality Assurance & Testing

We test our surplus hardware on real drive setups before boxing it up.

1. Inbound Mechanical Check: Verify edge connectors, guide rails, thermal pad contact, and front-panel housing integrity.
2. Insulation & Diode Checks: Perform semiconductor bus-to-ground checks and verify output stage power transistors for short circuits.
3. Power-On Test: Insert the card into a live 330V DC bus rack to verify cold-boot logic and front-panel LED diagnostics.
4. Dynamic Output Stress Test: Connect the LT353 to a test tightening spindle and execute cyclic load rundowns to confirm full 3.5A current capability.
5. Anti-Static Packaging: Vacuum seal in anti-static ESD shielding bags with fresh desiccant prior to foam-lined shipment.

The Veteran’s Tech Trap Guide

• ⚠️ Power Down the Main Bus Before Rack Insertion: Never attempt to hot-swap a 0608750112 card into an energized chassis! The 330V DC power bus rail will arc across the edge connectors, destroying both the new module and the rack backplane socket. Always dump the DC bus power before servicing.
• ❗ Check Spindle Cable Integrity First: If your old LT353 module died from an overcurrent fault, inspect the tool umbilical cable and spindle motor windings before dropping in a new card. A shorted cable will instantly blow the power transistors on your replacement drive.
• ⚠️ Verify Fan Tray Airflow: The heavy heat sink on the rear of the LT353 relies on active chassis fan ventilation. Clogged intake filters or dead rack fans will cause thermal shutdown during high-duty-cycle bolting sequences.
• ❗ Clean the Edge Contacts: Legacy control enclosures collect oil mist and shop dust over time. Wipe the card’s edge connector with isopropyl alcohol and a lint-free swab before seating to prevent intermittent voltage drops.

Frequently Asked Questions (FAQ for Conversion)

Q: Is the Bosch Rexroth 0608750112 / LT353 card hot-swappable?

A: No. Standard Rexroth tightening system racks operate on high-voltage DC buses (330V DC). Inserting or pulling this module with power active will cause severe arcing and permanently ruin the board edge contacts.

Q: What is the primary difference between the LT353 designation and part number 0608750112?

A: They refer to the exact same hardware unit. LT353 is the functional model series designation, while 0608750112 is the official Bosch Rexroth 10-digit part number.

Q: Does this drive controller require separate firmware loading upon replacement?

A: The LT353 functions primarily as a modular power stage / drive amplifier unit. Parameter configuration and joint torque curves reside in the main system controller board, but always match hardware revisions and jumper setups with the card being replaced.

Q: What warranty is offered with this surplus item?

A: We back all clean surplus and reconditioned 0608750112 modules with a 12-month operational replacement warranty.

Q: Why choose tested surplus over waiting for factory repair?

A: Repair lead times from factory channels can span several weeks or months for discontinued legacy tightening electronics. Our pre-tested surplus stock ships overnight, getting your assembly cell running immediately without waiting on extended repair queues.
