Bosch Rexroth CML40.2-SP-330-NA-NNNN-NW IndraControl L40 CPU

Description

Product Introduction & Engineering Value

When an aging plant automation controller throws unrecoverable system faults or loses its compiled logic during a power fluctuation, finding a drop-in replacement is critical to minimizing costly downtime. The Bosch Rexroth IndraControl CML40.2-SP-330-NA-NNNN-NW provides a high-performance processing core designed to slot directly into established IndraMotion and IndraLogic subrack configurations.

Engineered with an efficient AMD Geode processor and integrated fieldbus ports, this controller manages deterministic task execution and multi-axis coordination locally. Maintenance teams and systems integrators rely on its reliable hardware architecture to restore complex manufacturing lines without undertaking expensive software rewrites or panel re-wiring.

Technical Specifications

• Processor Architecture: AMD Geode LX800 running at 500 MHz core frequency
• System Series: IndraControl L40 / IndraLogic PLC platform
• Diagnostic Interface: Integrated single-line LCD status display and diagnostic LED indicators
• Communication Interfaces: Onboard Ethernet TCP/IP port and serial configuration channels
• Input Voltage Rating: 24 VDC nominal industrial control power supply
• Programming Environment: Compatible with IndraWorks engineering suite for logic and motion compilation
• Memory Architecture: Non-volatile flash storage with battery-backed RAM for application project retention
• Enclosure Rating: IP20 compact industrial module housing with backplane bus interface pins
• Operating Temperature Range: 0°C to 55°C (32°F to 131°F) ambient cabinet limits

Field Application & The “Trench” Experience

During an intensive production shift at a high-speed automotive component assembly plant, the main PLC CPU rack on an automated transfer line suffered a catastrophic power supply surge, locking the processor in a non-recoverable boot loop. Halting the line stopped shipments to final vehicle assembly. The plant automation engineer pulled a verified surplus Bosch Rexroth CML40.2 CPU from the facility’s critical spares inventory, transferred the CompactFlash project card, slotted the module into the L40 backplane, and restored full production line coordination in under thirty minutes.

Specific Niche Application Scenarios:

• Automotive Powertrain Transfer Lines: Coordinating multi-axis pick-and-place synchronous transfer stages.
• Packaging and Converting Machinery: Managing fast cam profiles and registration control loops.
• Special Purpose Assembly Skids: Executing deterministic logic and pneumatic sequencing for automated testing cells.

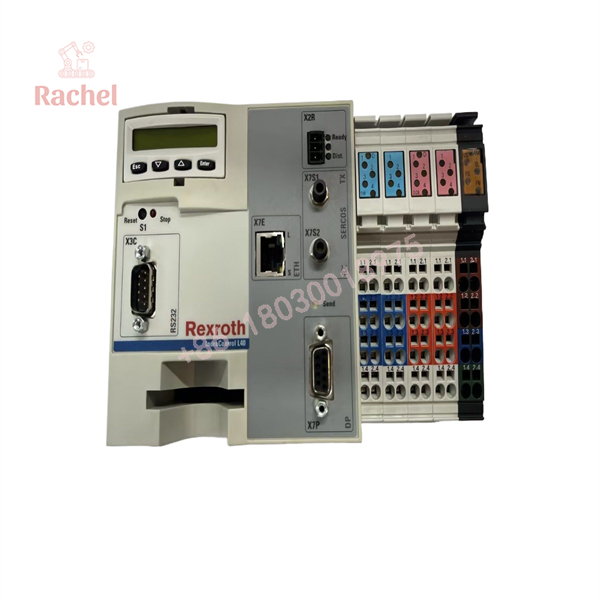

CML40.2-SP-330-NA-NNNN-NW

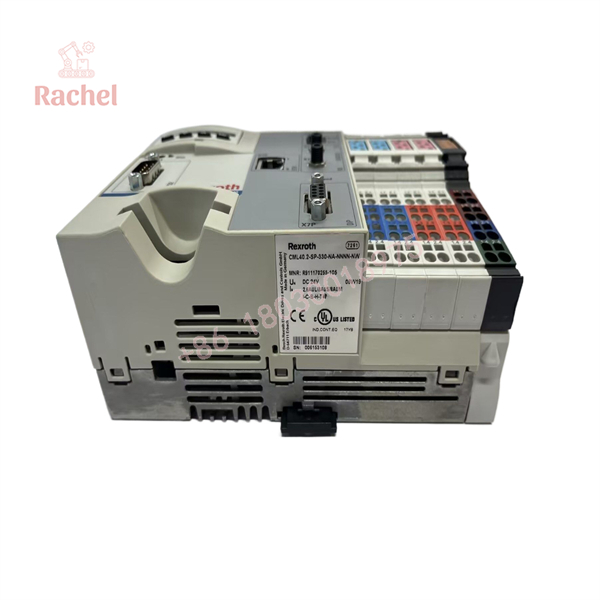

CML40.2-SP-330-NA-NNNN-NW

Transparency SOP: QA & Testing

1. Backplane Pin Audit: Inspect gold-plated interface pins and rear connection headers under high optical magnification for oxidation or bending.
2. Cold Power Rail Resistance Check: Measure baseline impedance across 24 VDC power input terminals using a calibrated digital multimeter to ensure zero internal shorts.
3. Firmware & Boot Verification: Power the unit on a dedicated test bench to verify successful operating system boot sequences and LCD status initialization.
4. Communication Port Stress Test: Ping the onboard Ethernet interface and verify serial port handshaking under continuous data packet loops for 24 hours.
5. Thermal Chamber Burn-In: Operate the CPU module inside an active 45°C environmental cabinet to screen out marginal silicon and infant mortality faults.

The Veteran’s Tech Trap Guide

⚠️ PRO TIP: Always back up your project archive and verify the CompactFlash card contents before swapping out a processor unit. While the CPU hardware is directly interchangeable, failing to match firmware versions or project configuration files can trigger immediate bus error faults upon startup.

Warning: Never insert or remove control modules from a live, energized backplane rack. Doing so risks electrical arcing across sensitive bus pins, which can permanently fry the internal memory bus and adjacent I/O interface cards.

Dynamic FAQ

1. Is this Bosch Rexroth CML40.2 unit brand new or surplus? We supply certified New Surplus and fully bench-tested refurbished hardware, backed by complete historical traceability records.
2. What warranty is included with this controller? Every unit is backed by our standard 12-month replacement warranty covering structural and operational performance.
3. Does the unit come with the project software already loaded? No, controllers ship blank or with baseline firmware. You must load your specific machine project file using the IndraWorks engineering software suite.
4. Is this specific model compatible with older IndraControl L20 or L30 racks? The L40 series features specific backplane and processing requirements. Verify your exact subrack part number compatibility before installation.
5. How is project memory retained during power outages? Application logic and parameters are stored on non-volatile flash media and backed up by internal battery power to prevent data loss.
