Core Product Summary
The Bosch Rexroth Indramat DKC02.3-100-7-FW is a high-performance digital AC servo drive controller belonging to the EcoDrive 03 product family. Engineered for demanding multi-axis and single-axis industrial automation tasks, it provides precise closed-loop control over speed, torque, and positioning for brushless AC synchronous servo motors.
The unit features a robust 100 A rated current output capacity and operates on a nominal 700 V DC-bus architecture, providing high dynamic response and torque delivery for heavy automated machinery such as packaging lines, handling systems, and transfer machinery. Integration into control loops is handled via a high-speed real-time SERCOS interface utilizing fiber optic connections.
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Digital AC Servo Drive Controller |
| Product Family | Rexroth EcoDrive 03 (DKC02.3) |
| Rated Current | 100 A |
| DC-Bus Nominal Voltage | 700 V DC |
| Output Phases | 3-phase output |
| Control Interface | SERCOS interface (fiber optic ring communication) |
| Rated Control Voltage Input | 24 V DC |
| Enclosure Rating | IP20 |
| Ambient Operating Temperature | 0 °C to +45 °C (nominal) |
| Dimensions (W × H × D) | 105 mm × 360 mm × 261 mm |
| Approximate Weight | 9.7 kg (21.01 lbs) |
Detailed Product Overview
The Rexroth DKC02.3-100-7-FW acts as an intelligent processing node in high-precision motion control applications. By executing real-time current, velocity, and position control loops internally, the drive reduces computational overhead on the main machine controller while maintaining tight trajectory tracking and minimal settling times.
Communication with the master control architecture relies on the SERCOS interface standard, utilizing noise-immune fiber optic loops to transmit deterministic data across complex multi-axis setups. The 700 V DC-bus architecture allows rapid voltage scaling during high-acceleration transients, making it well-suited for heavy handling and high-inertia mechanical loads.
Housed in a compact panel-mount chassis, the unit integrates diagnostic display indicators and works alongside software configuration tools for parameter setup, gain tuning, and fault analysis.

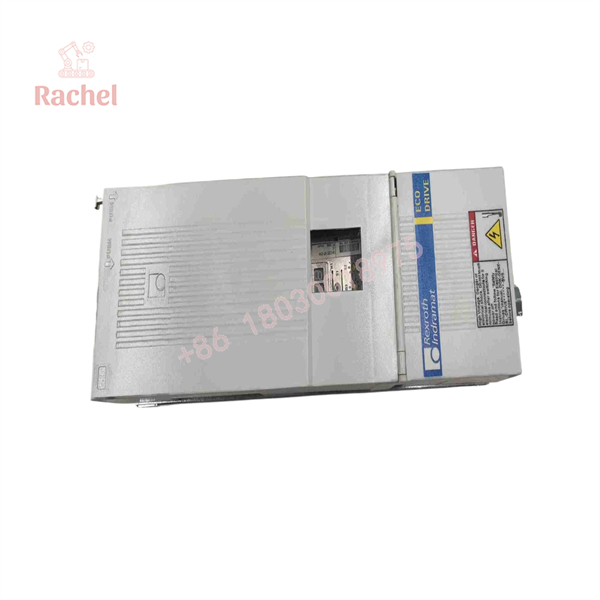

DKC02.3-100-7-FW

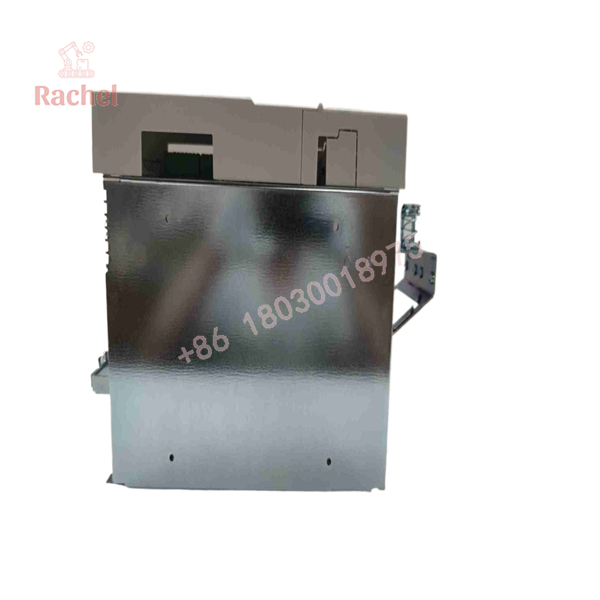

DKC02.3-100-7-FW
System Compatibility & Integration Requirements
| Item / Dependency | Verified Compatibility or Requirement | Practical Note |
|---|---|---|
| Control Architecture | SERCOS interface ring network via fiber optic cables | Master controller must support SERCOS communication loops. |
| Power Distribution | 700 V DC intermediate circuit bus connection | Requires a compatible power supply module or common DC-bus configuration. |
| Control Power | 24 V DC external control voltage supply | Necessary to power internal logic and microprocessor boards independently of the main bus. |
| Cabinet Installation | Vertical panel mounting inside IP54 or better switchgear enclosures | Requires clearance space above and below the chassis for effective thermal management. |
Dimensions, Mounting & Connection Notes
- Physical Dimensions: Width: 105 mm, Height: 360 mm, Depth: 261 mm.
- Weight: Approximately 9.7 kg (21 lbs).
- Mounting Orientation: Designed for vertical installation on a grounded mounting plate inside an electrical cabinet.
- Connections: Features plug-in power terminals, motor leads, feedback connections, 24V logic inputs, and dual fiber-optic ports for SERCOS ring wiring.
- Thermal Management: Relies on natural convection or cabinet cooling systems; operational limits require ambient temperatures to stay below 45 °C to avoid derating.
FAQ
What is the primary function of the Rexroth DKC02.3-100-7-FW?
The DKC02.3-100-7-FW is an intelligent digital AC servo drive controller from the EcoDrive series used to regulate high-power brushless servo motors in industrial automation environments.
What is the current and voltage rating of this drive?
It is rated for an output current of 100 A and operates on a nominal 700 V DC-bus voltage system.
How does the drive communicate with the main controller?
It utilizes a high-speed real-time SERCOS interface connected via fiber optic cables in a closed communication loop.
What supply voltage is required for the internal logic?
The drive requires an auxiliary 24 V DC input to power its internal microprocessor and control logic circuits.
What operating temperature range is specified for the unit?
The drive is rated for standard industrial cabinet environments with an ambient operating temperature range of 0 °C to +45 °C.
