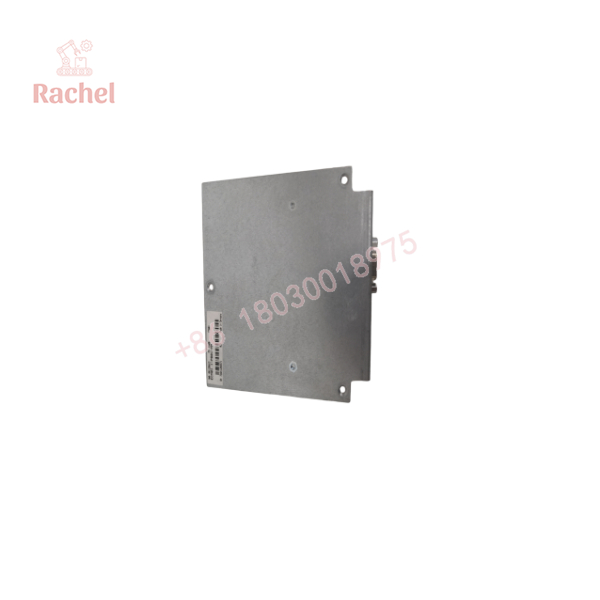

Bosch Rexroth R911276719 HDS03.2-W075N-HS12-01-FW Servo Drive

Description

Product Introduction

The Bosch Rexroth R911276719 (part designation HDS03.2-W075N-HS12-01-FW) is a 75-amp modular AC drive controller belonging to the proven DIAX04 automation platform. Designed to operate alongside centralized power supply modules (such as the HVR or HDK lines), this drive provides high-precision motion, speed, and position loop processing for demanding multi-axis machinery using Indramat MKD, MHD, or 2AD motors.

Unlike integrated stand-alone drives, the HDS03.2 modular footprint connects directly to a shared DC bus rail, dramatically reducing cabinet space and overall heat dissipation. It features customizable option card slots that accept SERCOS interface cards, command communications, and encoder feedback modules, giving plant engineers high-speed control without redesigning cabinet layouts.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

It’s 2:45 AM on a multi-axis CNC gantry line. The X-axis drive drops offline with an unrecoverable power stage error (F878 or F860 overcurrent trip). The main line halts immediately, backing up upstream stamping operations. Sourcing a complete modern drive upgrade means replacing the controller firmware, safety circuits, and motor power cables across five linked axes. You need an exact R911276719 / HDS03.2-W075N-HS12-01-FW module on site, flashed with your original software card, dropped into the rack, and running before the first production shift hits the floor.

• Automotive Stamping & Body Transfer – Drives high-dynamics transfer shuttles and robotic positioners using MHD/MKD servo motors.
• Printing & Converting Machinery – Manages web tension and precise print cylinder registration over SERCOS optical bus connections.
• Machine Tool & CNC Gantry Axes – Controls heavy-duty spindle and feed drives requiring high intermittent peak torque for deep cutting passes.

Field Case Study:

An automotive tier-1 supplier in Michigan experienced a thermal drive breakdown on an HDS03.2-W075N unit powering a 3D laser cutting head. The internal cooling blower died, destroying the IGBT power module. Because the cell ran legacy DIAX04 SERCOS interfaces, lead times for an OEM system migration exceeded 6 weeks. We delivered a verified surplus R911276719 unit overnight. The site technician swapped the front configuration software module (firmware card), bolted the drive onto the DC bus bar, and brought the laser cell back to 100% capacity within 4 hours.

Transparency SOP: Quality Assurance & Testing

We don’t just ship boxes; we test them on actual Indramat DIAX04 test benches.

1. Inbound Physical Inspection: Thorough inspection of the internal DC bus bars, ribbon cable paths, board traces, and cooling fan bearings for signs of stress or thermal breakdown.
2. DC Bus Charging & Relay Check: Unit is mounted on a live DIAX04 rack with an HVR power supply to verify pre-charge relay timing, internal DC capacitor health, and diagnostic display readouts.
3. Dyno Servo Loop Test: Linked to a matching Indramat MKD/MHD servo motor to run rapid acceleration, deceleration, and torque-holding profiles at rated 75A peak capabilities.
4. Firmware & Command Slot Verification: Testing the software plug-in card slot and option card communication slots (SERCOS optical transceiver checks) to confirm zero data dropouts.
5. Anti-Static & Heavy Packaging: ESD clearing, double-wrapped anti-static protection, and custom high-density foam packaging to prevent transit damage to chassis heatsinks.

R911276719 HDS03.2-W075N-HS12-01-FW

The Veteran’s Tech Trap Guide

⚠️ SWAP YOUR SOFTWARE MODULE (Firmware Card):

Do not power up the replacement drive without transferring your original plug-in Software Module (the green configuration card on the front panel) from the dead drive to the new one. The drive hardware itself carries no parameter memory; all motor parameters, tuning gains, and bus addresses reside on that card.

❗ Observe the DC Bus Residual Voltage Warning:

Never touch the top DC bus bars or attempt to unbolt the HDS drive immediately after turning off main power. The central bus capacitors hold 300 VDC+ for several minutes. Always verify with a multimeter that the bus voltage has dropped below 50 VDC before putting a wrench to the terminal screws.

⚠️ Check the Internal Fan Blower Clearance:

The “W075N” suffix indicates an internal forced-air fan cooling configuration. If you operate this drive inside an enclosure without clean airflow or allow dust to clog the lower heatsink, the unit will overheat and throw an F219 or F220 thermal fault within minutes under load.

❗ Keep Optical Fiber Bends Generous:

If your HDS card utilizes a SERCOS optical interface card, avoid tight zip-ties or sharp bends on the fiber optic cables. Crinkling the fiber line induces signal attenuation, causing mysterious F208 UL (User Line) bus faults that are a nightmare to trace.

Frequently Asked Questions

Q: What is the relation between part number R911276719 and type code HDS03.2-W075N-HS12-01-FW?

A: R911276719 is the exact Bosch Rexroth 10-digit ordering part number, while HDS03.2-W075N-HS12-01-FW is the structural type code describing the frame size, cooling configuration (75A air-cooled), and hardware generation. Both identify the identical module.

Q: Can I replace an HDS03.2-W075N drive with an HDS02.2 or HDS04.2 drive?

A: No. The “03.2” frame size and “075” (75-amp) current rating dictate both the physical mechanical mounting footprint on the DIAX04 backplane and the peak output current capability. Swapping to a different frame size will prevent the bus bar connectors from aligning correctly.

Q: Is the firmware included with this replacement drive?

A: Replacement hardware modules are shipped as standard drive power sections. You typically transfer your existing front-panel Software Module (contain parameter maps and firmware) directly into the new unit for seamless, zero-programming plug-and-play operation.

Q: Can this drive be hot-swapped while the main 3-phase line is active?

A: Absolutely not. Disconnecting an HDS drive from a live 300V DC bus bar will cause severe electrical arcing, destroying the bus contacts and presenting a severe safety hazard to personnel. Always disconnect power to the main power supply module first.

Q: Why choose new surplus stock over a complete system retrofit?

A: Upgrading a legacy DIAX04 system to modern Rexroth IndraDrive or ctrlX architectures requires changing PLC communication drivers, replacing motor cables, and updating validated machine code. Purchasing a new surplus R911276719 drive restores production instantly with zero software re-engineering or mechanical cabinet work.
