Product Introduction
To be honest, the Kollmorgen AKM33E-ANCNR-00 is a premier choice for high-dynamic motion applications. This brushless synchronous servo motor combines compact frame geometry with high power density, making it ideal for precision robotics, packaging machinery, and automated material handling systems where rapid acceleration and precise settling are non-negotiable.
Engineered with advanced magnetic design, it minimizes cogging torque and thermal drift compared to standard commercial motors. In our field experience, matching the exact feedback type and winding code during a drop-in replacement ensures seamless integration with drives like the AKD without requiring complete tuning overhauls in WorkBench.
Key Technical Specifications
| Parameter | Value |
| Motor Series | AKM (Synchronous Brushless Servo Motor) |
| Frame Size | Size 3 (70 mm flange) |
| Stack Length | Stack 3 |
| Feedback Device | Smart Feedback Device (SFD) |
| Shaft Type | Plain Shaft (No Keyway) |
| Holding Brake | Without Brake (-00 standard suffix variant) |
| Rated Voltage | 230 / 400 VAC (Drive Dependent) |
| Insulation Class | Class F (155°C) |
| Enclosure Rating | IP65 (Standard) |
| Ambient Operating Temperature | 0°C to +40°C |
Application Scenarios & The “Trench” Experience
Picture this: A high-speed pick-and-place gantry line faults mid-shift due to thermal overload and bearing seizure on a legacy axis motor. Production is completely stalled, costing thousands of dollars per minute in lost throughput. Maintenance needs a direct drop-in replacement that bolts right up to the existing mechanical bracket and matches the feedback cable pinout instantly, avoiding hours of rewiring and optical alignment.
- Electronics Manufacturing – Surface Mount Technology: Driving high-precision placement heads requiring minimal inertia and ultra-fast settling times.
- Packaging – Rotary Knife & Cut-to-Length: Providing continuous high torque loops with strict synchronization over multi-axis motion controllers.
- Medical Device Assembly – Automated Dispensing: Executing micro-stepping dispensing paths with zero backlash and high repeatability.

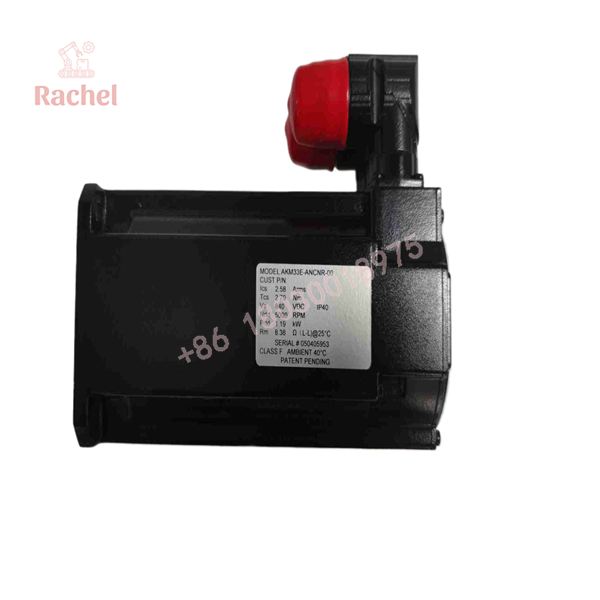

AKM33E-ANCNR-00

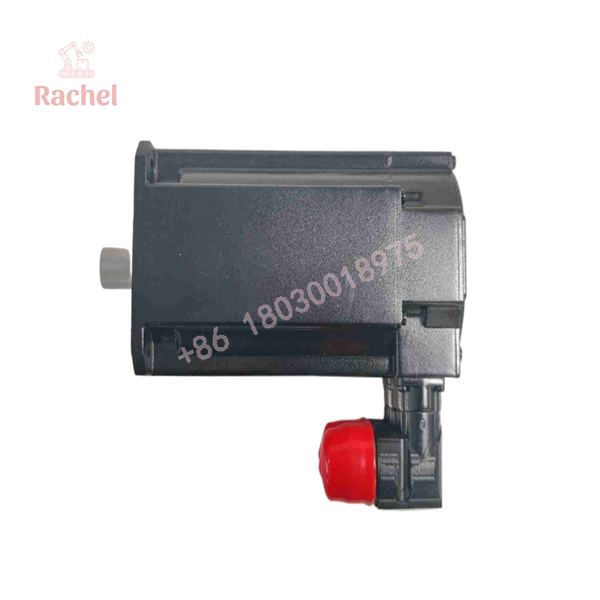

AKM33E-ANCNR-00
Transparency SOP: Quality Assurance & Testing
We don’t just ship boxes; we test them on actual Kollmorgen test benches. Every unit goes through a strict verification protocol:
- Inbound Inspection: Visual check for shaft runout, housing integrity, and anti-counterfeit OEM label verification.
- Live Rig Testing: Spin test coupled with an AKD drive to verify feedback communication (SFD) and smooth commutation across low and high RPM ranges.
- Electrical Parameter Checks: Insulation resistance (Megger) testing of winding-to-housing and phase-to-phase resistance balance.
- Thermal Baseline Check: Verifying bearing smoothness and thermal stability under no-load operation.
- Final QC & Anti-static Packaging: Sealed in heavy-duty cushioning material with protective shaft caps.
The Veteran’s Tech Trap Guide (Crucial Value-Add)
⚠️ Keyway vs. Plain Shaft Coupling: Ensure your shaft-mounted pulley or coupling is rated for a plain shaft (-N option). Clamping hubs require exact torque specs; under-tightening leads to slip under rapid acceleration, while over-tightening can crack the rotor sleeve.
❗ Feedback Cable Shield Grounding: Always ensure the SFD feedback cable shield is 360-degree clamped at both the motor connector and drive end. Ground loops or unshielded braids will inject high-frequency noise directly into the feedback loop, triggering sudden drive faults.
⚠️ Environmental Sealing: If installing in a washdown or oily environment, verify that the connector O-rings are intact and seated properly. Standard IP65 connectors will fail prematurely if subjected to direct high-pressure fluid jets without auxiliary protection.
Frequently Asked Questions (FAQ for Conversion)
Q: Is this motor compatible with non-Kollmorgen drives?
A: Mechanically yes, provided the flange and shaft match your mechanical design. However, the Smart Feedback Device (SFD) protocol is native to Kollmorgen drives (like the AKD series). Operating it with a third-party drive requires a compatible multi-turn/absolute encoder breakout or specialized feedback converter.
Q: Does this come with a warranty?
A: Yes. Every surplus and refurbished unit includes a standard 12-month replacement warranty.
Q: Why is this priced lower than direct OEM channels?
A: We source surplus, overstock, and factory-sealed industrial hardware from plant liquidations and excess inventory channels, passing the savings on lead time and cost directly to maintenance teams.
Q: Does the “-00” suffix indicate a holding brake?
A: No. The “-00” standard configuration designates a motor supplied without an integrated holding brake. If your vertical axis requires a holding brake, ensure your mechanical design incorporates an external brake mechanism.
