Kollmorgen CB06560 PRD-B040SAIB-62 SERVOSTAR CD Servo Drive

Description

Product Introduction

The Kollmorgen CB06560 (part number PRD-B040SAIB-62) is a compact, high-performance single-axis digital servo amplifier from the legacy SERVOSTAR CD family. Built for demanding industrial motion control applications, this unit drives brushless AC servo motors requiring high dynamic responsiveness and precise closed-loop speed and position execution.

Unlike generic inverter drives, the PRD-B040SAIB-62 features an integrated high-speed DSP execution engine paired with a resolver feedback interface. With a fast 62.5 µs current loop update time, it eliminates torque ripple and stabilizes position holding even under sudden mechanical load changes on high-speed automation lines.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

It’s 2:15 AM on a Tuesday, and the main indexer on a high-speed bottling line throws a drive fault error. The original Kollmorgen SERVOSTAR CD drive on Axis 2 has blown an internal IGBT power stage due to a localized line spike. The line halts, downstream packaging backs up, and every minute costs hundreds of dollars in lost throughput. On legacy machinery running older resolver-based motors, trying to retrofit a brand-new modern drive platform means days of rewiring, panel layout changes, and software re-engineering.

Specific Applications:

• High-Speed Packaging: Indexing belts, cartoning machines, and rotary cutters where resolver durability handles continuous high vibration.
• CNC & Metalworking Auxiliary Axes: Precision slide positioning and tool turrets requiring tight torque loops.
• Material Handling & Robotics: Pick-and-place gantry axes utilizing legacy Kollmorgen Goldline or BHK series AC servo motors.

Field Case Study:

An automotive parts stamping plant suffered a catastrophic drive failure on a critical feed roll driven by a PRD-B040SAIB-62 unit. The OEM quoted a full cabinet panel upgrade with a 6-week lead time. Instead, field engineers swapped in a pre-tested surplus CB06560 drive, uploaded the saved motion parameter file via MotionLink software, verified resolver offset angle, and had the stamping line back in full production in under 90 minutes.

Transparency SOP: Quality Assurance & Testing

We don’t just ship boxes; we test them on actual Kollmorgen motor rigs. Here is our direct bench testing workflow for the SERVOSTAR CD line:

1. Inbound & Housing Inspection: Physical check of terminal blocks, power connections, cooling fins, and chassis integrity. Serial labels and firmware revs logged.
2. DC Bus & Power Stage Diode Check: Megger and meter checks across the input rectifier diodes and output IGBT bridge to confirm no shorted phases before applying AC power.
3. Control Board Power-On: 24VDC control supply applied to verify boot sequence, internal self-diagnostics, and 7-segment status LED readout display.
4. Closed-Loop Resolver Motor Test: Drive connected to a physical Kollmorgen resolver-equipped servo motor. MotionLink software verifies real-time current loop response, resolver feedback counting, and smooth torque delivery across full speed ranges.
5. Final QC & Anti-Static Packing: Drive parameters restored to factory default (or customer baseline), terminals torqued, and unit sealed in heavy-duty ESD shielding bags with foam cushioning.

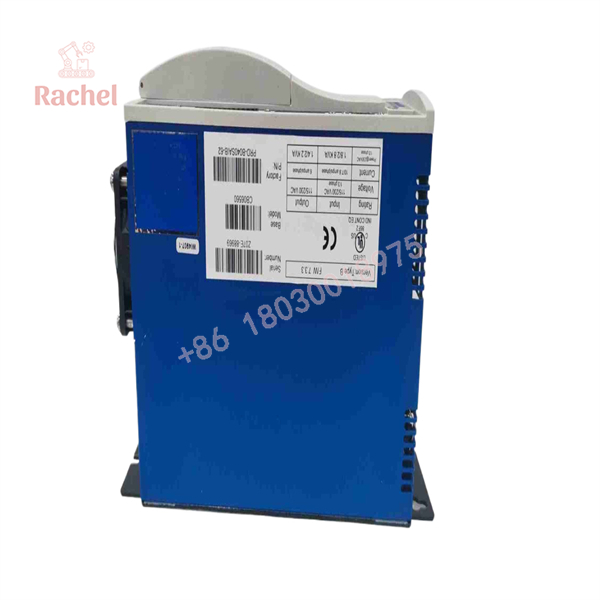

CB06560 PRD-B040SAIB-62

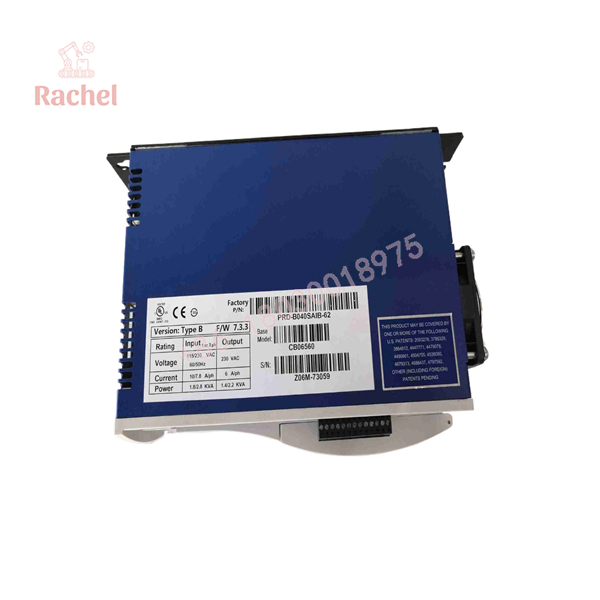

CB06560 PRD-B040SAIB-62

The Veteran’s Tech Trap Guide

⚠️ Back Up Your Parameter File (.PARAM) First!

Never drop a replacement PRD-B040SAIB-62 drive into a system without downloading the configuration from the old unit via MotionLink—or pulling it from your plant archives. If you wire up a fresh surplus drive with factory defaults, the motor will either sit dead or jump violently due to incorrect feedback gains and pole-pair counts.

❗ Resolver Offset / Phasing Alignment Matters!

If you replace both the drive and motor (or re-zero the motor feedback), verify the resolver commutation angle alignment. A misaligned resolver offset angle causes immediate overcurrent faults (F01 / F02) or causes the motor to run away out of control upon enabling the drive.

⚠️ Check Cable Shielding & Separation Rules!

SERVOSTAR CD drives are sensitive to high-frequency noise induced from adjacent motor power lines. Keep motor power lines and resolver feedback wiring separated by at least 8 inches (20 cm) in the panel wire duct. Ensure 360-degree shield grounding at the drive ground bus—a floating resolver shield will cause sporadic feedback loss faults.

Frequently Asked Questions (FAQ)

Q: Is the Kollmorgen PRD-B040SAIB-62 hot-swappable?

A: Absolutely not. Pulling power or control cables while the 230VAC mains or DC bus is energized will arc out the terminal pin headers and permanently damage the drive’s internal control board. Always isolate main power and wait for the DC bus capacitors to fully discharge before servicing.

Q: Can I use an encoder-feedback motor with this specific drive model?

A: No. The “SA” in the PRD-B040SAIB code specifies a factory resolver feedback interface board. If your motor uses a quadrature encoder or absolute EnDat/Hiperface feedback, you will require a different variant from the SERVOSTAR series.

Q: How do I load configuration parameters into the replacement drive?

A: Connect a PC to the front RS-232 serial commissioning port using a standard null-modem cable and run Kollmorgen MotionLink software. From there, you can perform a direct parameter upload/download.

Q: Why buy a surplus CB06560 instead of upgrading to a current Kollmorgen AKD series drive?

A: Migrating to an AKD drive requires updating motor feedback cables, rewriting PLC motion control blocks, and redesigning panel layouts. A direct surplus swap keeps existing machinery running instantly with zero software or wiring modifications.

Q: What warranty coverage comes with this replacement unit?

A: All our pre-tested surplus and refurbished Kollmorgen drives come fully supported by a comprehensive 12-month operational replacement warranty.
