Description
Product Introduction & Engineering Value
The Kollmorgen 6SM57S-3.000-G is a compact synchronous servo motor built for applications where controlled acceleration, positioning accuracy, and repeatable motion are required. The 57 mm frame size provides a balance between installation space and torque capability for industrial machine applications.
For maintenance teams supporting older automation equipment, servo motor replacement is rarely a simple bolt-on task. The motor, amplifier, feedback device, and mechanical load must operate as a matched system. A correctly specified 6SM57S-3.000-G can help preserve existing machine performance while avoiding unnecessary control cabinet changes.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Kollmorgen |
| Model | 6SM57S-3.000-G |
| Product Family | 6SM Servo Motor |
| Motor Type | Permanent Magnet Synchronous Motor |
| Frame Size | 57 mm |
| Rated Speed | 3000 RPM |
| Feedback Option | G-series feedback |
| Shaft Type | Servo motor output shaft |
| Mounting | Industrial servo mounting flange |
| Cooling | Natural convection |
| Drive Compatibility | Kollmorgen servo amplifiers and compatible motion controllers |
| Application Type | Precision rotary motion control |
Field Application & The “Trench” Experience
A machine builder supporting a high-speed inspection system began experiencing inconsistent indexing accuracy. The servo amplifier showed occasional following-error alarms, but the drive electronics passed diagnostic checks.
The maintenance team initially adjusted tuning parameters, but the issue returned after several operating cycles. Further inspection identified mechanical wear and feedback instability associated with the aging servo motor. The existing motor was replaced with a tested Kollmorgen 6SM57S-3.000-G unit, followed by feedback verification and servo tuning.
The system returned to stable positioning without replacing the controller or redesigning the machine interface.
Typical application scenarios:
- Electronic component inspection rotary indexing tables
- CNC auxiliary positioning axes
- Automated assembly stations with repeatable motion profiles
- Material handling systems requiring controlled acceleration and braking
Transparency SOP: QA & Testing
Servo motor inventory requires inspection beyond visual condition.
Testing checklist:
☑ Model Verification
- Confirm Kollmorgen identification label.
- Verify exact part number: 6SM57S-3.000-G.
- Confirm feedback suffix.
☑ Electrical Inspection
- Measure winding resistance.
- Perform insulation resistance test.
- Check phase balance.
- Inspect feedback connector pins.
☑ Mechanical Inspection
- Check shaft rotation.
- Inspect bearings.
- Verify mounting surfaces.
- Examine seals and housing.
☑ Operational Test
- Run with compatible amplifier.
- Verify direction of rotation.
- Confirm feedback response.
- Check speed stability.

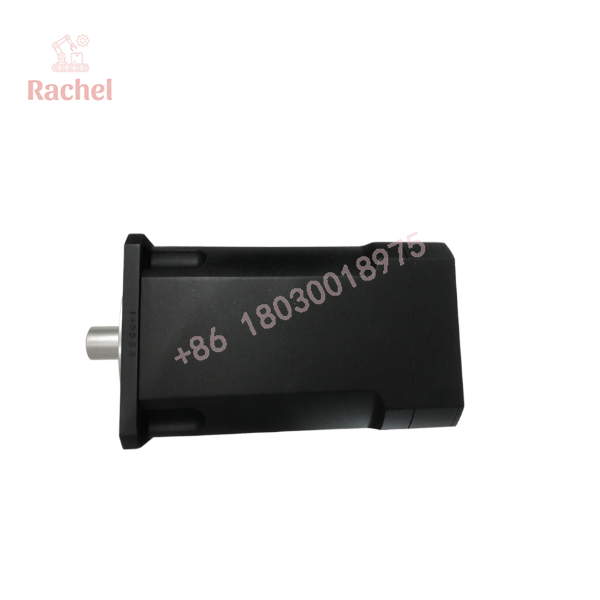

6SM57S-3.000-G

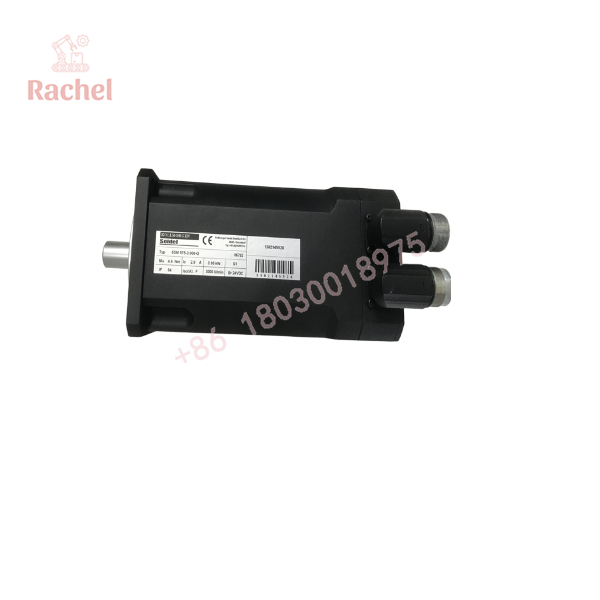

6SM57S-3.000-G
The Veteran’s Tech Trap Guide
⚠️ Trap #1: Treating Servo Motors Like Standard Induction Motors
A servo motor replacement requires matching system parameters.
Verify:
- Motor winding data
- Feedback type
- Encoder/resolver wiring
- Drive configuration
A motor that physically fits may still fail commissioning.
⚠️ Trap #2: Ignoring the Feedback Suffix
The “-G” designation is important.
PRO TIP: Confirm the complete catalog number before ordering. Similar 6SM57S motors may have different feedback configurations, requiring different drive settings or wiring.
⚠️ Trap #3: Blaming the Motor Before Checking the Mechanical Load
Following errors can come from:
- Worn couplings
- Excessive backlash
- Binding slides
- Damaged gear reducers
Always inspect the complete motion chain.
Dynamic FAQ
Q1. What is the Kollmorgen 6SM57S-3.000-G used for?
The Kollmorgen 6SM57S-3.000-G is a synchronous servo motor designed for industrial positioning and motion control applications requiring accurate speed and torque regulation.
Q2. What does 3.000 mean in the 6SM57S-3.000-G model number?
The 3.000 designation identifies the motor speed class, indicating a rated speed of approximately 3000 RPM.
Q3. Is the 6SM57S-3.000-G a complete servo drive system?
No. The motor requires a compatible servo amplifier, feedback interface, and properly configured motion controller.
Q4. Can another Kollmorgen 6SM57S motor replace this model?
Not automatically. Verify:
- Feedback option
- Torque rating
- Speed rating
- Electrical characteristics
- Mechanical dimensions
Q5. What should buyers verify before purchasing a New Surplus 6SM57S-3.000-G?
Recommended checks:
- Original Kollmorgen label
- Complete model number
- Feedback configuration
- Shaft condition
- Electrical test results
- Warranty documentation
Q6. Is refurbished 6SM57S-3.000-G suitable for critical spare inventory?
Yes, provided it has passed winding, insulation, feedback, and operational testing. For legacy automation equipment, tested servo motors are often maintained as replacement stock to reduce machine downtime.
