Description
Core Product Summary
The Lyngsoe Marine / SAM Electronics ZM 411 (also designated under Lyngsø Marine P/N 962.002.800.08 and SAM Electronics P/N 271.149.319.08) is a Central Processing Unit (CPU) module engineered for the Gamma Micro vessel control and alarm system architecture. Serving as a central computing element in marine automation frameworks, the module coordinates real-time alarm monitoring, processing logic execution, and system diagnostics.
The ZM 411 interfaces across internal cabinet backplanes to aggregate data from distributed digital, analog, and serial I/O modules. It manages serial communication channels—including RS-485 serial links—to interface with operator stations, power management systems, and machinery control desks.
Key Technical Specifications
| Technical Parameter | Specification Detail |
| System Brand / Manufacturer | Lyngsø Marine A/S / SAM Electronics |
| Model Identifier | ZM 411 / ZM411 |
| Lyngsø Marine Part Number | 962.002.800.08 (and revision variants like 962.002.800/B) |
| SAM Electronics Part Number | 271.149.319.08 (and revision variants like 271.149.319/B) |
| Automation System Family | Gamma Micro Vessel Automation Architecture |
| Module Type | Central Processing Unit / Central Processing Module |
| On-Board Communication Ports | RS-485 serial interface |
| Operating System & Firmware | System-specific Gamma Micro control software |
| Hardware Form Factor | Multi-pin plug-in rack module |
Engineering Selection Highlights
- System Platform Specificity: Engineered specifically as a central processor for Gamma Micro marine automation, requiring exact matching of hardware revision and system software versions during replacement routines.
- RS-485 Serial Integration: Features dedicated RS-485 serial communication capability to maintain synchronized data exchange across distributed machinery panels.
- Sub-Rack Backplane Interconnect: Plugs into dedicated cabinet backplane slots alongside companion I/O and communication cards (such as SIM 401, IOM 402, and REM 401).
- Vessel Classification Tolerances: Designed to satisfy marine class requirements regarding vibration, thermal stability, and continuous 24 VDC auxiliary power stability.
System Compatibility & Integration Requirements
| Item / Dependency | Verified Compatibility or Requirement | Practical Note |
| Marine System Family | Gamma Micro Marine Automation Framework | Acts as a processing element for vessel monitoring, engine room alarms, and power management. |
| Companion System Modules | SIM 401 Serial I/O, IOM 402 I/O, DEM 401 Digital I/O, and REM 401 Relay modules | Co-located within shared PMCS and alarm processing racks. |
| Network Protocol | RS-485 fieldbus interface | Connects local processing nodes to main operator consoles and bridge logging systems. |
Detailed Product Overview
The ZM 411 (Lyngsø Marine 962.002.800.08 / SAM Electronics 271.149.319.08) is a specialized central processing unit module engineered for the Gamma Micro marine control platform. Designed to meet classification society standards for commercial vessel operations, the module manages central data handling and system diagnostics across vessel monitoring suites.
Operating within sub-rack assemblies alongside modules like the SIM 401, IOM 402, and DEM 401, the ZM 411 processes input data, monitors safety limits, and coordinates real-time alarm outputs. Its integrated RS-485 interface allows multi-drop serial connection with peripheral devices and operator stations. Because the module executes system-specific software, replacing a unit requires verification of both part numbers and firmware revisions to maintain compatibility with existing shipboard configurations.

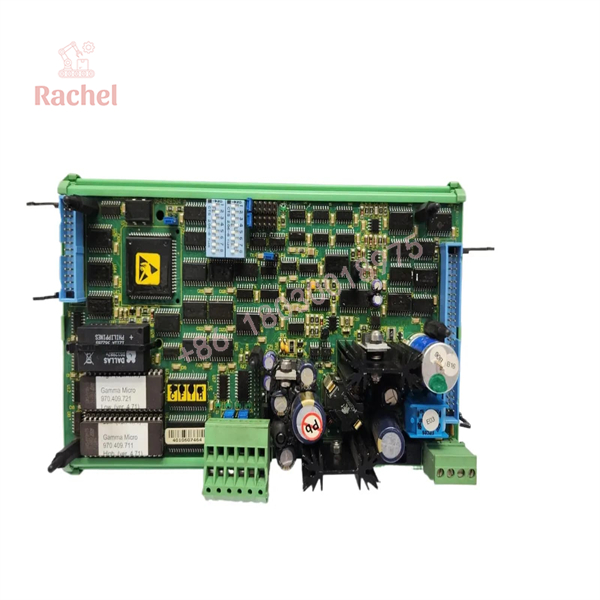

ZM 411

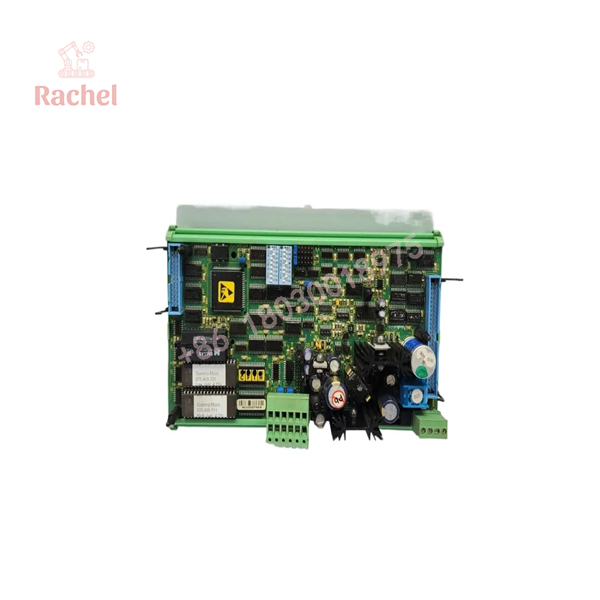

ZM 411
Dimensions, Mounting & Connection Notes
- Installation Profile: Rack-mounted module designed to slide into standard Gamma Micro sub-rack slots.
- Backplane Connections: Multi-pin edge connectors engage with the backplane to supply operating power, bus lines, and serial communication pathways.
- Enclosure Protection: Must be housed within an IP/NEMA-rated protective control cabinet or console desk.
Applications & System Role
The Lyngsoe Marine / SAM Electronics ZM 411 sits at the central computing layer of shipboard Gamma Micro automation networks. Installed in engine room control cabinets, bridge consoles, and power management racks, it processes data collected from distributed temperature, pressure, and contact sensors. The CPU evaluates system logic, logs alarm conditions, and drives local relay outputs while broadcasting status updates across the vessel’s RS-485 network.
FAQ
What is the primary function of the Lyngsoe Marine / SAM Electronics ZM 411?
The ZM 411 is a central processing module designed to run automation logic, monitor alarms, and process sensor data within Gamma Micro marine systems.
What are the main manufacturer part numbers for the ZM 411?
Key cross-reference part numbers include Lyngsø Marine P/N 962.002.800.08 and SAM Electronics P/N 271.149.319.08.
Which system architecture does the ZM 411 belong to?
It belongs to the Gamma Micro marine automation and control system architecture.
What serial communication interface does the ZM 411 support?
The module incorporates an RS-485 serial communication interface for network data exchange.
Is the ZM 411 a standard commercial PLC CPU?
No, it is a system-specific marine CPU module designed for the Gamma Micro automation platform.
