Product Introduction & Engineering Value
When troubleshooting an electronic marine engine control system, technicians often focus on sensors or actuators while overlooking the base module that links them together. A faulty interface module can create multiple alarms that appear unrelated, making diagnostics unnecessarily complicated.
The MAN 1680910-3 Base Module is designed for the MAN B&W L27/38 marine diesel engine control platform. It serves as a central interface between electronic control components, supporting signal routing and reliable communication inside the engine control cabinet. Maintaining the correct module helps minimize commissioning time and preserves compatibility with the existing control architecture.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | MAN B&W / MAN Diesel & Turbo |
| Model | 1680910-3 |
| Product Type | Base Module (BM Module) |
| Engine Platform | MAN L27/38 |
| Installation Location | Engine Control Cabinet |
| Function | Electronic Interface & Signal Distribution |
| System Type | Marine Engine Automation |
| Construction | Industrial PCB Assembly |
| Cooling | Passive |
| Mounting | Modular Cabinet Installation |
| Typical Environment | Marine Engine Room |
| Service Application | Replacement for Existing MAN L27/38 Systems |
Engineering Note: Always verify the complete module number, hardware revision, and associated engine documentation before replacement. Similar-looking MAN control modules may not be interchangeable.
Field Application & The “Trench” Experience
During scheduled maintenance aboard a coastal cargo vessel, engineers investigated intermittent communication alarms affecting several engine monitoring channels. Individual sensors tested within specification, but diagnostics indicated inconsistent signal routing through the electronic control cabinet.
Replacing the 1680910-3 Base Module restored stable communication across the control network without requiring changes to the engine management software. Following functional testing and alarm verification, the vessel completed sea trials with normal engine monitoring performance.
Typical applications include:
- MAN L27/38 propulsion engine control systems
- Marine auxiliary diesel generator automation
- Shipboard engine monitoring and alarm systems

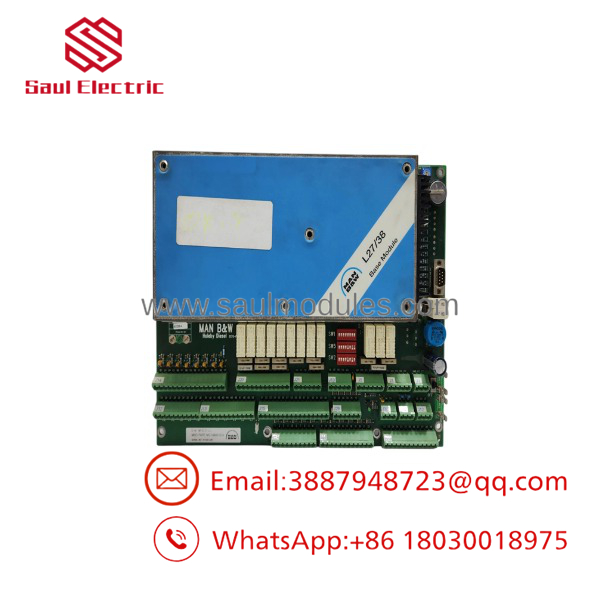

1680910-3
Transparency SOP: QA & Testing
Every 1680910-3 module is processed through a documented inspection procedure before shipment.
- ✔ Verify the MAN part number and hardware identification.
- ✔ Inspect PCB surfaces, solder joints, and connectors for corrosion or mechanical damage.
- ✔ Confirm connector continuity and interface integrity.
- ✔ Perform power-on and functional verification using compatible test equipment when available.
- ✔ Package the module in ESD-safe materials with reinforced protective packaging.
New Surplus units are inspected for storage condition and authenticity, while refurbished modules undergo functional testing before release.
The Veteran’s Tech Trap Guide
⚠️ Don’t Assume the Base Module Is the Root Cause
Communication faults can originate from damaged wiring harnesses, oxidized connectors, or unstable control power. Verify these items before replacing the module.
⚠️ Check Hardware Identification Carefully
The 1680910-3 module is used within the L27/38 engine platform. Installing an incorrect module revision can lead to communication errors or configuration mismatches.
PRO TIP:
Before removing the existing module, record all connector locations and cabinet wiring. Marine control cabinets often contain multiple identical connectors, and incorrect reconnection can significantly increase commissioning time.
Dynamic FAQ
Q1. What is the primary function of the MAN 1680910-3?
The 1680910-3 is a Base Module (BM Module) used in the MAN L27/38 electronic engine control system. It provides the interface for signal routing and communication between control system components.
Q2. Which engines use this module?
The module is associated with MAN B&W L27/38 marine diesel engine control systems. Always verify the engine configuration and control cabinet documentation before ordering.
Q3. Can the 1680910-3 be replaced with another base module?
Not automatically. Confirm the exact part number, hardware revision, and engine control configuration to ensure compatibility.
Q4. Is the module available as New Surplus or Refurbished?
Depending on inventory, suppliers may offer both New Surplus and professionally refurbished units. Each module should be inspected and tested before shipment.
Q5. What should be checked before replacing the module?
Inspect the control power supply, cabinet wiring, communication connectors, and diagnostic logs. Many apparent module failures are caused by external wiring or connector issues rather than the module itself.
Q6. Does the module include a warranty?
Most industrial and marine automation suppliers provide warranty coverage for both New Surplus and refurbished 1680910-3 modules. Warranty terms depend on the product condition and supplier policy.
