Metso A413162 AIU41 Analog Input Module

Description

Product Introduction & Engineering Value

A413162 is an older Metso/Valmet analog I/O component used to bring field-level analog measurements into the automation system. The strongest available evidence identifies it as the AIU41 and as a four-channel analog input card.

That distinction is important when sourcing a replacement. Several current aftermarket pages attach conflicting technical descriptions to A413162, including communication-card and process-control claims. Those descriptions are not consistent with the AIU41 identification found across independent equipment listings. For engineering procurement, the A413162 / AIU41 identity should take precedence, while exact signal ranges should be confirmed from the installed system documentation.

Technical Specifications

Radwell currently lists METSO AUTOMATION VALMET A413162 as a discontinued manufacturer card module and identifies it specifically as AIU41. A separate marine-industrial parts catalog identifies VALMET Automation AIU-41-A413162 as an analog input unit.

Signal specification caution

The available public evidence supports the four-channel analog-input function, but I would not publish a universal input range such as 4–20 mA, 0–10 V, or a particular accuracy figure as an OEM specification without the applicable Metso/Valmet technical manual.

One supplier describes the A413162 as a four-channel module capable of accepting voltage and current signals, but this is supplier-provided information rather than an OEM datasheet.

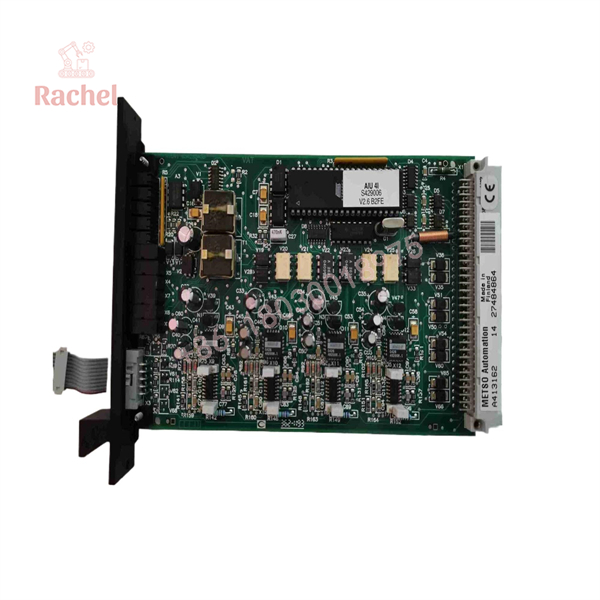

A413162

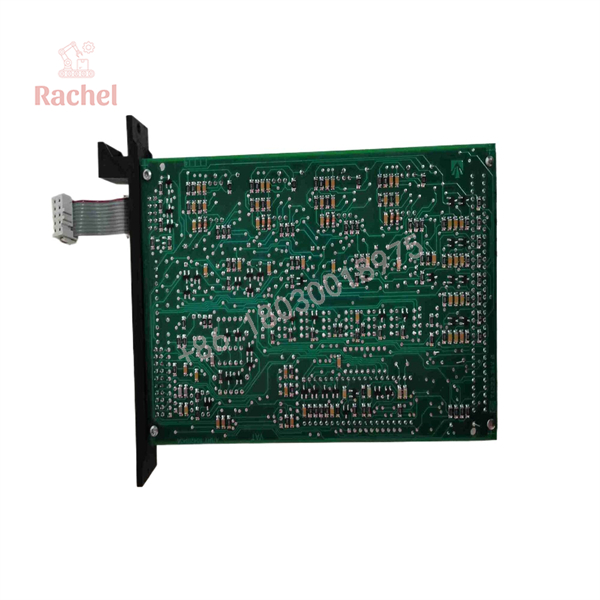

A413162

Field Application & the “Trench” Experience

Consider a legacy Valmet process-control cabinet where one group of transmitter signals suddenly disappears from the operator interface. The field transmitter checks out. Loop wiring checks out. The problem follows the I/O position rather than the instrument.

This is the type of maintenance situation where an AIU41 spare becomes useful. Instead of replacing an entire legacy I/O subsystem, the maintenance team can investigate the individual analog-input card and compare the failed unit against a verified spare.

The critical step is identification. The technician should record A413162, AIU41, board revision, connector arrangement, and the host-system configuration before ordering. An aftermarket listing may show the base part number while omitting revision information.

Specific application scenarios

• Pulp and paper process instrumentation — acquisition of analog measurements in legacy Valmet automation installations.
• Chemical-process DCS loops — interface between field transmitters and older Metso/Valmet control hardware.
• Process-control cabinet maintenance — replacement of an individual analog-input PCB without redesigning the complete I/O architecture.
• Legacy spare-parts inventory — maintaining an AIU41 spare where the installed DCS remains operational.

Historical equipment listings also associate A413162 directly with Metso Automation AIU41, providing additional evidence for the module designation.

Transparency SOP: QA & Testing

For New Surplus or refurbished A413162 stock, a visual inspection alone is not enough.

1. Identity check — confirm the PCB is marked and, where present, .
2. Revision check — photograph and record all revision markings.
3. Connector inspection — examine the backplane/field connectors for bent contacts, oxidation, contamination, or mechanical damage.
4. PCB inspection — check capacitors, ICs, solder joints, traces, and signs of previous repair.
5. Power-up verification — test in an appropriate Metso/Valmet environment where available.
6. Channel verification — apply known test signals to all four analog channels when suitable test equipment is available.
7. System-level check — verify that the host DCS recognizes and correctly processes the input values.
8. Documentation — retain photographs and test results with the supplied spare.

This level of testing is particularly relevant because current aftermarket references identify the A413162 as discontinued, making verified surplus and refurbished inventory important sources for brownfield maintenance.

The Veteran’s Tech Trap Guide

⚠️ Do not confuse A413162 with an Ethernet or communication card.

One recent aftermarket page incorrectly describes A413162 as an industrial Ethernet communication card with redundant power and ring topology. That conflicts with multiple independent references identifying the part as AIU41 / analog input. Do not use such claims for system design or replacement engineering.

⚠️ Four analog inputs does not automatically tell you the signal type.

Do not assume that every A413162 installation is configured for the same transmitter type. Confirm the original system drawings, I/O database, termination arrangement, and applicable Metso documentation before applying a field signal.

PRO TIP: Photograph the original board before removing it. Capture the A413162 label, AIU41 marking, revision, connector side, and rack position. For obsolete Metso hardware, these details can prevent an expensive wrong-part shipment.

⚠️ Watch for contradictory marketplace specifications.

Another supplier page describes A413162 as a process-control module and publishes specifications such as 24 VDC and 4–20 mA/0–10 V inputs, but also mixes unrelated descriptions in the same listing. Those figures should therefore be treated as unverified supplier claims, not authoritative OEM specifications.

Dynamic FAQ

1. What is the Metso A413162?

The A413162 is identified as a Metso Automation / Valmet AIU41 analog input card. Independent equipment references identify it as an analog input unit rather than a communication or processor module.

2. How many inputs does A413162 have?

Available references identify the AIU41/A413162 as a four-channel analog input module.

3. Is A413162 the same as AIU41?

Yes. The available equipment listings explicitly associate A413162 with AIU41 / AIU-41.

4. Is A413162 still manufactured?

Radwell currently lists the Metso Automation/Valmet A413162 as discontinued by the manufacturer. This makes new-surplus and refurbished inventory relevant for maintaining existing installations.

5. Can I replace an A413162 with any four-channel analog input card?

No. Channel count alone is not sufficient. The replacement needs to match the Metso/Valmet system architecture, electrical interface, signal configuration, physical interface, and applicable hardware revision.

6. Should the input range be confirmed before purchase?

Yes. Public aftermarket information is inconsistent on detailed electrical specifications. Confirm the actual input type and range from the customer’s installed documentation rather than relying on a generic online listing.

7. Is New Surplus A413162 factory-new?

“New Surplus” generally describes unused inventory rather than proving that the unit is current-production OEM stock. Before purchase, verify the exact A413162/AIU41 marking, condition, revision, photographs, testing, and warranty terms.

8. What warranty should be offered for a refurbished A413162?

The warranty is supplier-specific. For refurbished stock, the purchasing specification should state the warranty period and what the warranty covers. It is also useful to request a functional test record covering the available analog-input channels.
