Description
Core Product Summary (Brand / Model / Key Attributes)
The Metso D201139L (also referenced as DDC7940-D201139L) is a power supply module designed for Metso Automation control systems. It provides regulated DC power to system components within Metso DNA or related automation platforms.
The module is identified by the full order designation D201139L or the extended form DDC7940-D201139L and is intended for permanent installation in industrial control cabinets.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Product type | Power supply module |
| Manufacturer | Metso |
| Model / Order code | (DDC7940-) |
| System family | Metso Automation / DNA platform |
| Function | DC power supply for control system components |
Detailed Product Overview
The Metso D201139L is a dedicated power supply module used within Metso Automation systems. It converts incoming AC mains power into the regulated DC voltage required by control electronics, I/O assemblies, and related system modules.
The unit is commonly listed under the dual designation D201139L and DDC7940-D201139L. It is designed for fixed mounting in industrial control cabinets and forms part of the power distribution infrastructure of Metso DNA or earlier Damatic-based automation platforms.
Because the module supplies critical system power, correct upstream protection, proper grounding, and adequate ventilation must be observed according to the host system documentation. The module itself contains no fieldbus or communication interfaces; its sole function is AC-to-DC power conversion for the control system.
Replacement requires confirmation that the exact order code matches the installed unit, as different power supply variants exist within the Metso product range.

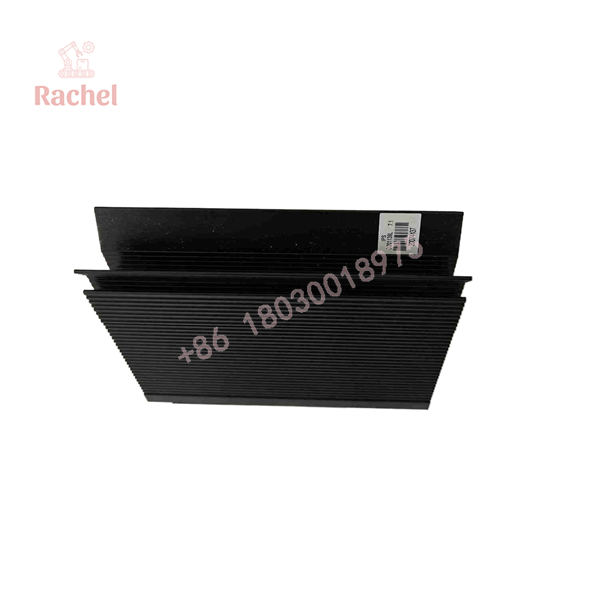

D201139L

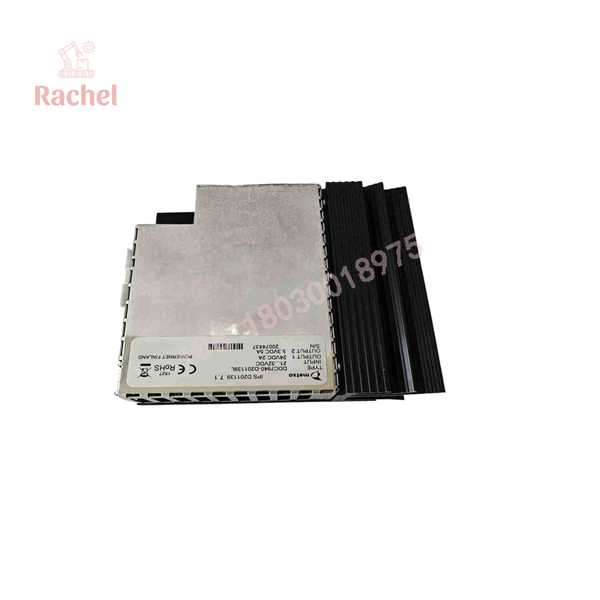

D201139L
System Compatibility & Integration Requirements
| Item / Dependency | Verified Compatibility or Requirement | Practical Note |
|---|---|---|
| Control system | Metso Automation / DNA platform | System-specific power module |
| Installation | Control cabinet | Follow host system mechanical and thermal guidelines |
| Identification | or | Confirm exact marking on nameplate |
Dimensions, Mounting & Connection Notes
The D201139L is a chassis- or panel-mounted power supply module intended for installation inside an industrial control cabinet. Input and output connections follow the terminal arrangement defined for the DDC7940 series. Adequate clearance for ventilation and correct upstream protection must be maintained according to the host system documentation.
Engineering Selection Highlights
- Provides regulated DC power for Metso Automation control system components.
- Identified by the od.
- Intended for permanent installation in industrial control cabinets.
- Direct replacement part for matching Metso system power supply positions.
- Must be selected according to the exact system power architecture and load requirements.
FAQ
What is the Metso D201139L?
It is a power supply module used in Metso Automation control systems, also identified as DDC7940-D201139L.
What is its primary function?
It converts AC mains power into regulated DC power for system electronics and I/O modules.
Which systems does it support?
Metso Automation / DNA platform control systems.
Is the full order code important?
Yes. Confirm the marking matches D201139L or DDC7940-D201139L before replacement.
Does the module include communication interfaces?
No. It is a pure power conversion component.
Verification & Troubleshooting Notes
- Verify the nameplate mara.
- Confirm the available mains voltage and upstream protection devices match the system design.
- After installation, measure the DC output under load to confirm correct operation.
- Ensure adequate ventilation around the module in accordance with the host system guidelines.
- Follow Metso system procedures for safe isolation and reconnection of power supplies.
