Description
Core Product Summary
The Metso D201190 (designated as the AO4H module) is a high-performance 4-channel analog output unit engineered for integration within Metso DNA and Valmet distributed control system (DCS) platforms. It provides precise conversion of digital controller signals into accurate analog current outputs, serving critical control loops that manage actuators, control valves, and variable-speed drives in industrial processing environments.
Equipped with integrated HART communication capabilities, the module allows bi-directional digital communication over standard 4–20 mA analog loops, facilitating remote device configuration, calibration, and diagnostics. Its robust electronic layout includes channel isolation, fault-detection monitoring, and short-circuit protection to ensure high availability and stability in continuous-duty applications such as power generation, chemical processing, and pulp and paper manufacturing.
Key Technical Specifications
| Parameter | Specification Details |
| Manufacturer | Metso / Valmet |
| Model / Part Number | D201190 (AO4H / D201190L) |
| Product Type | 4-Channel HART Analog Output Module |
| System Compatibility | Metso DNA / Valmet ACN I/O Architecture |
| Number of Channels | 4 high-precision analog outputs |
| Output Signal Range | 4–20 mA current loop with HART protocol support |
| Resolution / Accuracy | High-resolution 16-bit class conversion for critical loops |
| Diagnostic Features | Open-loop detection, output status monitoring, and short-circuit protection |
| Enclosure / Mounting | Modular rack-based installation for standard I/O chassis backplanes |
Detailed Product Overview
The Metso D201190 AO4H module acts as a critical link between central automation controllers and final control elements on the plant floor. By translating controller commands into precise 4–20 mA analog outputs, it regulates physical variables such as valve position, fluid flow, pressure, and temperature.
The inclusion of HART protocol compatibility enhances operational efficiency by superimposing digital diagnostic data onto the analog signal wire, enabling operators to review field device health parameters without interrupting process control loops. The hardware architecture incorporates strict channel-to-system isolation to mitigate ground loops and electromagnetic interference (EMI) typical in heavy industrial plant settings. Front-connection layouts align with standard Metso I/O node configurations, enabling straightforward physical replacement and minimal mean time to repair (MTTR).

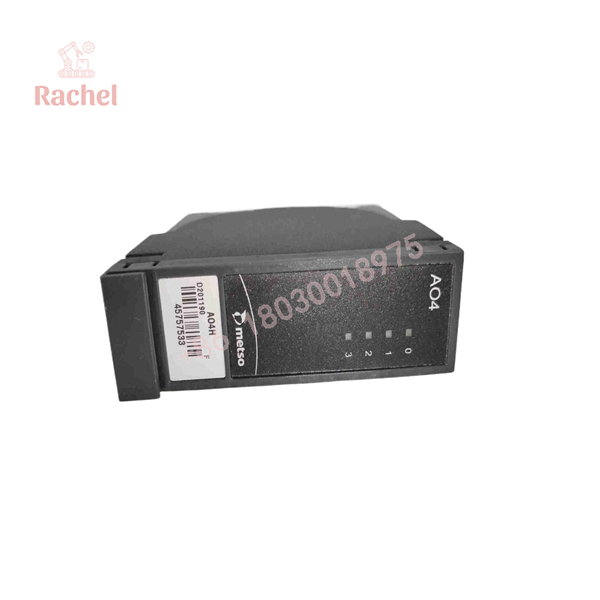

D201190
D201190
Dimensions, Mounting & Connection Notes
- Form Factor: Compact modular electronic card designed for high-density industrial I/O racks.
- Mounting Configuration: Slot-based insertion into standardized Metso rack backplanes.
- Connection Interface: Multi-pin backplane connectors link the module to internal data buses and power distribution, while field lines route through cabinet termination assemblies.
- Handling Precautions: Standard electrostatic discharge (ESD) prevention protocols (such as grounded wrist straps) must be observed when handling or replacing the module.
System Compatibility & Integration Requirements
| Item / Dependency | Verified Compatibility or Requirement | Practical Note |
| Control Architecture | Metso DNA / Valmet ACN distributed control systems | Requires native node definition and matching system firmware revision. |
| Mounting Chassis | Metso standard I/O rack bases / backplanes | Inserts directly into designated system slots alongside compatible node cards. |
| Power Distribution | Backplane-supplied 24 V DC rail | Relies on system power modules integrated within the local rack assembly. |
| Field Wiring | Shielded twisted-pair instrument cables | Recommended for output loops to preserve signal integrity and HART data transmission. |
FAQ
What is the primary function of the Metso D201190?
The D201190 (AO4H) is a 4-channel analog output module used in Metso DNA systems to convert digital control commands into precise 4–20 mA signals for field actuators.
Does the module support HART communication?
Yes, the AO4H model features built-in HART protocol support, allowing digital parameterization and diagnostics to overlay the standard analog output loop.
Which control systems are compatible with the D201190?
It is natively designed for deployment within Metso DNA and Valmet distributed control system (DCS) architectures utilizing the ACN I/O hardware series.
What error-detection capabilities are built into the module?
The unit features channel status monitoring, open-loop detection, and integrated short-circuit/overload protection to safeguard circuitry during field wiring faults.
