Description
Core Product Summary
The Metso D202593 is a controller-class module used within Metso Automation (now Valmet) distributed control system platforms, associated in the spare-parts market with the Valmet ACN controller series. It is stocked as a board-level automation spare for plants that operate Metso/Valmet DCS cabinets, where controller modules of this type execute process control and coordinate the I/O boards in the rack.
An L-suffixed variant (D202593L) is documented in the spare market. One point requires particular care with this part number: available third-party descriptions do not agree on the module’s exact function — sources variously describe it as an ACN controller module, a Profibus DP connection module, and a digital input module — and no manufacturer datasheet appears in the publicly retrievable material to resolve the conflict. Under these conditions, the module-type marking on the original board’s own label, read in the I/O rack and checked against the system configuration record, is the only reliable identification basis before ordering.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Product type | Controller-class automation module (DCS / PLC system module) |
| Manufacturer / brand | Metso Automation (Valmet) |
| Platform context | Metso / Valmet DCS platforms; associated with the ACN controller series |
| Known variant | D202593L |
| Family context | Listed alongside Metso D-series and ACN controller spares (D202275, D201832L, D202214 base assemblies) |
Bus type, transmission rate, I/O capacity, dimensions, and environmental figures are intentionally omitted: the public material contains conflicting specification sets from unverifiable third-party pages, and no manufacturer documentation supports any of them for the exact order number.
Detailed Product Overview
The D202593 is a Metso/Valmet automation module, and the most useful thing a product page can do for this part number is explain how to identify it correctly, because the public record for it is unusually inconsistent. Across the available spare-parts listings, the module is described in three different ways: as a high-performance controller module of the Valmet ACN series, as a Profibus DP fieldbus connection module, and as a digital input module. Each description carries its own — mutually incompatible — specification set, and none is backed by a manufacturer datasheet in the publicly retrievable material. Under these conditions, repeating any of the claimed specifications would be guesswork, and they are omitted here.
What can be established is the module’s ecosystem and the most consistent identification thread. Multiple independent listings place the D202593 in the Metso/Valmet DCS spares environment, and the ACN controller association recurs most consistently — the ACN series being the platform whose documented assemblies include the D202275 controller, the D201832L IPSP power supply, and the D202214 base. An L-suffixed variant, D202593L, is also documented in the spare market.
For procurement, the practical procedure is therefore verification-first. Read the original module’s label in place — order number, module-type designation, and any revision or suffix marking — then cross-check the system configuration record, which documents what occupies each slot in the controller or I/O assembly. Only then match stock against the requisition. In the legacy spare-parts market, listings for high-value controller parts are frequently assembled from generic templates; the board’s own label is the one source that cannot be wrong about what the board is.
As a controller-class spare, the D202593’s operational significance is cabinet-level: whatever its precise function, the module family it belongs to sits in the processing path rather than the periphery, which is why parts of this class are held as critical-inventory items on sites running these platforms. The ordering risk is identification, not performance — and identification is resolved by label and configuration record, not by catalog descriptions.

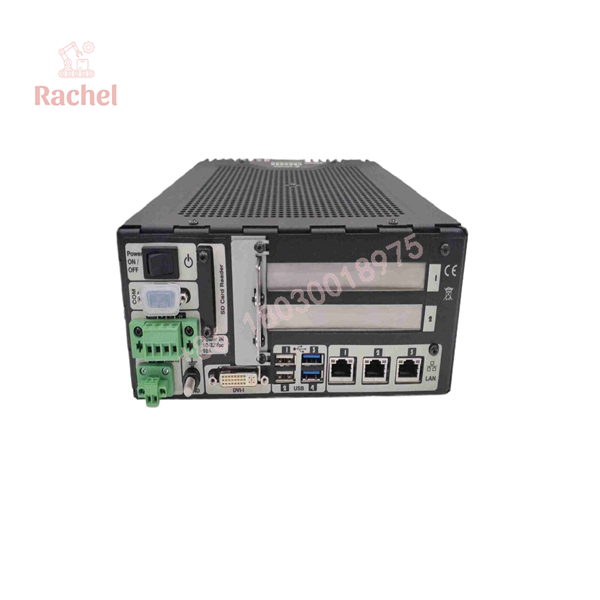

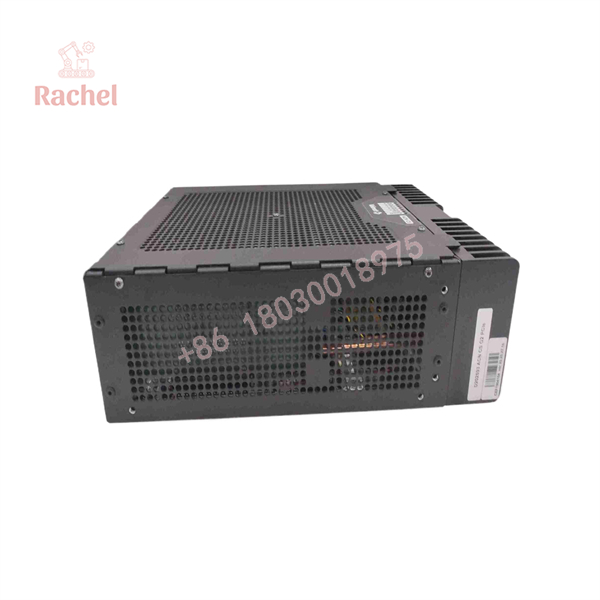

D202593
D202593
Engineering Selection Highlights
- Function must be verified from the board label and configuration record: Public descriptions of the D202593 conflict — controller module, Profibus DP connection module, and digital input module all appear in reseller material. The physical board’s type marking and the station’s configuration database are the decisive identification sources.
- Controller-class spare for ACN-associated systems: The most consistent description across sources places the module in the Metso/Valmet ACN controller context, alongside documented assemblies such as the D202275 ACN controller with D201832L power supply on a D202214 base. Sites maintaining ACN systems should verify which assembly position the D202593 occupies in their configuration.
- L-variant revision check: A D202593L variant is documented. As with the rest of this platform family, the suffix should be treated as part of the part number and matched exactly when ordering.
- Platform documentation over catalog claims: Because reseller specifications for this part number are demonstrably unreliable, electrical and network fit (bus type, I/O counts, environmental limits) should be confirmed from the site’s system documentation rather than from any third-party listing.
System Compatibility & Integration Requirements
| Item / Dependency | Verified Compatibility or Requirement | Practical Note |
|---|---|---|
| Control platform | Metso Automation (Valmet) DCS platforms, ACN controller context | Verify slot and assembly position against site documentation |
| Related assemblies | Documented ACN spares: D202275 controller, D201832L power supply, D202214 base | Relevant when the spare serves an ACN controller assembly |
| Variant check | D202593L documented | Match the suffix on the original unit’s label |
| Identification basis | Module-type marking on the original board’s label plus configuration record | Third-party descriptions conflict on function; the label is authoritative |
Applications & System Role
Within a Metso/Valmet DCS architecture, a controller-class module of this type occupies the processing and coordination layer of the control cabinet: it executes the control application and manages communication with the I/O boards that connect to field devices. The D202593 is associated with the ACN controller series in the spare-parts market, which serves this role in Valmet automation systems.
Typical fit scenarios are those common to controller spares on legacy platforms: restoring a failed controller slot in a Metso/Valmet DCS cabinet, supporting system expansion, or holding critical-inventory stock where a controller outage would interrupt process control for an entire cabinet or cell. It is relevant wherever the site’s spares list calls for the D202593 order number against a defined position in the system configuration.
FAQ
What is the Metso D202593?
It is a controller-class automation module used in Metso Automation (Valmet) DCS platforms, associated in the spare market with the ACN controller series.
What exactly does the D202593 do?
Available public descriptions conflict — controller module, Profibus DP connection module, and digital input module all appear in reseller material. The module-type marking on the original board’s label and the site’s configuration record are the authoritative sources for its function in a specific system.
Is there an L revision of this module?
Yes, a D202593L variant is documented. Match the suffix on the original unit’s label before ordering.
Which systems does it relate to?
Metso/Valmet DCS platforms, including the ACN controller assemblies that use parts such as the D202275 controller, D201832L power supply, and D202214 base.
Why are no detailed specifications shown for this part?
The specification sets found in third-party listings conflict with each other and are not supported by manufacturer documentation for this exact order number. Unverifiable values are omitted rather than published.
How should I verify this part before ordering?
Read the original module’s label in the rack — order number, module type, and revision/suffix — and cross-check against the system configuration database before matching stock to the requisition.
