Description
Product Introduction & Engineering Value
A failed output card inside an engine control system can create confusing symptoms: incorrect actuator commands, missing signals, or intermittent equipment responses. The NABCO MCA-203-11 is designed for maintenance teams supporting existing NABCO M800-series control installations where original system functionality must be preserved.
This PCB is identified as a digital output card for NABCO engine control applications, carrying part number 887 73747348. It is commonly maintained as a specialized marine automation spare, with replacement decisions based on exact model matching rather than physical similarity.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | NABCO |
| Model Number | MCA-203-11 |
| Part Number | 887 73747348 |
| PCB Type | Digital Output PCB Card |
| Product Category | Marine engine control electronics |
| Associated System | NABCO MG-800II Engine Control System |
| Board Function | Digital output signal generation and control interface |
| Installation Type | Control cabinet / rack-mounted PCB assembly |
| Application Area | Main engine remote control and automation |
| Replacement Method | Direct PCB card replacement after verification |
| Condition Options | New surplus, refurbished, tested used |
| Storage Requirement | ESD-safe controlled storage |
Field Application & The “Trench” Experience
A bulk carrier operating with an older NABCO MG-800II engine control system experienced a sudden loss of several command outputs during maneuvering tests. The engine itself remained mechanically healthy, but the automation system was no longer delivering expected control signals.
The maintenance team first checked field wiring and connected devices. After eliminating external causes, troubleshooting moved into the control cabinet. The failed module was identified as the digital output PCB. The installed board markings were compared, and an MCA-203-11 replacement with matching part number 887 73747348 was prepared.
After connector inspection, board replacement, and functional testing, the engine control system returned to normal operation without a complete control-system upgrade.
Typical application scenarios:
- NABCO MG-800II main engine control system maintenance
- Digital output channel restoration in marine automation cabinets
- Main engine remote control spare inventory management
- Ship overhaul projects requiring original NABCO PCB assemblies

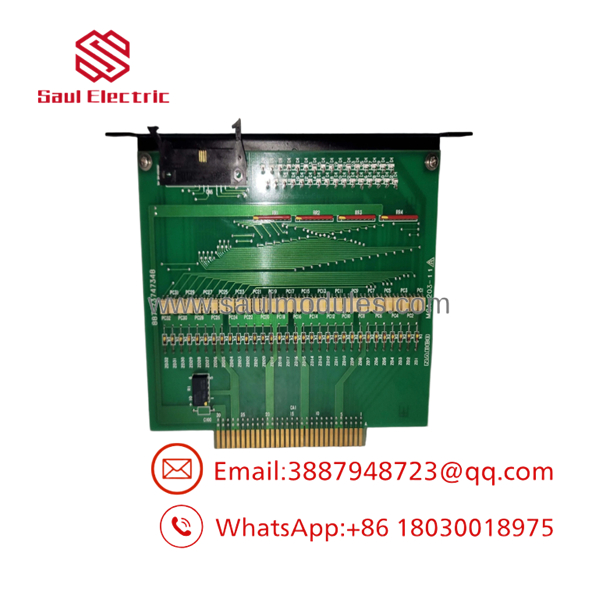

MCA-203-11

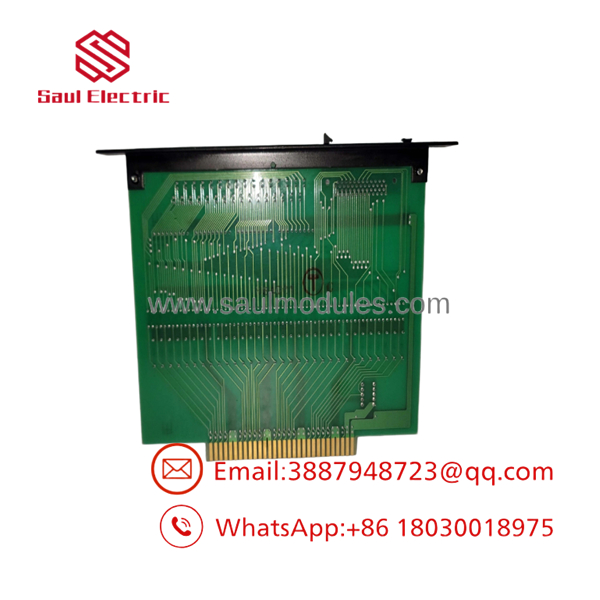

MCA-203-11
Transparency SOP: QA & Testing
A digital output PCB requires more than visual confirmation. Output failures can remain hidden until the connected equipment is commanded.
Inspection procedure:
1. Identification Verification
- Confirm NABCO marking.
- Verify MCA-203-11 model.
- Match part number 887 73747348.
- Confirm PCB revision information.
2. Physical Condition Review
- Inspect board surface.
- Check connector pins.
- Examine solder joints and components.
3. Functional Assessment
- Verify output circuits where testing capability exists.
- Check for abnormal component behavior.
- Compare against known-good reference units.
4. Inventory Preparation
- Apply anti-static protection.
- Record inspection history.
- Store with traceable spare-part information.
The Veteran’s Tech Trap Guide
⚠️ Do not confuse MCA-203-11 with MCA-204-11.
These boards belong to the same family but are separate modules. The MCA-203-11 is generally referenced as a digital output PCB, while MCA-204-11 is a different board designation.
⚠️ Verify the system before installation.
A board may physically fit into a cabinet but still be incorrect for the installed control configuration.
⚠️ PRO TIP: Record output wiring before removing the card.
Digital output boards interact directly with external devices. A wiring mistake can look like a PCB failure after replacement.
⚠️ Do not skip post-installation testing.
Output cards should be checked through the actual control sequence, not only by powering up the cabinet.
Dynamic FAQ
Q1. What is the NABCO ?
The NABCO is a digital output PCB card used in NABCO marine engine control systems, including MG-800II applications.
Q2. What is the part number for ?
The associated NABCO part number is 887 73747348.
Q3. What system uses the ?
The is commonly referenced for the NABCO MG-800II engine control system.
Q4. Can replace MCA-204-11?
No. Although both are MCA-series PCB cards, they have different module identities and should only be replaced according to the original equipment documentation.
Q5. Is a refurbished suitable for marine operation?
A refurbished unit can be suitable when it has passed inspection, electrical verification, and compatibility checks before installation.
Q6. What details should be provided when ordering this PCB?
Provide:
- NABCO model number
- Part number 887 73747348
- Existing NABCO control system model
- Vessel equipment application
- Required condition: new surplus, refurbished, or tested used
Q7. How should the be stored?
Store the PCB in anti-static packaging, protect it from moisture and contaminants, and maintain inspection records so the spare is ready for emergency use.
