Nematron EPC1200T-N270-2GB-40SS-XP | 12.1″ Fanless Industrial Panel PC

Description

Core Product Summary (Brand / Model / Key Attributes)

The Nematron EPC1200T-N270-2GB-40SS-XP is a 12.1-inch fanless industrial panel PC from the ePC Fanless Series. It combines a SVGA (800 × 600) TFT LCD with a 5-wire analog resistive touchscreen, an Intel Atom N270 1.6 GHz processor, 2 GB DDR2 DRAM and a 40 GB SATA solid-state drive, pre-loaded with Windows XP Professional.

Designed for operator interface and SCADA applications, the unit offers an ultra-thin panel-mount depth of less than 3.2 in (80 mm), dual Gigabit Ethernet ports, multiple serial and USB interfaces, and a NEMA 4/4X/12 (IP65) sealed front panel. Power is supplied by an integral 100–240 VAC supply (24 VDC optional). The fanless architecture and solid-state storage eliminate rotating media for improved reliability in industrial environments.

Key Technical Specifications

Detailed Product Overview

The EPC1200T-N270-2GB-40SS-XP belongs to Nematron’s ePC Fanless Series of ultra-thin industrial panel computers. The 12.1-inch SVGA TFT display with 5-wire resistive touchscreen provides a durable operator interface suitable for factory-floor and process environments. The Intel Atom N270 processor, combined with 2 GB of system memory and a 40 GB solid-state drive, delivers adequate performance for HMI, SCADA and embedded control applications while maintaining a completely fanless design.

I/O connectivity includes dual Gigabit Ethernet ports, four USB 2.0 ports, two RS-232 ports, one RS-485/422 port, a PS/2 port and an additional video output that supports dual-monitor operation. A rear-accessible CompactFlash socket allows expansion or alternative storage. The integral 100–240 VAC power supply covers worldwide voltages; a 24 VDC option is available for DC-powered panels.

The front panel is sealed to NEMA 4/4X/12 and IP65 standards when properly mounted, making the unit suitable for wash-down and dusty industrial locations. Hazardous-location approvals (Class I Division 2 and Class II Division 2) are available when the unit is installed in an appropriate enclosure. The powder-coated aluminum front bezel is standard; stainless-steel versions can be ordered for more demanding environments.

Engineering Selection Highlights

• Choose this model when a 12.1-inch SVGA touchscreen panel PC with fanless Atom N270 performance and Windows XP is required.
• Solid-state storage and fanless design eliminate mechanical failure points associated with hard drives and cooling fans.
• Dual Gigabit Ethernet and multiple serial ports support both modern Ethernet-based systems and legacy serial devices.
• Ultra-thin panel-mount depth simplifies installation in shallow enclosures or operator stations.
• NEMA 4/4X/12 front panel rating allows use in wet or dusty environments when correctly mounted.
• Confirm power-supply option (AC or 24 VDC) matches the available panel voltage.
• Hazardous-location listings apply only when the unit is mounted in a suitably rated enclosure.

EPC1200T-N270-2GB-40SS-XP

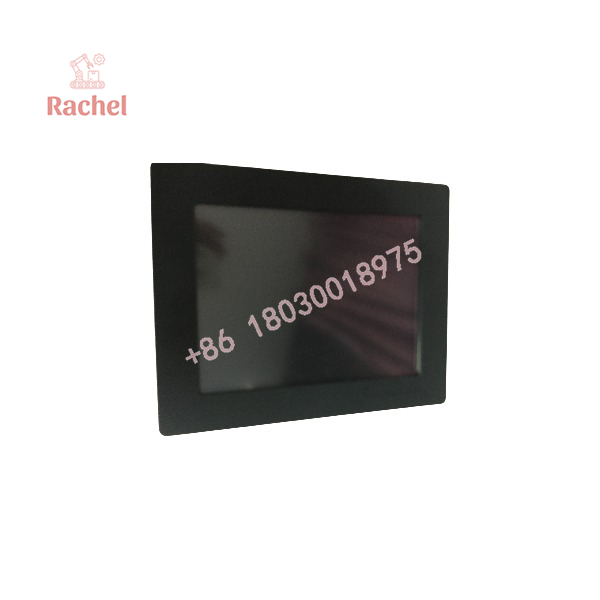

EPC1200T-N270-2GB-40SS-XP

System Compatibility & Integration Requirements

Dimensions, Mounting & Connection Notes

Overall dimensions are approximately 10.5 in (H) × 12.9 in (W) × 3.4 in (D). Panel cut-out is approximately 9.68 in × 12.10 in. Mounting depth is less than 3.2 in. The unit is secured with panel-mount clips. All I/O connectors and the power inlet are located on the rear. The solid-state drive is accessible from the rear for service.

FAQ

What is the Nematron EPC1200T–2GB-40SS-XP?
It is a 12.1-inch fanless industrial panel PC with Intel Atom N270 processor, 2 GB RAM, 40 GB SSD and Windows XP, featuring a resistive touchscreen.

What is the display resolution?
SVGA 800 × 600 with typical brightness of 400 nits.

Is the unit fanless?
Yes. The design uses a low-power Atom N270 processor and solid-state storage, eliminating fans and rotating media.

What power supply is standard?
Integral 100–240 VAC, 50/60 Hz. A 24 VDC option is available.

What front-panel protection is provided?
NEMA 4/4X/12 and IP65 when properly mounted in a suitable enclosure.

Does it support dual monitors?
Yes. An additional video port allows extended desktop operation.

What operating system is pre-installed?
Windows XP Professional.

Verification & Troubleshooting Notes

• Confirm the exact model string matches the nameplate (EPC1200T-N270-2GB-40SS-XP).
• Verify power input type (AC or DC) before connection.
• Ensure the panel cut-out and mounting depth are compatible with the enclosure.
• Check that the touchscreen overlay and front seal are intact for NEMA/IP rating.
• For hazardous-location use, install only in a suitably rated enclosure and follow the installation instructions.
• The solid-state drive is removable from the rear for imaging or replacement.
