Description
Product Introduction
The Omron R7D-AP01H is a compact, single-phase 200–240 VAC AC servo drive rated for 100W matching motors within Omron’s SmartStep family (such as the R7M-A10030 series). Designed as a cost-effective alternative to complex, multi-protocol drives, it offers simple pulse-train command inputs alongside analog speed and torque override capabilities for straightforward positioning applications.
Unlike full-featured motion drives that require complex software setups, the R7D-AP01H bridges the gap between stepper simplicity and true closed-loop AC servo performance. It features built-in auto-tuning, real-time gain adjustments, and dedicated encoder feedback handling, eliminating step-loss issues while providing quick setup times via front-panel DIP switches and console tools.
Key Technical Specifications
| Parameter | Specification |
| Compatible Motor Power | 100 W (Match with R7M-A10030-series motors) |
| Input Power Voltage | Single-Phase 200 to 240 VAC (50/60 Hz) |
| Continuous Output Current | 0.87 A rms |
| Max Output Current | 2.6 A rms |
| Control Method | IGBT PWM control (All-digital vector control) |
| Command Inputs | Pulse + Direction, CW/CCW Pulses, Quadrature (A/B Phase) |
| Feedback Signal | Incremental Encoder (2048 pulses/rev) |
| Dynamic Brake | Built-in |
| Enclosure Rating | IP20 (Panel Mount) |
| Operating Temperature | 32°F to 131°F (0°C to 55°C) |
Application Scenarios & The “Trench” Experience
It’s 3:00 AM on a high-speed packaging line. An inline indexing conveyor suddenly trips out with an encoder fault on the drive display. The 100W positioning drive has blown its internal power stage due to ambient thermal stress. The entire pick-and-place cell sits dead, holding up the cartoning operation downstream. Rewiring the cell to a modern 1S or G5 series drive would take a full software migration and a cabinet wiring redesign. You need a drop-in R7D-AP01H drive to load parameters, drop into the DIN rail slot, and restore production before morning startup.
- Packaging Machinery – Label Applicators & Indexing Tables – Provides precise, pulse-driven incremental feeds without overheating or missing counts at high cycle rates.
- Semiconductor Handling – Pick-and-Place Gantry Axes – Drives low-inertia 100W motors for high-acceleration placement of micro-components.
- Medical Equipment Manufacturing – Automated Syringe Assembly Rigs – Maintains strict positioning profiles under changing mechanical load friction.
Field Case Study:
A pharmaceutical packaging plant in Indiana suffered a drive fault on a blister card feed unit during a batch run. The existing R7D-AP01H drive had failed after 12 years of continuous operation. With factory lead times on modern replacements running over 8 weeks due to system re-engineering, we dispatched a factory-sealed surplus R7D-AP01H unit via same-day courier. The technician set the DIP switches to match the motor’s encoder resolution, re-connected the pre-wired terminal blocks, and ran auto-tuning. The line was running validated batch product again within 3 hours of delivery.

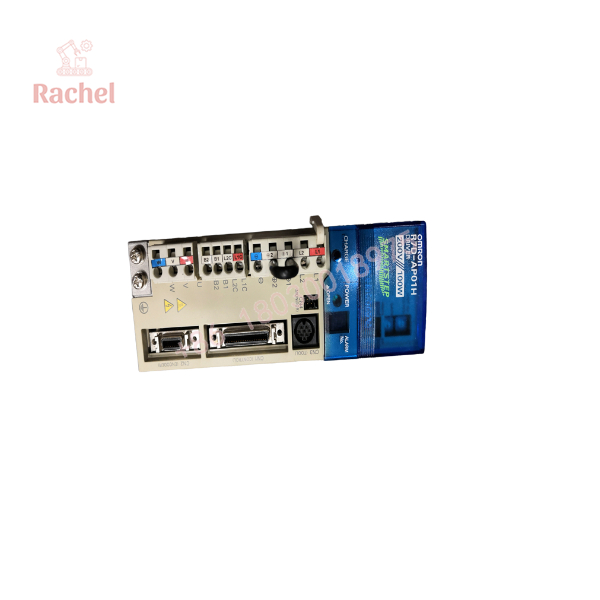

R7D-AP01H
R7D-AP01H
Transparency SOP: Quality Assurance & Testing
We don’t just ship boxes; we test them on actual Omron servo motor rigs.
- Inbound Physical Inspection: Verification of terminal screws, check control circuit connectors for mechanical stress, and inspect PCB capacitors for aging or swell.
- Live Rack Power-On & Diagnostic Self-Test: Unit is powered up on single-phase 230 VAC to confirm internal DC bus charging, main relay engagement, and clear display/LED diagnostics.
- Dyno Motor Loop Test: Coupled to a matching R7M-A10030 motor to execute full forward/reverse speed sweeps, high-acceleration positioning profiles, and load-hold cycles.
- I/O & Encoder Signal Verification: Validation of pulse-train inputs (CW/CCW and Pulse/Dir modes), alarm output contact closures, and 2048-line encoder feedback tracking.
- Anti-Static & Protective Packaging: Electrostatic discharge clearance, vacuum-sealing in anti-static film, and custom foam-lined packing before shipment.
The Veteran’s Tech Trap Guide
⚠️ Match the Motor Code Exactly:
The R7D-AP01H is specifically paired for 100W SmartStep motors (like R7M-A10030). Connecting a 200W or 400W motor—even if it mechanically fits—will throw immediate overcurrent (Err 12) or overload (Err 18) faults.
❗ DIP Switch Settings Before Power-Up:
Take a photo of the DIP switches on the side of the original drive before pulling it off the panel. The pulse-input mode (Pulse/Dir vs. CW/CCW) and electronic gear ratios are set via physical switches on this series. Powering up without matching these will cause the motor to run in reverse or ignore command pulses entirely.
⚠️ Watch Out for Single-Phase vs. Three-Phase Wiring:
Ensure your power terminals receive proper 200–240 VAC across L1 and L3 (or L1/L2 depending on terminal labeling). Applying 480 VAC across these terminals will instantly destroy the front-end rectifier bridge.
❗ Terminal Block Mechanical Torque:
Do not overtighten the removable terminal block screws on the front panel. They can strip easily if over-torqued. Use a precision flathead screwdriver and torque to OEM specs (approx 0.5 N·m).
Frequently Asked Questions
Q: Can I replace an R7D-AP01H with an R7D-AP02H (200W model)?
A: No. The drive’s current loops and internal thermal protection parameters are hard-coded to 100W motor dynamics. Using a 200W drive on a 100W motor leaves the smaller motor unprotected against thermal overload.
Q: Does this drive require specialized software for setup?
A: No. Basic operation and gain tuning can be handled using front-panel switches or an optional handheld console (R7A-CCA001P). However, full parameter backup and deep diagnostics can be performed using CX-Drive software via a serial interface cable.
Q: Can I drive this module with standard 24V PNP/NPN PLC outputs?
A: The pulse/direction input pins expect line-driver (RS-422) or open-collector signals. If driving directly from a 24 VDC PLC output card, you must install external current-limiting resistors (typically 1.5 kΩ to 2 kΩ) in series with the pulse lines to prevent blowing the internal optocouplers.
Q: Is hot-swapping supported on the R7D-AP01H?
A: Absolutely not. Disconnecting the U/V/W motor leads or control terminals while the 230 VAC main line is live will cause back-EMF arcing, which can destroy the drive’s output IGBT modules and damage the motor’s encoder board.
Q: Why buy new surplus instead of upgrading to a modern Omron 1S Servo System?
A: Modernizing to a 1S or G5 drive system requires changing the controller interface (often moving to EtherCAT), swapping cables, updating safety circuits, and modifying software. Purchasing a surplus R7D-AP01H is a plug-and-play solution that gets your machine operational immediately without costly engineering downtime.
