Westinghouse 1C31227G01 Ovation AO Board

Description

Product Introduction

The Westinghouse 1C31227G01 is a 4-channel analog output module designed for Emerson/Westinghouse Ovation Distributed Control Systems (DCS). Engineers utilize this card to command critical final control elements, such as modulating control valves, variable frequency drives (VFDs), damper drives, and turbine governors.

Built with individual channel isolation, the 1C31227G01 prevents ground loops from propagating back into the controller backplane, maintaining clean analog command signals. In our field experience, replacing a failing output card with this exact hardware drop-in ensures smooth signal transition without requiring retuning of active PID control loops.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

During a critical load-following maneuver at a fossil power plant, a feedwater control valve began jumping erratically, causing drum water levels to destabilize. Troubleshooting revealed a failing digital-to-analog converter on channel 2 of the original 1C31227G01 output module. The plant faced an impending unit trip if the command loop lost its 4-20mA output.

• Power Generation – Boiler Feedwater Control Valves – Precise 4-20mA command signal generation for positioners.
• Chemical Processing – VFD Speed Control – Sends continuous speed references to raw material feed pumps.
• Oil & Gas – Flare Gas Pressure Regulators – Drives modulating control valves under stringent response limits.

The instrument technician switched the feedwater controller to manual, swapped out the failing board with a pre-tested 1C31227G01 unit, and verified loop current stability using a clamp meter. The valve settled instantly, and automated PID control was restored within minutes.

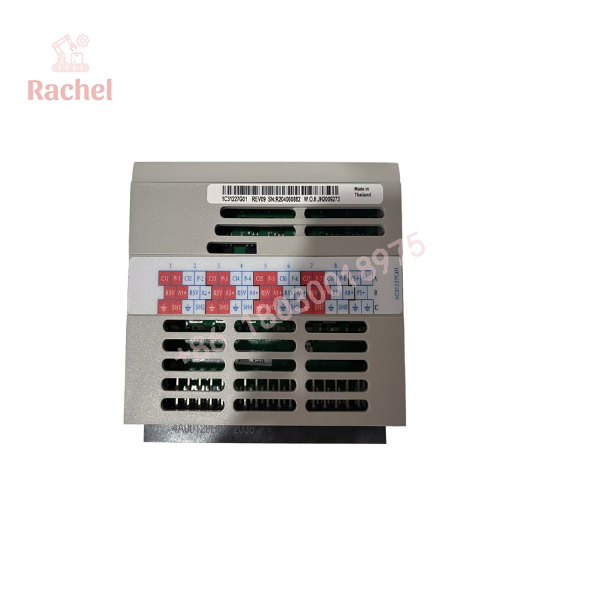

1C31227G01

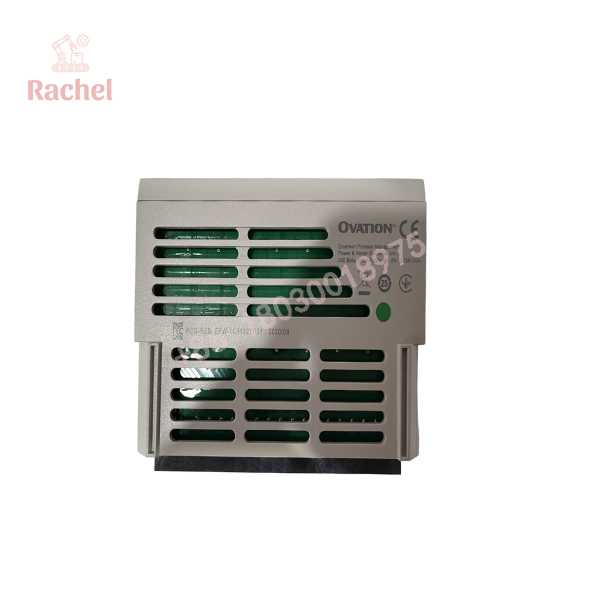

1C31227G01

Transparency SOP: Quality Assurance & Testing

We do not just ship boxes; we test them on actual Westinghouse Ovation test racks. Every 1C31227G01 undergoes the following verification process:

1. Inbound Visual Inspection: Inspection for trace hairline cracks, burnt output resistors, edge pin wear, and clean solder connections.
2. Backplane Logic Handshake: Insertion into a live Ovation rack to confirm correct bus handshake and hardware addressing.
3. Multi-Point Current Output Testing: Driving 4.0mA, 8.0mA, 12.0mA, 16.0mA, and 20.0mA commands from the controller and verifying output accuracy across a 500-ohm load using a calibrated precision DMM.
4. Channel Isolation Check: Megger testing to verify optical separation between channels and backplane logic ground.
5. Burn-In & Static Packaging: 4-hour full-load thermal burn-in followed by anti-static cleaning and custom foam-padded packaging.

The Veteran’s Tech Trap Guide (Crucial Value-Add)

• ⚠️ Lock the Valve Position Before Swapping: Pulling an analog output module drops the output current to 0mA (or open circuit), which will cause spring-return valves to fail open or fail closed depending on actuator setup. Always manual-bypass or mechanically pin the field device before hot-swapping!
• ❗ Verify Maximum Loop Impedance: Ensure your external loop resistance (cable run + positioner internal resistance) does not exceed 750 ohms. Higher impedance will saturate the output circuit, preventing the channel from driving the full 20mA signal.
• ⚠️ Check Output Power Sourcing: Determine whether the 1C31227G01 module or base is supplying loop power or if the field positioner expects an isolated passive command. Sourcing 24V into an already powered field device will destroy the channel’s output stage.

Frequently Asked Questions (FAQ for Conversion)

Q: Is the 1C31227G01 hot-swappable?

A: Yes, Ovation I/O hardware supports live hot-swapping. However, pulling the card immediately drops all 4 output signals, so field devices must be safely secured or bypassed in advance.

Q: What happens to the outputs if the controller loses communication?

A: Output behavior depends on system configuration settings. Channels can be configured to hold their last known state (Hold Last Value) or drop to a predefined safe fail state (0mA or 4mA).

Q: Can this module drive voltage outputs instead of 4-20mA current outputs?

A: The 1C31227G01 is specifically engineered for 4-20mA current loops. If voltage signals (e.g., 0-10V) are required, external drop resistors or signal conditioners must be used.

Q: Does installing a replacement card require software re-calibration?

A: No. Calibration parameters are factory-set on the module and scaled digitally by the Ovation controller software base settings.

Q: What warranty is offered with this surplus card?

A: All new surplus and rig-tested refurbished 1C31227G01 cards come backed by our full 12-month replacement warranty.
