ABB 1TNA920733R0002 M102-P Motor Protection Unit Profibus DPV1

Description

Product Introduction

The ABB 1TNA920733R0002 is an M102-P intelligent motor control and protection unit designed for industrial motor feeders requiring comprehensive electrical protection, motor diagnostics, and integration into plant automation networks. It is commonly deployed in MCCs, process industries, utilities, and heavy manufacturing environments where continuous motor availability is critical.

Unlike basic thermal overload relays, the M102-P combines motor protection, event recording, diagnostics, and Profibus DPV1 communication inside a single device. That reduces wiring complexity while providing detailed operating data to the PLC or DCS. Verify firmware compatibility and parameter settings before replacing an existing unit.

Key Technical Specifications

*Actual enabled protection functions depend on project configuration and parameter settings.

Application Scenarios & The “Trench” Experience

Every maintenance engineer has seen it happen.

A 400 HP process pump suddenly trips. Operations restart the motor several times without checking the protection relay history. Production stops. Hours disappear while technicians search for a fault that the protection unit had already recorded.

That is exactly why intelligent motor protection exists.

Typical Applications

Power Generation – Large cooling water pumps – Continuous thermal modeling and fault recording prevent repeated motor damage.

Oil & Gas – Compressor motor feeders – Profibus DPV1 allows diagnostics to reach the DCS without additional hardwired signals.

Mining – Conveyor drives – Accurate overload protection minimizes motor failures during high starting torque conditions.

Water Treatment – Blower and pump control – Detects phase imbalance before overheating damages motor windings.

Manufacturing – Process motors inside MCC lineups – Centralized diagnostics simplify preventive maintenance.

Field Replacement Example

During a scheduled shutdown at a chemical plant, technicians discovered an M10x relay that had intermittent communication faults after years of service. Production could not resume until every motor feeder passed commissioning.

The replacement relay was installed during the maintenance window. After confirming CT ratios, Profibus node address, and motor parameters, communication returned immediately. The restart avoided another production shift of downtime, which would have cost substantially more than the replacement hardware.

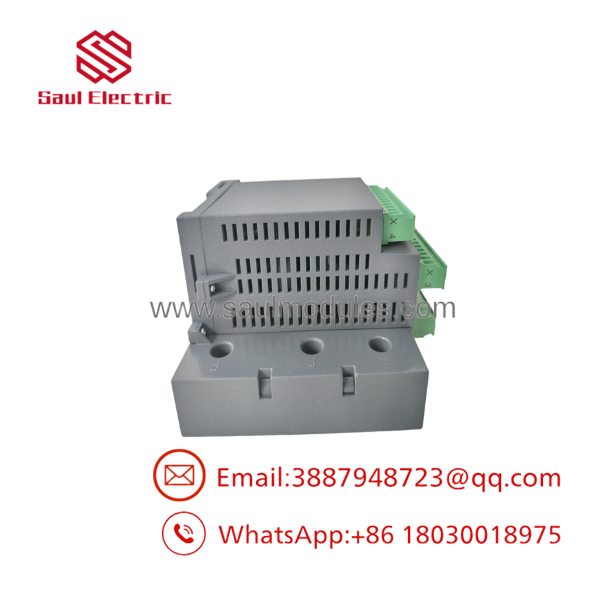

1TNA920733R0002

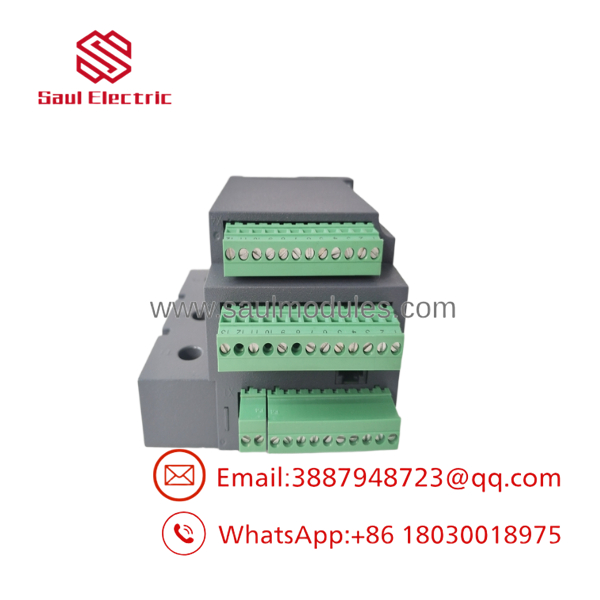

1TNA920733R0002

Transparency SOP: Quality Assurance & Testing

We don’t just ship boxes; we test them on actual ABB motor control platforms whenever practical.

• Inbound Inspection
  • Verify ABB identification labels
  • Inspect OEM packaging and security markings
  • Check for mechanical damage or connector wear
• Live Rig Testing
  • Controlled power-up
  • Boot verification
  • Communication handshake through Profibus interface
  • Front indicator status verification
• Electrical Parameter Checks
  • Power supply verification
  • Digital input testing
  • Communication port validation
  • Connector continuity inspection
• Firmware Verification
  • Record firmware revision
  • Compare hardware revision with customer requirements
  • Document configuration status whenever available
• Final QC & Packaging
  • Visual inspection
  • Anti-static packaging
  • Shock-resistant protective packing
  • Final serial number documentation

The Veteran’s Tech Trap Guide

⚠️ Take a picture before disconnecting anything.

Motor parameters, CT ratios, trip classes, and communication settings often differ between identical-looking relays. Don’t trust memory.

⚠️ Check the CT ratio first.

Installing the wrong current transformer ratio completely changes overload calculations. The relay may trip too early—or not protect the motor at all.

❗ Verify the Profibus node address.

Duplicate addresses can bring an entire Profibus segment offline. Always compare the configured address with the PLC or DCS hardware configuration before energizing.

⚠️ Never assume firmware behaves identically.

Small firmware revisions sometimes introduce additional protection parameters or communication features. Back up the original configuration whenever possible.

Frequently Asked Questions (FAQ)

Q1. Does the ABB 1TNA920733R0002 support hot swapping?

No. It should be isolated from control power before replacement. Always follow plant lockout/tagout procedures.

Q2. Does this unit communicate with ABB PLCs only?

No. It communicates using Profibus DPV1, allowing integration with many PLC and DCS platforms that support the protocol, provided the correct GSD files and configuration are used.

Q3. Can I install this without reconfiguring the motor settings?

Usually not.

Motor full-load current, CT ratio, trip class, protection thresholds, and communication parameters should all be verified before commissioning.

Q4. Is this compatible with every M10x relay?

Not necessarily.

ABB released several M10x variants with different communication interfaces, auxiliary supply voltages, and feature sets. Always verify the complete part number rather than relying on appearance alone.

Q5. What warranty is typically offered?

Most industrial surplus suppliers provide a 12-month warranty against manufacturing defects. Warranty terms should always be confirmed before purchase.

Q6. Why is surplus inventory less expensive than buying directly from the OEM?

Many units originate from unused project surplus, plant overstock, or cancelled system upgrades. They are genuine industrial components but are outside the OEM’s standard distribution channel.

Q7. How can I confirm this is the correct replacement?

Compare:

• Complete ABB part number
• Hardware revision
• Firmware revision
• Auxiliary supply voltage
• CT range
• Communication protocol
• Existing parameter backup

Finally, verify all terminal assignments and wiring against the official ABB documentation before energizing the motor feeder.
