Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | ABB |
| Product ID | 3BHE023784R0001 |
| Semiconductor Type | 5SHY3545L0014 |
| Device Type | Integrated Gate-Commutated Thyristor (IGCT) |
| Blocking Voltage | 4,500 V |
| Package Diameter | 91 mm Press-Pack |
| Product Type | IGCT Power Module |
| Integrated Gate Unit | Yes |
| Typical Applications | ACS5000 / ACS6000 Medium-Voltage Drives |
| Net Weight | Approximately 3.29 kg |
| Country of Origin | Switzerland |
| Replacement For | 3BHB013088R0001 |
ABB notes that the newer 3BHE023784R0001 is fully interchangeable with 3BHB013088R0001 without functional restrictions. The newer version includes an additional fiber-optic status output, which is not utilized in ACS6000 drive systems.
Product Introduction

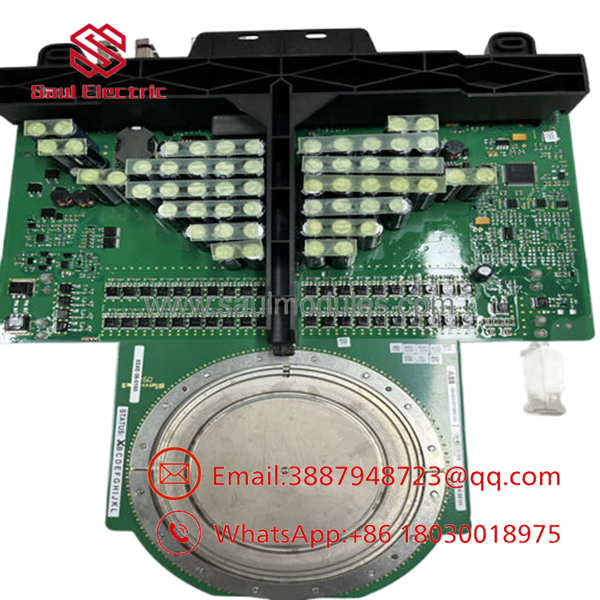

The ABB 3BHE023784R0001 (5SHY3545L0014) is a high-power IGCT module developed for demanding medium-voltage power conversion applications. It combines the IGCT semiconductor and integrated gate drive into a compact press-pack assembly, providing fast switching, low conduction losses, and high reliability for large industrial drives.
This module is widely used in ABB ACS5000 and ACS6000 medium-voltage variable frequency drives serving compressors, pumps, fans, rolling mills, mine hoists, and other high-power industrial equipment. Because it operates directly within the main power stage, installation should only be performed by qualified personnel following ABB service procedures.
- 3BHE023784R0001
Troubleshooting Quick Reference
| Symptom | Possible Cause | Relevance to this Part | Quick Check Method | Recommendation |
|---|---|---|---|---|
| Drive reports IGCT fault | Failed IGCT module | ✅ High | Review drive diagnostics and phase fault history | Confirm module failure before replacement |
| DC bus fuse blows immediately | Internal semiconductor short circuit | ✅ High | Measure resistance across power terminals after complete discharge | Replace module if a short is confirmed |
| One inverter phase inactive | IGCT switching failure | ✅ High | Compare phase output waveforms using approved HV equipment | Inspect the affected phase module |
| Overtemperature alarm | Cooling system failure | ⚠️ Medium | Verify heatsink temperature, coolant flow, and thermal interface | Correct cooling issues before replacing the module |
| Gate driver fault | Driver board malfunction | ⚠️ Medium | Check gate drive diagnostics and fiber-optic communication | Inspect the driver circuitry before replacing the IGCT |
| Replacement module fails immediately | External power stage fault | ❌ Low | Test busbars, snubber circuits, and motor insulation | Eliminate the root cause before installing another module |
| Hardware mismatch warning | Incorrect module revision | ✅ High | Verify part number and replacement compatibility | Install the approved ABB replacement module |
Technical Note: IGCT modules are extremely reliable under normal operating conditions. Most failures originate from cooling loss, DC bus faults, gate driver failures, insulation breakdown, or excessive overload events. Replacing the semiconductor without correcting the underlying issue often results in repeat failures.
Frequently Asked Questions (FAQ)
Q1. What is the ABB 3BHE023784R0001?
It is the ABB 5SHY3545L0014 Integrated Gate-Commutated Thyristor (IGCT) Module, used as the primary switching semiconductor in ABB medium-voltage drive systems.
Q2. Which ABB drive systems use this module?
ABB identifies this IGCT module as a spare part for ACS5000 and ACS6000 medium-voltage AC drives. Compatibility should always be verified using the drive model, serial number, and spare parts list.
Q3. Can it replace 3BHB013088R0001?
Yes. ABB states that 3BHE023784R0001 is fully compatible with 3BHB013088R0001 and can be used as a direct replacement. The newer module includes a fiber-optic status output, but this feature is not used in ACS6000 drives.
Q4. Can I replace only the IGCT module?
Yes, but first verify:
- Exact part number (3BHE023784R0001)
- Semiconductor type (5SHY3545L0014)
- Gate driver condition
- Cooling system performance
- Busbar torque
- Insulation resistance of the power stage
Replacing only the semiconductor without addressing the root cause can lead to immediate failure of the new module.
Q5. Can this module be hot-swapped?
No. Medium-voltage drives contain hazardous stored energy after power removal. Disconnect all power sources, verify that the DC bus is fully discharged, and follow ABB lockout/tagout procedures before servicing.
Q6. What product condition is typically available?
This module is commonly supplied as:
- New Original
- New Surplus
- Professionally Tested Refurbished
For critical medium-voltage applications, request the hardware revision, insulation test report, visual inspection records, and functional test documentation before purchase.
