Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Product Model | CI854A |
| Part Number | 3BSE030221R1 |
| Product Type | PROFIBUS DP-V1 Communication Interface Module |
| System Platform | ABB AC 800M / 800xA |
| Communication Protocol | PROFIBUS DP-V1 Master |
| PROFIBUS Ports | 2 × PROFIBUS DP (9-pin D-Sub) |
| Baud Rate | 9.6 kbps to 12 Mbps |
| Controller Interface | AC 800M CEX-bus |
| Power Supply | 24 V DC via backplane |
| Mounting | DIN rail with CEX module base |
| Operating Temperature | -25 °C to +70 °C |
| Protection Class | IP20 |
Product Introduction
The ABB CI854A (3BSE030221R1) is a PROFIBUS DP-V1 communication interface module for the ABB AC 800M controller family. It connects AC 800M controllers to PROFIBUS DP field devices including remote I/O stations, variable frequency drives, motor control centers, and intelligent field instruments.
The module supports dual PROFIBUS interfaces, high-speed communication up to 12 Mbps, and integration with ABB 800xA systems. It is commonly deployed in power generation, oil and gas, chemical processing, mining, and water treatment plants where deterministic fieldbus communication is required.

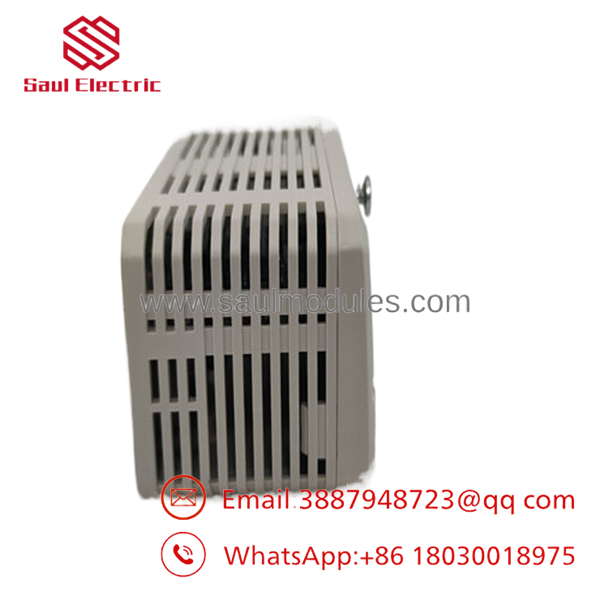

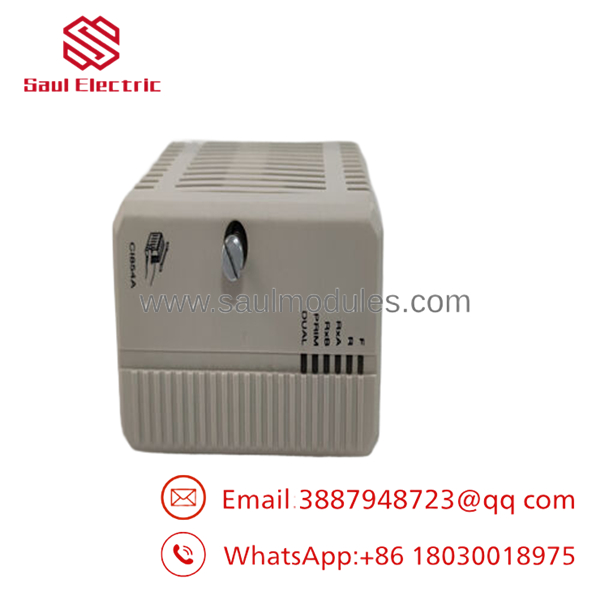

- CI854A 3BSE030221R1
- CI854A 3BSE030221R1
Troubleshooting Quick Reference
| Symptom | Possible Cause | Relevance to this Part | Quick Check Method | Recommendation |
|---|---|---|---|---|
| PROFIBUS network offline | Cable or termination fault | ❌ Low | Verify termination at both ends and measure bus voltage | Check network before replacing module |
| All DP slaves unavailable | CI854A communication failure | ✅ High | Review AC 800M diagnostics and module LEDs | Replace module if diagnostics confirm hardware fault |
| Individual slave not detected | Address conflict | ❌ Low | Verify PROFIBUS node address with engineering software | Correct addressing first |
| Intermittent communication | Loose D-Sub connector or shielding issue | ⚠️ Medium | Inspect connectors and cable shield continuity | Repair wiring before replacing hardware |
| Controller reports CEX communication error | CEX-bus or module issue | ✅ High | Reseat module and inspect CEX connector | Replace module if fault remains |
| Redundant communication unavailable | Configuration mismatch | ⚠️ Medium | Verify redundancy configuration in Control Builder | Correct configuration before replacing module |
| Communication slows or drops randomly | Incorrect baud rate or cable quality | ❌ Low | Verify network parameters and cable specifications | Confirm all DP devices share identical settings |
Service Note
The CI854A itself is a reliable module. Most PROFIBUS faults originate from incorrect cable termination, duplicate slave addresses, damaged connectors, or shield grounding problems. Before replacing the module, check the physical layer with a PROFIBUS analyzer and review the controller diagnostic buffer. In many cases, the communication module is functioning correctly while the field network is not.
Frequently Asked Questions (FAQ)
1. What is the used for?
The is a PROFIBUS DP-V1 master communication interface that allows ABB AC 800M controllers to communicate with PROFIBUS remote I/O, drives, motor starters, and other compatible field devices.
2. Does the support redundant communication?
Yes. The module supports redundant PROFIBUS architectures when configured within an ABB AC 800M redundancy system, improving communication availability during network faults.
3. Can I hot-swap the ?
No. Although some redundant systems can tolerate module replacement during maintenance, ABB recommends following plant procedures and de-energizing the affected hardware whenever practical. Replacing communication modules under load without proper procedures can interrupt fieldbus communication.
4. How many PROFIBUS devices can it support?
A PROFIBUS DP segment can support up to 125 devices, depending on network design, addressing, repeaters, and system architecture. Engineering software and controller resources should also be considered during project design.
5. What is the most common installation mistake?
The most common mistake is incorrect bus termination.
I’ve seen technicians replace perfectly good communication modules when the real problem was a powered-off terminating connector or duplicate slave address. Before replacing the , always verify:
- Bus termination
- Slave addresses
- Shield grounding
- Baud rate configuration
- PROFIBUS cable continuity
6. Why are New Surplus modules more economical?
New Surplus modules are genuine ABB products that have never been installed in production but remained in project or distributor inventory. They offer OEM hardware while reducing procurement costs for legacy AC 800M systems.
7. What quality checks should a supplier perform before shipment?
A qualified supplier should complete:
- OEM serial number and label verification
- Anti-counterfeit inspection
- Visual inspection for damaged connectors or PCB defects
- Power-on verification using an ABB AC 800M CEX test rack
- PROFIBUS DP communication testing with a compatible slave device
- LED status and diagnostic verification
- ESD-safe packaging with QC documentation and test photos available upon request
