Description
3. Key Technical Specifications
- Current Inputs: Multiple 1/5 A CT channels for windings and neutral
- Voltage Inputs: VT channels for voltage-based protection
- Auxiliary Power Supply: 48-250 V DC / 100-240 V AC typical
- Communication Protocols: IEC 61850, DNP3, Modbus, IEC 60870-5-103
- Protection Functions: Transformer differential, restricted earth fault, overcurrent, thermal, overexcitation, voltage regulation
- Operating Temperature: -25°C to +55°C (standard)
- I/O: Extensive binary inputs/outputs configurable per application
- HMI: Large display with single-line diagram support
- Recording: Full disturbance recording and event logging
- Design: Compact 650 series hardware with application-specific configuration
4. Product Introduction
The ABB RET650 is a transformer protection IED from the Relion 650 series. It provides comprehensive protection, control, measurement, and supervision for two- and three-winding power transformers in transmission and subtransmission systems.
It features high-speed differential protection with backup functions and is optimized for reliable operation on power transformers and reactors. Ready-made configurations simplify engineering while allowing customization through PCM600.

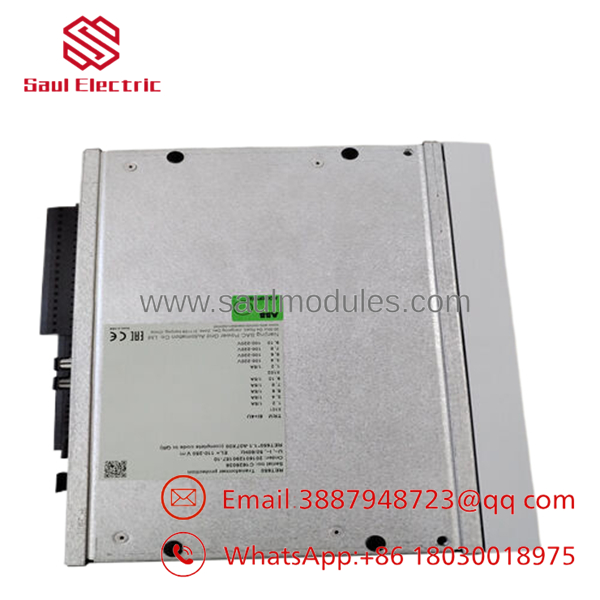

- RET650

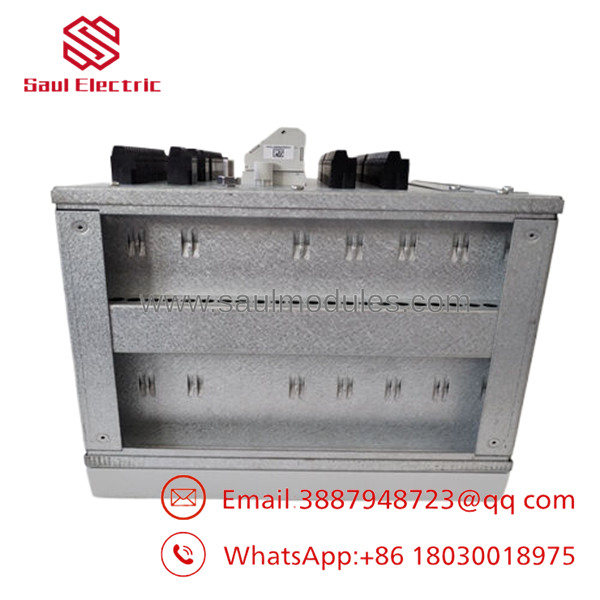

- RET650

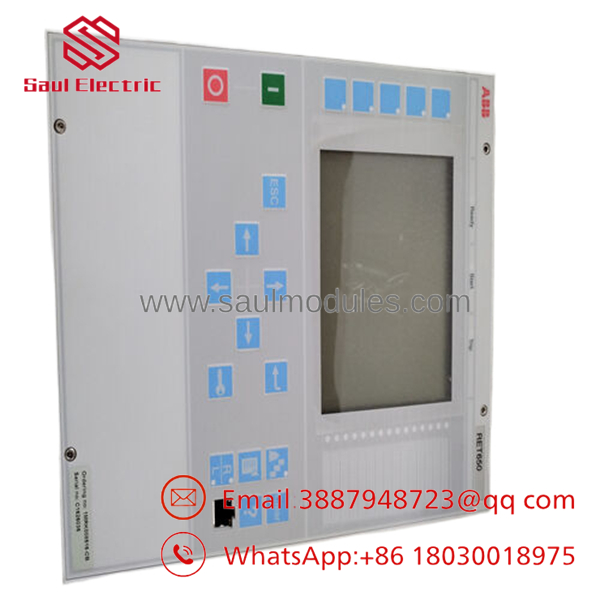

- RET650
5. Troubleshooting Quick Reference
| Symptom | Possible Cause | Relevance to this Part | Quick Check Method | Recommendation |
|---|---|---|---|---|
| No power / blank screen | Auxiliary supply fault | Low | Measure voltage at terminals | Confirm supply matches configured range |
| Differential restraint high | CT mismatch or saturation | High | View bias currents and harmonics on HMI | Check CT ratios, polarity, and vector group |
| Backup protection not tripping | Incorrect settings or blocking | Medium | Review event log for operate values | Validate pickup and time settings |
| Communication alarm | Protocol or network issue | Medium | Check status and test connections | Verify station bus configuration |
| Self-supervision active | Hardware or configuration error | High | Note alarm details | Retrieve full diagnostics and logs |
| Voltage regulation issues | OLTC or AVR settings | Low | Monitor tap position and voltage | Confirm control mode and deadband |
External factors such as CT wiring or transformer conditions cause most issues. Provide disturbance records and configuration files for support.
6. Frequently Asked Questions (FAQ)
Is this unit new original? Yes, offered as New Original / New Surplus. Units undergo verification and functional testing.
Is the RET650 suitable for three-winding transformers? Yes. It supports two- and three-winding applications with appropriate CT/VT inputs and configuration.
Can the module be hot-swapped? No. Isolate the transformer properly before any hardware work. The design supports straightforward replacement once de-energized.
What communication is supported? IEC 61850 is the primary protocol with full GOOSE and MMS capabilities. Legacy serial protocols are also available.
How does it compare to the RET620? The RET650 belongs to the 650 series with expanded I/O and application flexibility for more complex transformer setups compared to the 620 series.
What warranty applies? 1-year functional warranty on surplus stock. We document testing results with each shipment. Contact us for spares strategy on critical assets.
Why stock surplus for this model? Fast access to spares reduces outage time on key transformers. Every unit receives detailed QC including electrical and communication tests. Full reports and supporting evidence provided on request.
