Description
Key Technical Specifications
| Parameter | Value |
| Supply Voltage | 24 V DC (−15%, +20%) |
| Power Consumption | Max. 5 W at rated voltage |
| System Bus | CS31 fieldbus interface (twisted-pair configuration) |
| Max Bus Distance | 2,000 meters without repeaters |
| Connection Capacity | Up to 31 remote I/O terminal blocks or slave stations |
| Serial Interfaces | COM1 (EIA RS-232) for programming software (907 PC 33) |
| System Design Standards | Conforms to IEC 1131 Part 2, Overvoltage Category II |
| Mounting Type | Standard 35mm DIN rail or direct panel screw mounting |
| Cooling | Natural convection, do not block vents |
| Ambient Temp Rating | 0 to +55 °C operating; −25 to +75 °C storage |
Product Introduction
The ABB CS3107KT92 is a central processing unit designed for the Advant Controller 31 (AC31) Series 90 automation architecture.
Industrial sites deploy the 07KT92 module when maintaining or scaling legacy manufacturing lines, water treatment infrastructure, or materials handling systems that depend on the high-availability Procontic network protocol. It avoids the immense overhead of total system migration by serving as a drop-in replacement part. Built to strict IEC 1131 Part 2 standards, this controller handles voltage fluctuations and industrial thermal loads without losing loop processing synchronization or dropping communication flags with downstream units.
Troubleshooting Quick Reference
| Symptom | Possible Cause | Relevance to this Part | Quick Check Method | Recommendation |
| All LEDs remain dark upon power-up | Input supply voltage dead, reversed polarity, or internal fuse blown. | 🟡 Medium | Measure voltage across the L+ and M supply terminals with a Fluke 115 multimeter. Verify it reads stable 24 V DC. | If 24 V DC is present but LEDs are completely off, internal power regulation has failed; replace the unit. |
| “Bus Error” LED illuminated red | Open-circuit, high resistance, or heavy EMI noise on the twisted-pair line. | ❌ Low | Verify network continuity across the CS31 bus terminals. Ensure terminating resistors are seated at both ends of the segment. | The fault is typically field-side cable damage or node misconfiguration rather than a failed 07KT92. |
| “Unit Error” LED illuminated solid red | Hard processing fault, RAM corruption, or failed internal self-test loop. | ✅ High | Cycle the primary 24 V DC power. If the unit error immediately returns on boot sequence, run diagnostic buffer readouts via COM1. | Hardware internal fault verified. Replace module to restore system operations. |
| I/O values freeze, “Run” LED stays green | Distributed I/O power loss or processing cycle hanging during execution. | 🟡 Medium | Check status indicators on remote terminal stations. Probe the RTS and TXD lines via active mode monitoring on COM1. | Check remote rack supplies first. If remote power is sound, issue a cold restart command using the 907 PC 33 software tool. |
Note: If specific diagnostic errors persist during line testing, document your exact LED fault matrix and download your diagnostic log files before contacting technical support.

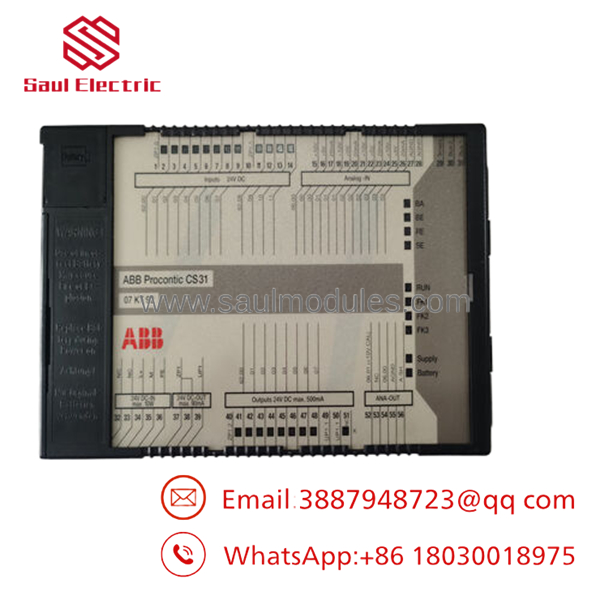

- CS3107KT92

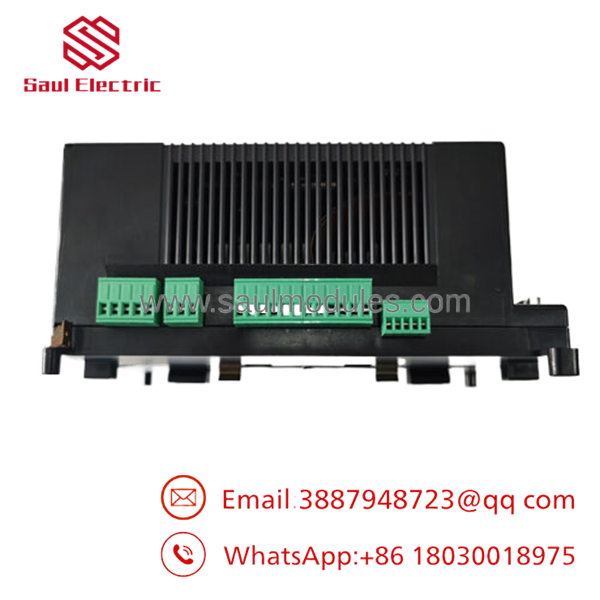

- CS3107KT92
Frequently Asked Questions (FAQ)
Is the ABB 07KT92 hot-swappable while the machine line is actively running?
No, the 07KT92 central processing unit is not hot-swappable. Pulling this module from its backplane or disconnecting its terminal blocks under load risks severe arcing, configuration corruption, or electrical shock to the internal microprocessors. Always isolate the primary power supply breaker and confirm the system is entirely unpowered before swapping the module.
What software tool is required to upload or verify the logic configurations on this module?
Programming, testing, and system diagnostics are managed through the legacy ABB 907 PC 33 programming package. Connection to the module requires a point-to-point serial cable connected directly to the EIA RS-232 COM1 port. Ensure the COM1 configuration mode is flipped to “Active Mode” inside your development environment to guarantee proper diagnostic telegram handshakes.
Why is this “New Surplus” unit priced lower than purchasing straight from factory channels?
To be blunt, the AC31 and Series 90 product families have been classified as obsolete by the original manufacturer for years. These units are legacy warehouse stock acquired from industrial plant plant-upgrades, canceled automation projects, or tier-one supplier surplus. Because they bypass corporate OEM supply markups, we pass those substantial material savings along to your maintenance budget.
Will this replacement module ship with historical program logic pre-loaded into its memory?
No. All surplus units are completely wiped and restored to factory default settings during our functional verification testing. You must pull your existing site application backup file via your software package and push that configuration to this replacement controller after mounting and wiring are finalized.
How does the 07KT92 manage logic processing if the decentralized network bus suffers a severe break?
If a cable break or extreme EMI cuts off the CS31 bus communication loop, the 07KT92 module will trigger a master bus error flag. However, if any sub-units on your network are designated as intelligent slaves running localized control blocks, those individual slave units can drop into independent emergency operation routines to safely secure process equipment.
Does this unit include the physical terminal blocks, or must I purchase them as an accessory?
Surplus central units normally ship exactly as pictured—as a bare base module. In most field replacement tasks, engineers simply slide the old unit off the DIN rail and reuse the existing wired terminal block connectors. This prevents you from needing to re-terminate twenty separate field wires individually. If your existing terminals are melted or corroded, specify that requirement to our sales team before checkout.
