ABB DI524 Digital Input Module

Description

Product Introduction

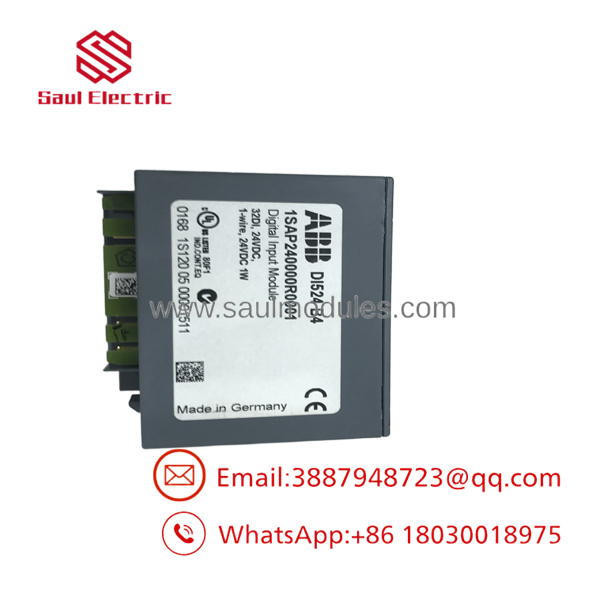

The ABB DI524 (1SAP240000R0001) is a 32-channel digital input module engineered for high-density signal integration within the ABB AC500 PLC and S500 I/O system. Mounting directly onto TU5xx terminal bases via the S500 backplane bus, the DI524 accommodates up to 32 discrete 24V DC inputs in a compact 67.5 mm wide module footprint.

Designed for efficient cabinet builds using 1-wire field cabling, the module captures field signals from switches, pushbuttons, sensors, and interlocks. It features two dedicated fast-counter inputs (I24 and I25) capable of handling pulse frequencies up to 50 kHz, making it suitable for high-speed position tracking or flow metering without extra specialty cards.

Key Technical Specifications

Application Scenarios & Industrial Context

In a large material handling conveyor layout, hundreds of photo-eye sensors, zero-speed switches, and safety limit switches must be routed to the main PLC rack. Using lower-density 8-channel or 16-channel cards increases hardware costs and backplane width significantly.

By utilizing the ABB DI524, automation engineers consolidate 32 field inputs into a single terminal slot. The onboard high-speed counter channels (I24/I25) directly read pulse signals from encoder wheels on the primary drive motor, allowing exact belt position tracking while simultaneously processing 30 standard discrete sensors.

• Material Handling & Conveyor Systems: High-density sensor mapping combined with encoder pulse processing.
• Factory & OEM Machinery: Packaging, stamping, and assembly lines requiring compact DIN rail space.
• Water Treatment & Processing Infrastructure: Reading status contacts, valve limit switches, and flow meter pulse outputs.

Quality Assurance & Inspection Steps

Every DI524 module undergoes multi-stage hardware validation prior to dispatch:

1. Terminal Pin & Latch Inspection: Mechanical check of backplane contact pins and housing release tabs for damage or bending.
2. Backplane Logic Verification: Plugged into an AC500 CPU test chassis to verify module identification, firmware communication, and LED indicator self-tests.
3. Full 32-Channel Signal Sweep: Testing all 32 digital inputs with 24V DC signal generators to confirm voltage threshold compliance, low signal leakage, and yellow status LED actuation per channel.
4. 50 kHz High-Speed Input Check: High-frequency pulse simulation on channels I24 and I25 to verify accurate counter logic.
5. Anti-Static Enclosure: Cleaned with static-safe solvent and sealed inside ESD-shielded packaging with desiccant.

DI524

Technical Field Guide & Common Pitfalls

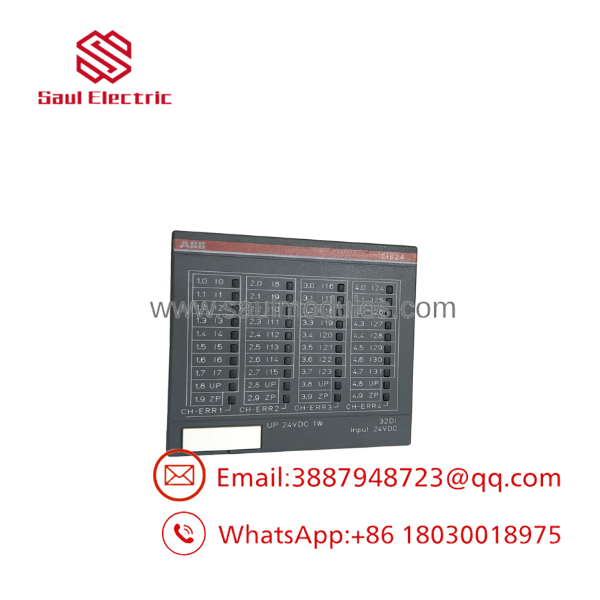

Process Power Connections (UP / ZP): Process power must be supplied directly to the terminal unit supply pins (Terminals 1.8, 2.8, 3.8, 4.8 for +24V UP, and 1.9, 2.9, 3.9, 4.9 for 0V ZP). The internal CPU bus logic does not supply field power to the inputs.

• Vertical Mounting Derating: Standard horizontal mounting supports ambient temperatures from 0°C to +60°C. If the module is installed on a vertically oriented DIN rail, operating temperature is limited to +40°C max.
• 1-Wire Connection Base Units: The module uses 1-wire connection topology (all 32 input channels share common 0V references on the terminal block). Select a compatible S500 terminal unit (such as TU515 or TU516) designed for 32-point 1-wire field cabling.
• Software Input Delay Config: If using fast optical sensors, adjust the configurable input delay filter in Automation Builder down from the default 8 ms to avoid missing short-duration pulses.

Frequently Asked Questions (FAQ)

Q: What is the main difference between ABB and DC532?

A: The provides 32 dedicated digital inputs (1-wire), whereas the DC532 provides 16 fixed inputs plus 16 configurable input/transistor output channels.

Q: Can I use the in harsh or extreme environment conditions?

A: For extended operating temperatures (-40°C to +70°C), corrosive gases, or high vibration, specify the extreme conditions variant (1SAP440000R0001).

Q: Does the include the terminal base in the box?

A: No. 1SAP240000R0001 covers the electronics module insert. The S500 terminal unit base (TU5xx) must be selected and purchased separately based on cabinet wiring preferences.

Q: What warranty applies to this module?

A: All modules—supplied as New Surplus or Factory Sealed—include a full 12-month advance replacement warranty.
