ABB IMFEC12 15 Channel Analog Input Card 1-5V 4-20mA

Description

Product Introduction

The ABB Bailey IMFEC12 is a 15-channel analog input module designed for the INFI 90 and Net 90 Distributed Control Systems (DCS). It processes high-density analog signals—such as 1-5 VDC, 0-10 VDC, or 4-20 mA loops with drop resistors—directly from transmitters, flowmeters, and process transducers. Plant operators rely on it across power generation, chemical, and refining facilities.

Unlike standard single-channel cards, the IMFEC12 handles 15 independent inputs on a single backplane slot, saving space in tight control cabinets. Its onboard microprocessor handles signal linearizing and analog-to-digital conversion before transmitting data over the module bus to the Field Control Unit (FCU). This reduces CPU load and keeps scan times tight across critical process loops.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

It is 2:15 AM on a Sunday. A coal-fired plant loses its primary feedwater flow monitoring loop because an old channel driver on an analog card blew out. Boiler trip alarms sound, the plant drops load, and every minute off-grid costs thousands of dollars. The duty technician pulls up diagnostic lights on the rack, pinpoints a dead IMFEC12 card, swaps in a pre-tested replacement, verifies jumper settings, and brings the loop back online before steam pressure drops below critical limits.

• Power Generation – Turbine Lube Oil & Feedwater Monitoring – Requires fast 12-bit signal conversion to prevent trips during load swings.
• Oil & Gas Refining – Distillation Column Pressure & Temp Sensing – Processes 4-20 mA signals from explosive-zone transmitters through barrier blocks.
• Pulp & Paper – Black Liquor Recovery Boiler Control – High-density 15-channel monitoring reduces cabinet footprint in packed motor control centers.
• Water & Wastewater – Pump Station Head Pressure Measurement – Handles long signal runs with solid common-mode noise rejection.

Transparency SOP: Quality Assurance & Testing

We don’t just ship boxes; we test them on actual ABB Bailey MMU racks.

1. Inbound Inspection: Physical check for trace cracks, trace oxidation, damaged edge connectors, missing jumpers, or altered components.
2. Live Rig Testing: Slotted into an INFI 90 Module Mounting Unit (MMU) connected to an active controller. Power-on self-test (POST) monitored via diagnostic lights.
3. Electrical Parameter Checks: Precision signal generator feeds 1.000 VDC, 3.000 VDC, and 5.000 VDC across all 15 channels. We log conversion values to ensure all channels fall within ±0.1% accuracy.
4. Firmware Verification: Board revs, ROM chips, and dip switch/jumper configurations are documented and logged prior to packaging.
5. ESD Protection: Cleaned with non-conductive solvent, double-wrapped in MIL-SPEC anti-static bags, and packed in high-density foam shipping containers.

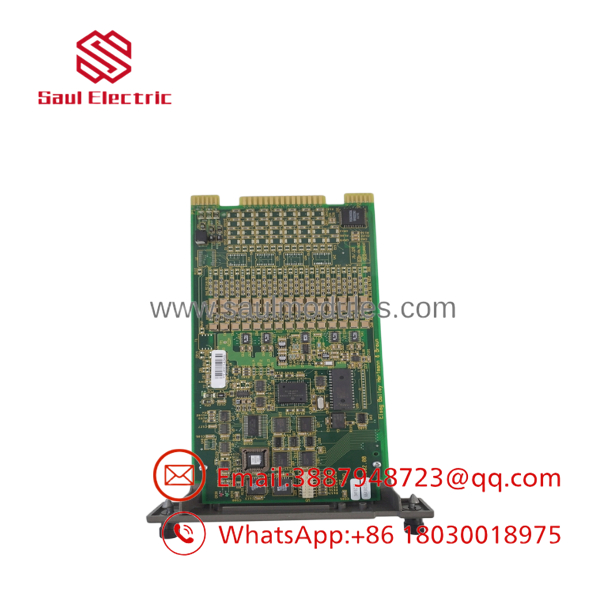

IMFEC12

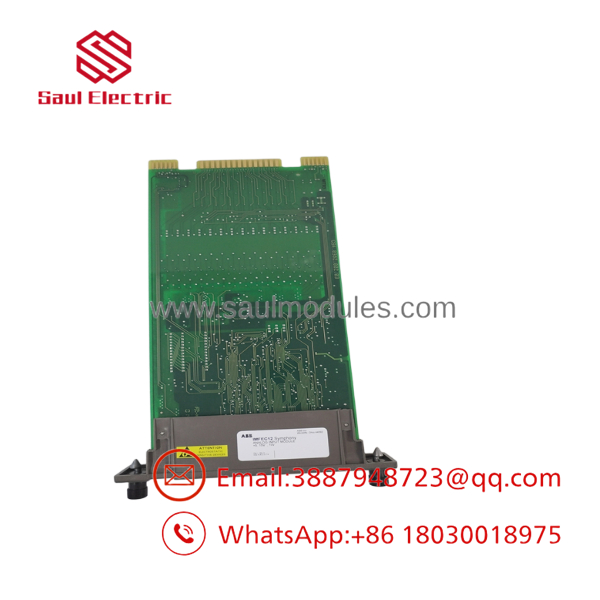

IMFEC12

The Veteran’s Tech Trap Guide (Crucial Value-Add)

• ⚠️ Check the Dip Switch and Jumper Configurations BEFORE Slotted Installation!

  Don’t pull the old card out and drop the new one in blind. Set the jumpers on the replacement IMFEC12 card to match the exact input ranges (1-5V vs 0-10V) of the card you are pulling. If set incorrectly, you will peg your DCS inputs at maximum or read zero signal. Take a photo of the jumpers on the old board before pulling it. Trust me.

• ❗ Precision Drop Resistor Placement for 4-20mA Loops

  The natively reads voltage. If your field transmitters output 4-20 mA, you must have 250-ohm precision resistors (0.1% tolerance recommended) installed on the field termination block (NTDI unit). If a channel reads 0 mA or fails after a card swap, check if someone knocked the resistor loose or damaged the shunt during terminal wiring.

• ⚠️ Watch for Backplane Bus Pin Bending

  When inserting the card into the INFI 90 MMU backplane, slide it slowly along the plastic guides. Forcing the card in at an angle will bend or snap the gold-plated connector pins on the backplane, turning a simple 5-minute card swap into a full cabinet shutdown.

• ❗ Grounding and Common Mode Voltage Limits

  Keep your common-mode voltage between channels below 5 VDC. Ground loops between isolated transmitters will drift your readings across multiple channels on the card simultaneously.

Frequently Asked Questions (FAQ for Conversion)

Q: Is the hot-swappable?

A: No. While the INFI 90 system is rugged, pulling an module under load without proper field loop isolation can trip associated control algorithms or cause backplane voltage spikes. Always power down the slot or safely isolate loops in the software before removing the card.

Q: What is the difference between and IMFEC11?

A: The is an updated high-density analog input module offering better noise immunity, tighter component tolerances, and revised onboard processing logic compared to older IMFEC11 cards. They are generally drop-in replacements, but you should verify termination unit compatibility in your OEM manual.

Q: Can I use this card with 4-20 mA current transmitters?

A: Yes. You must install a 250 Ω drop resistor across the input terminals on the termination block (such as an NTDI01/NTDI02) to convert the 4-20 mA loop current into a 1-5 VDC signal that the reads.

Q: Are these units brand new from ABB?

A: ABB has discontinued the legacy Net 90 / INFI 90 series. Our inventory consists of high-grade New Surplus (unused factory spares) and fully refurbished, bench-tested surplus units pulled from working systems.

Q: What warranty comes with these modules?

A: Every module includes a full 12-month replacement warranty. If a channel drifts out of spec or fails within one year of purchase, we replace the board immediately from our stock.
