Description
Key Technical Specifications
| Parameter | Value |
| Manufacturer | ABB / Bailey Controls |
| Model Number | PHARPS32000000 |
| Alternate Designation | F8-G2B3B6 / P-HA-RPS-32000000 |
| System Architecture | Modular Power System III (MPS III) for Infi 90 / Symphony Plus |
| Input Voltage Range | 90 to 264 V AC (Single Phase) or 102 to 270 V DC |
| Input Frequency | 47 to 63 Hz |
| Maximum Input Current | 11.5 A |
| Apparent Power Rating | 1150 VA |
| DC Output Rail 1 | 5 V DC @ 60 A |
| DC Output Rail 2 | +15 V DC @ 3 A |
| DC Output Rail 3 | -15 V DC @ 3 A |
| DC Output Rail 4 | 24 V DC @ 17 A |
| Cooling Method | Integrated forced-air internal fans |
| Dimensions (W x H x D) | 635 mm x 330.2 mm x 228.6 mm (25.0 in x 13.0 in x 9.0 in) |
| Net Weight | 5.90 kg (13.0 lbs) |
Product Introduction

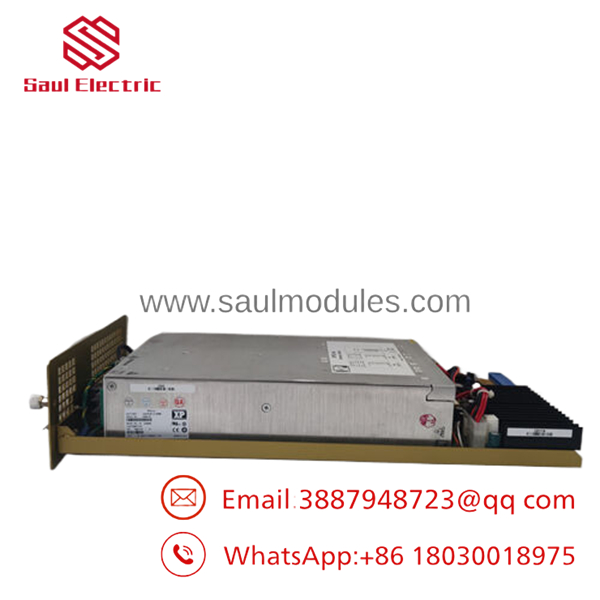

The ABB PHARPS32000000 is a heavy-duty, multi-output DC power supply module from the Modular Power System III (MPS III) family, engineered explicitly for legacy Bailey Infi 90, Symphony Harmony, and Symphony Plus Distributed Control Systems (DCS). It serves as the primary power foundation for critical control room cabinets, converting raw AC mains power into four separate, highly regulated DC voltage rails simultaneously.
This single-chassis power assembly drops directly into standard system power trays, supplying high-amperage 5 V DC logic power alongside balanced \pm15 V DC analog rails and a dedicated 24 V DC field device loops supply. Because a single module runs your entire rack’s processors, I/O nodes, and transceivers, it eliminates the need for messy, non-isolated point-of-load step-down converters, ensuring low-noise, 24/7 continuous operation in severe processing environments like chemical plants, paper mills, and power generation stations.
Troubleshooting Quick Reference
| Symptom | Possible Cause | Relevance to this Part | Quick Check Method | Recommendation |
| Complete cabinet dropout; all module LEDs dark | Lost AC feed or tripped primary input breaker | ❌ Low | Test input terminals with a digital multimeter for active 120/230 V AC voltage. | Check upstream power distribution panel and main tray fuses. |
| DCS rack backplane logic dead; analog cards still powered | 5 V DC logic rail failure inside the module | ✅ High | Measure backplane voltage pins for exactly 5.0 V DC. Check if the internal cooling fans are stuck. | The 60 A logic output is compromised. Replace the entire power supply module immediately. |
| Intermittent “Module Missing” or communication drops | Cross-loading or sagging 24 V DC field loop rail | ✅ High | Verify total current draw on the 24 V line using a clamp meter. Ensure it does not exceed 17 A. | If current draw is under 17 A but voltage drops below 21 V DC under load, swap the module. |
| System throws over-temperature warnings | Clogged internal air paths or internal fan bearings seized | ✅ High | Check for physical airflow at the module exhaust vents. Feel the chassis exterior for excessive heat. | Power down the tray and replace the module to avoid catastrophic component cook-off. |
Note: If you run into complex backplane dipping or multi-tray synchronization faults, pull your historical bus error logs. Please contact our industrial technical support team with photographs of your backplane jumper layout for verification.
- PHARPS32000000
Frequently Asked Questions (FAQ)
Q: Is the PHARPS32000000 hot-swappable if it is running in a redundant configuration?
A: Yes, if your Bailey MPS III power tray is specifically configured for diode-or’d N+1 parallel redundancy, you can slide out a failing PHARPS32000000 module while the system is live. The remaining online units will instantly pick up the load. However, make sure you disengage the primary chassis locking screws and power down the module’s localized breaker before physically breaking the backplane connection to avoid pin degradation.
Q: My original unit is labeled F8-G2B3B6. Is this exactly identical to the PHARPS32000000?
A: Yes. F8-G2B3B6 is the internal hardware manufacture code designated by the OEM, while PHARPS32000000 is the catalog ordering part number for the exact same MPS III power assembly. They are a 100% direct drop-in swap with the exact same 1150 VA rating and multi-rail output architecture.
Q: Why does this supply output \pm15 V DC along with standard 5 V and 24 V rails?
A: The Bailey Infi 90 line uses advanced analog processing cards that require balanced dual-rail positive and negative 15 V DC lines to cleanly handle precise instrumentation signals without clipping or tracking offsets. Newer PLC systems typically rely only on 24 V DC, but legacy DCS networks require this multi-rail layout to run high-precision analog field loops and old operational amplifier circuits.
Q: Are these units tested under full real-world load before shipment?
A: Every single module from our surplus stock undergoes a mandatory 24-hour heat-chamber burn-in on a dedicated test rack. We draw full load currents across all four rails simultaneously (60 A on the 5 V rail, 17 A on the 24 V rail, and 3 A on both 15 V rails) while monitoring thermal output and voltage ripple with a Fluke oscilloscope to confirm it meets original factory specifications.
Q: What is the storage shelf-life of these legacy power supplies?
A: Because these modules utilize large electrolytic smoothing capacitors on the input and output stages, they should not be left sitting on a cold shelf indefinitely. Electrolytic capacitors can dry out or deform if left unpowered for more than 3 to 5 years. Our stock undergoes routine bench-reforming and testing to ensure they stay active and ready for immediate deployment when an emergency shutdown strikes your plant.
We maintain these high-capacity Infi 90 power units in our warehouse to insulate process plants from costly extended downtime. Would you like me to verify our immediate stock availability and coordinate express courier shipping options for your site?
