Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | ABB |
| Model | REF542PLUS |
| Order Code | 1VCR007346 |
| Product Type | Numerical protection and control relay |
| Series | REF542plus |
| Product Status | Not active product since 2020 |
| Primary Use | Feeder, transformer, and motor protection |
| Supply Voltage | 24 V to 250 V DC, or 110 V to 240 V AC depending on configuration source |
| Communication | IEC 61850, Modbus TCP/IP, Modbus RTU, Profibus |
| Protection Functions | Overcurrent, earth fault, thermal overload, voltage protection, differential protection |
| I/O | Up to 16 digital inputs and 8 outputs in vendor listings |
| Mounting | Panel-mounted / switchgear-compatible |
Product Introduction & Supply Chain Strategy
ABB REF542PLUS 1VCR007346 is a multifunction feeder terminal used for protection, control, measurement, and self-diagnostics in medium-voltage switchgear. ABB states the REF542plus is a compact digital bay control solution and notes the product is not active since 2020.
That lifecycle status makes this a classic last-time-buy and buffer stock item, not a casual replenishment part. If your plant still runs REF542plus panels, the right strategy is controlled New Surplus stocking to reduce stock-out risk while avoiding excess obsolete inventory.

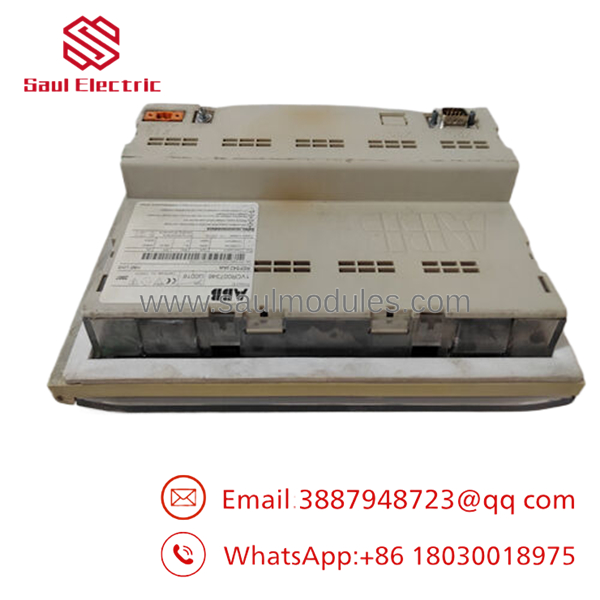

- REF542PLUS 1VCR007346

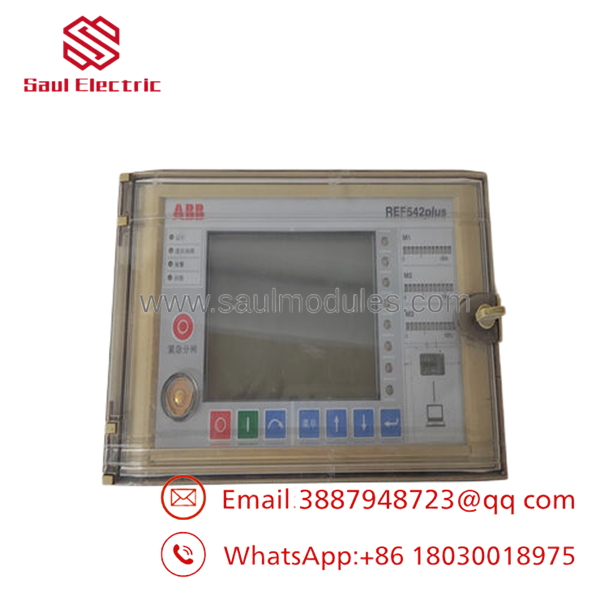

- REF542PLUS 1VCR007346
Installation & Configuration Guide
Stage 1: Pre-Installation
Lock out and tag out the switchgear before any work begins. Use an ESD wrist strap, insulated hand tools, and a camera to record terminal wiring, parameter settings, and any HMI or communications labels. Confirm the exact relay type, CT/PT ratios, and scheme logic before removal.
Stage 2: Removal
De-energize the bay unless your site procedure explicitly allows live work on that architecture. Release the relay evenly and pull it straight out to avoid stressing connectors or adjacent terminal blocks. Do not force the unit if cable slack or panel trim is limiting movement.
Stage 3: Installation
Replicate the old settings exactly, including protection curves, I/O mapping, and communication addresses. Seat the unit fully and tighten the panel hardware in sequence. Reconnect control wiring only after confirming terminal numbers and wiring diagrams line up with the original record.
Stage 4: Power-On & Testing
Restore auxiliary power and confirm the supply is stable before commissioning. Check LEDs, display behavior, and event logs, then perform a secondary-injection or functional test if your procedure requires it. Verify trip circuits, interlocks, and communication links before returning the feeder to service.
Firmware/Software Versions & Upgrade Notes
ABB’s documentation confirms the REF542plus platform and its configurable software model, but the exact firmware revision depends on the specific unit and legacy project environment. The safe practice is to match the replacement relay to the existing firmware and protection settings before energizing.
Avoid upgrading or downgrading firmware during a hardware swap unless ABB compatibility data for your exact station architecture confirms it. A mismatch can alter protection behavior, communications, or downloaded settings, which is especially risky in a medium-voltage bay.
Frequently Asked Questions
Is this really new?
Yes, the correct procurement position is New Surplus / Original New, not refurbished. That means traceable OEM inventory, intact packaging, and QC verification before shipment.
Why is it cheaper than OEM new but higher than refurb?
New Surplus usually comes from excess OEM inventory or controlled release stock. It sits below OEM list pricing, but above mixed-condition stock because it carries better traceability and lower risk.
Is REF542PLUS obsolete?
Yes, ABB lists REF542plus as not active product since 2020. That makes it a lifecycle-sensitive spare and a strong candidate for strategic stocking.
Can I hot-swap it?
Only if your switchgear design and site procedure explicitly allow it. For most MV applications, plan a controlled outage and follow your protection commissioning steps.
Will my settings stay intact?
Do not assume settings retention without verification. Back up the relay file, protection curves, and communication parameters before removal, then confirm them after installation.
What warranty should I expect?
Warranty terms depend on the supplier and QC package. For New Surplus protection relays, ask for serial traceability, test records, and a written warranty period tied to shipment.
