Description
Key Technical Specifications
- Article Number: 3BSE030928R1
- Package Contents: SM810 module with TP855 baseplate
- Microprocessor: MPC862P at 96 MHz
- Memory: 32 MB RAM
- Dimensions: W 59 x H 185 x D 127.5 mm
- Weight: 700 g (package)
- Power Supply: 24 V DC
- Safety Integrity: Supports SIL1-SIL2 operations with PM865
- Function: Advanced diagnostics and monitoring of controller execution
- Mounting: CEX-Bus compatible in AC 800M systems
- I/O Support: Digital input/output supervision signals
- Redundancy: Supported in paired configurations
Product Introduction & Supply Chain Strategy
The ABB SM810K01 3BSE030928R1 is a safety CPU module kit designed for the AC 800M high-integrity controller platform. It provides supervision of the main controller during SIL 1-2 safety applications, delivering diagnostics, force monitoring, and alarm outputs in process safety systems within System 800xA environments.
Securing this as New Surplus supports better total cost of ownership by minimizing stock-out risks on safety-critical spares that often face long lead times or discontinuation. It eliminates the secondary costs of unexpected failures from refurbished modules, such as degraded supervision logic that could compromise safety functions. Maintain buffer stock of 1-2 units to protect plant reliability while controlling carrying costs.

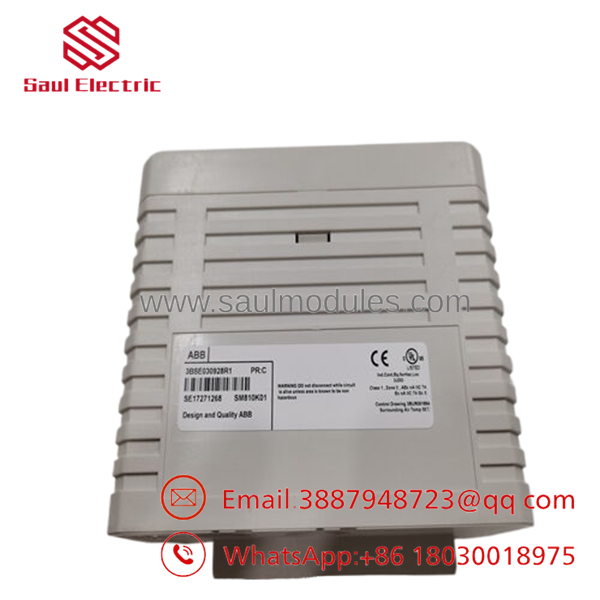

- SM810K01 3BSE030928R1

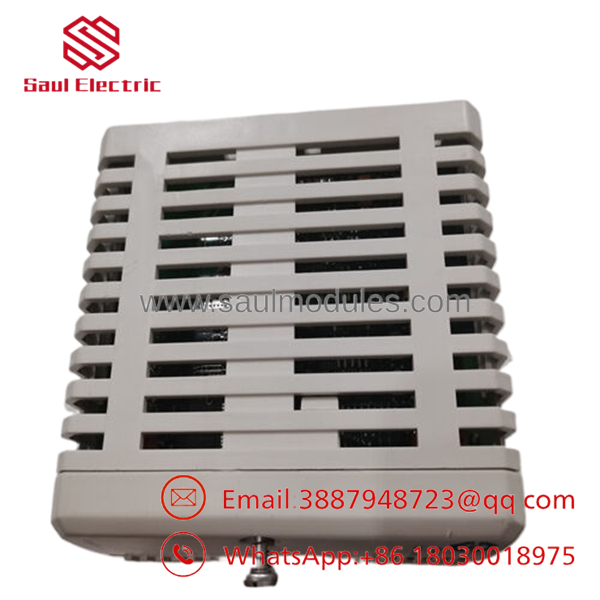

- SM810K01 3BSE030928R1
Installation & Configuration Guide
Stage 1: Pre-Installation (Prep & Safety) Lock-out and tag-out the controller system. Wear a grounded ESD wrist strap. Photograph the existing module’s DIP switches, wiring, CEX-Bus connections, and LED status. Verify power supply rails and prepare backup of safety application logic.
Stage 2: Removal Power down the system. Gently remove the old SM810 module from the CEX-Bus using extraction tools to avoid damaging pins. Disconnect any associated input/output wiring and note terminal positions.
Stage 3: Installation (Clone & Seat) Set any configuration jumpers or switches to match the original exactly. Seat the new SM810K01 module firmly onto the TP855 baseplate and CEX-Bus until fully engaged. Reconnect all wiring precisely.
Stage 4: Power-On & Testing Apply power and check for normal LED indications. Monitor supervision signals (force active, system alarm). Perform controller diagnostics and verify safety function monitoring. Download or restore the safety application if needed.
Firmware/Software Versions & Upgrade Notes The SM810K01 operates with the host AC 800M controller firmware. Match the firmware version on your PM865 or compatible controller to the one documented for your safety application.
Firmware mismatches between the safety module and main controller can cause supervision failures or integration issues. Always verify versions before replacement. Upgrading controller firmware after installing the new module may enhance diagnostics but requires complete validation of safety loops. Downgrading firmware increases compatibility risks.
Frequently Asked Questions (FAQ)
Is the SM810K01 3BSE030928R1 truly new? Yes. This is New Surplus stock from authorized channels — never field-installed, with original packaging opened only for quality checks. It delivers OEM-level reliability.
Why pay more than refurbished prices? Refurbished safety modules carry hidden risks like aged components that can fail during critical supervision. Our New Surplus units provide longer lifespan and full warranty, reducing the chance of costly safety-related downtime.
Is this module obsolete? It serves legacy AC 800M safety systems that remain in operation. We advise strategic stocking of 1-2 units as an insurance policy against future availability gaps.
Can this be hot-swapped? Follow standard procedures for safety modules. Power down where possible to ensure proper seating and avoid risks to the CEX-Bus or safety logic. Always use ESD protection.
What warranty do you offer? We back this New Surplus module with a 1-2 year warranty, supported by QC test reports, serial verification, and functional testing.
Does it support redundant configurations? Yes. The works in redundant setups with paired controllers for higher availability in SIL-rated applications. Confirm your system architecture matches.
How do I verify compatibility with my PM865? Check your current controller firmware and safety application against ABB documentation for the SM810. Our units include traceability to ensure seamless integration.
