ABB SYN5202 SYNCHROTACT 5 Dual-Channel Synchronizing Unit

Description

Key Technical Specifications

Product Introduction & Supply Chain Strategy

The ABB SYN5202 is a high-reliability, automatic dual-channel synchronization and paralleling device belonging to the esteemed fifth-generation SYNCHROTACT 5 family. Deployed widely across thermal power plants, hydroelectric stations, diesel generator sets, and industrial co-generation facilities, its primary function is to safely govern the closure of power circuit breakers. It bridges a generator with a live transmission line, or hooks two synchronous utility grids together. The unit computes precise mathematical alignments between Line/Bus voltage (U1​) and Generator voltage (U2​), feeding active corrective pulses to the automatic voltage regulator (AVR) and speed governor (GV) until voltage, frequency, phase angle, and slip conditions are completely optimized.

From a critical asset perspective, securing the SYN5202 as a New Surplus unit directly protects your power asset lifecycle while lowering Total Cost of Ownership (TCO). Since incorrect out-of-phase paralleling can cause catastrophic torque strain that twists generator shafts, destroys stator insulation, or trips upstream substation transformers, using anything less than factory-level component reliability is dangerous. Refurbished synchronizers are vulnerable to microprocessing component failures, aging display screens, or drifted A/D converters that can bypass critical safety parameters. Sticking strictly with zero-hour, verified new surplus hardware provides a secure 10–15 year station life, preserving grid stability and avoiding catastrophic mechanical teardowns.

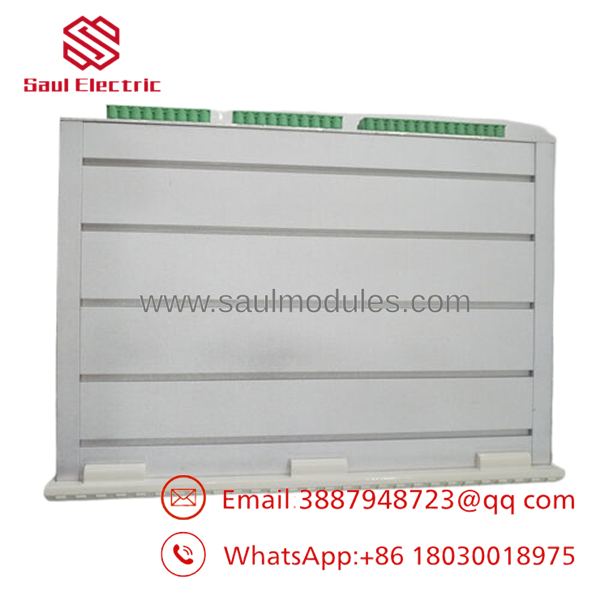

SYN5202

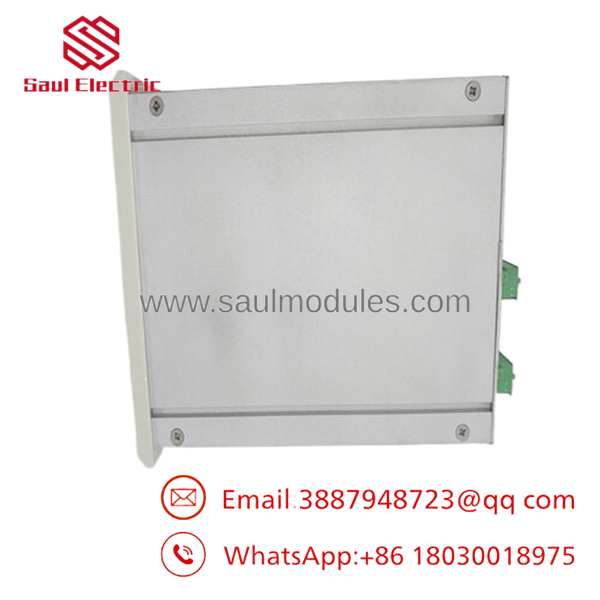

SYN5202

Installation & Configuration Guide

Stage 1: Pre-Installation (Prep & Safety)

1. Verify the entire generator control bay panel is dead and tag out all primary PT (potential transformer) secondary lines and breaker control loops. CRITICAL: Short or isolate the input voltage lines to avoid accidental backfeeding hazards.
2. Fasten a grounded ESD wrist strap to your forearm and latch it to the unpainted rack earth bar.
3. Keep your laptop at the ready with the standard ABB SynView setup software package installed, and ready a standard Cat5e crossover Ethernet cable.

Stage 2: Removal

1. Unfasten all terminal connection strips from the rear of the plug-in casing, taking care to mark line tags for U1​ (Bus) and U2​ (Generator) phases.
2. Loosen the front mounting bezel screws securing the horizontal frame to the switchboard cutout plate.
3. Slide the 4.0 kg module housing horizontally out of the control panel door slot, ensuring you don’t nick any wire groups inside.

Stage 3: Installation (Clone & Seat)

1. Insert the new surplus into the existing W×H panel cutout (221 mm×163 mm).
2. Hand-tighten all front frame retention hardware to seal the unit flat against the panel face (securing its IP54 dust rating).
3. Plug the rear wiring terminal harnesses firmly back onto their designated pins, ensuring all screw blocks are fully torqued down.

Stage 4: Power-On & Testing

1. Reapply auxiliary DC logic power (ranging between 24 V and 250 V depending on the specific sub-model configuration variant).

   Fengyun Automation

2. Connect your service laptop via the Ethernet port to download your validated parameter configuration file. If coordinating multiple breakers, configure parameter profiles 1 through 7 to match each circuit breaker’s specific response time.
3. Run the hardware’s internal “TEST U-Match” and “TEST f-Match” commissioning procedures. This lets you monitor simulated scaling adjustments without pulsing live breaker coils, confirming full operational safety before starting the generator.

Firmware/Software Versions & Upgrade Notes

The runs advanced, diverse tracking firmware divided across two physically isolated internal channels (the SYN 5011 processor board and specialized I/O processing blocks). This dual-channel design ensures that the master synchronizer logic runs a completely distinct firmware layer from the synchrocheck monitoring channel. This architecture protects your generator from out-of-phase closing even if a catastrophic software glitch freezes one of the internal microprocessors.

When deploying a new surplus module, verify your existing parameters match using the SynView software suite. If replacing an older module with a different sub-assembly version suffix (such as transitioning from an un-coated variant to a newer coated environment board), always pull a complete system diagnostic dump first. Do not attempt to alter the core internal dual-channel calibration registers unless the generator is fully disconnected from the power grid, as changing internal scaling parameters on a live loop can cause an immediate watchdog reset and drop the entire synchronization node.

Frequently Asked Questions (FAQ)

Is this unit factory new or a refurbished pull?

This unit is a guaranteed New Surplus item. It has never been installed in a working turbine bay, deployed in an active substation panel, or repaired. Every component is held in climate-controlled storage and opened solely for our inbound physical quality checks. We do not sell used or refurbished hardware.

Why does a new surplus command a premium over a standard repaired/refurbished unit?

Synchronizers are the ultimate protection barrier between your generator and a catastrophic short-circuit event. A refurbished synchronizer might pass basic workbench diagnostic tests but possess aged components inside its output paralleling relays. If an old relay sticks or drops out of calibration by just a few milliseconds, it can close the breaker out of phase, twisting your generator shaft and causing millions of dollars in damages. Sourcing a new surplus unit provides fresh, zero-hour safety parameters that eliminate these risks.

What is the exact operational difference between the ABB SYN5201 and this model?

The SYN5201 is a single-channel automatic synchronization device. The is an advanced dual-channel device featuring two completely separate microprocessor chips running distinct firmware logic blocks. The second channel functions as a built-in, independent Synchrocheck monitor connected in series with the main channel. The circuit breaker will only close if both channels independently confirm that the grid parameters match, providing a critical layer of safety.

Can one single device handle multiple separate circuit breakers?

Yes. The internal memory allocation on the allows you to configure up to 7 independent parameter sets. This feature allows one unit to manage up to 7 distinct paralleling points or circuit breakers, provided you externalize the analog input switching paths to isolate the respective potential transformers.

What warranty terms apply to this legacy protective relay?

We provide a comprehensive 1-year warranty on this New Surplus module, starting from the day it leaves our shipping center. This policy matches original OEM warranty parameters, providing dependable safety and security for your spare parts inventory.
