ABB YPO104 YT204001-BL Digital Output Connection Unit

Description

Key Technical Specifications

Product Introduction & Supply Chain Strategy

The ABB YPO104 YT204001-BL is a dedicated digital output connection and interface unit engineered for legacy ABB distributed control systems (DCS), excitation setups, and industrial drive networks. Positioned between low-voltage internal processing registers and high-demand plant field equipment, this module converts sensitive internal binary commands into ruggedized, isolated output states. It safely triggers external inductive components—such as solenoid valves, trip relays, contactors, and remote indicator clusters—while keeping hazardous feedback spikes isolated from the master logic architecture.

From an operations and inventory lifecycle viewpoint, securing a New Surplus YPO104 is an essential approach to asset management. Because output connection modules bear the physical load of switching inductive field devices, they face significant aging risks. Opting for low-cost refurbished boards introduces hidden micro-stresses, pitting along relay contacts, or weakened optocouplers that can fail when grid loads vary. Storing a verified New Surplus YPO104 provides a zero-hour backup card that ensures exact loop activation speeds and maintains full plant reliability without the multi-million dollar overhead of an unneeded system overhaul.

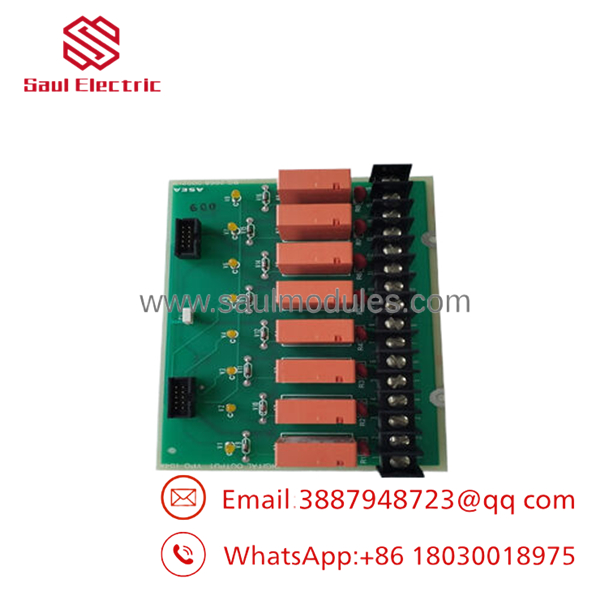

YPO104

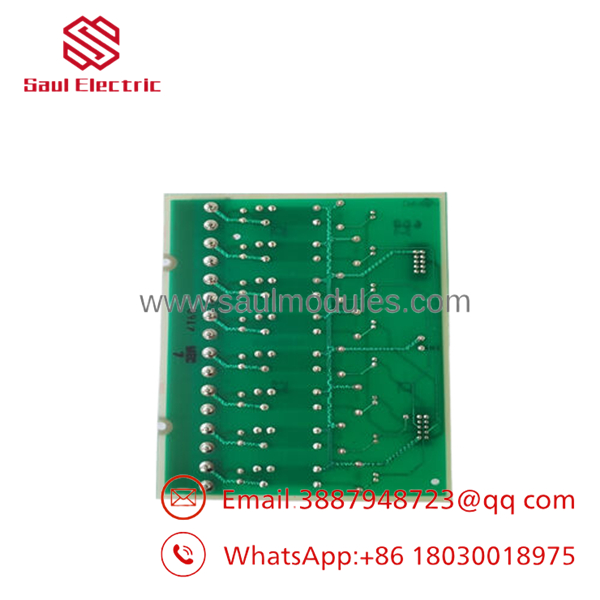

YPO104

Installation & Configuration Guide

Stage 1: Pre-Installation (Prep & Safety)

1. Set the primary processing controller or related interlocking loops into a safe override or bypass state.
2. Isolate the main control cabinet rack power rail and apply full lock-out/tag-out (LOTO) protocols.
3. Confirm that all external power supplies connected to the output contacts are fully de-energized with a calibrated multi-meter.
4. Wear a grounded, static-shielded wrist strap to safeguard the delicate solid-state switching logic on the module board.

Stage 2: Removal

1. Systematically label each wire leading into the output terminal array to preserve channel assignments.
2. Unfasten the termination screws carefully, withdrawing the wires without applying physical pull stress to the internal printed circuit board.
3. Loosen any captive frame screws or release the tracking retention tabs pinning the chassis against the mounting base.
4. Smoothly pull the board outward along its alignment guides and slide it directly into an anti-static safety enclosure.

Stage 3: Installation (Clone & Seat)

1. Verify that the replacement matches the exact part number and catalog configuration (YT204001-BL) of the original component.
2. Position the module over the designated guide rails, pushing evenly until the assembly locks firmly into place against the continuous panel ground trace.
3. Re-terminate each field wire into its correct screw terminal location, checking that no loose copper strands bridge adjacent channels.
4. Gently torque down the terminal fasteners to lock in a vibration-resistant connection footprint.

Stage 4: Power-On & Testing

1. Verify the immediate workspace is clear of debris and re-apply internal 24 V DC control power, leaving the external actuator power loops isolated.
2. Audit the system status panel to confirm the replacement connection unit logs onto the local automation bus cleanly with zero initialization faults.
3. Remove the LOTO constraints on the external loop supplies, activate the field devices through a manual diagnostic command sequence, and verify the physical equipment reacts with no timing delay.
4. Disengage diagnostic overrides and secure the panel enclosure doors to lock in proper ambient operating conditions.

Firmware/Software Versions & Upgrade Notes

The YT204001-BL functions as a hardware-defined terminal conditioning and interface unit. It contains no operating systems, flash memory download tracks, or runtime parameter profiles requiring software utility configuration.

Because its operational parameters are fixed by hardware design, you must secure a precise part number match (YT204001-BL) during a replacement event. Substituting variants with alternative suffix markings can alter internal trace paths or output ratings, creating logic processing issues or premature component failures within the drive’s output circuit.

Frequently Asked Questions (FAQ)

What is the exact difference between this New Surplus module and a standard used alternative?

This is an unused, authentic original component sourced from strategic industrial surplus stores. It has spent zero hours in active service and features completely fresh electrical traces, intact contact suppression networks, and zero thermal degradation. Used or refurbished alternatives often carry hidden wear from years of high-vibration and high-heat operation, making them prone to early failure.

Does the require a parameter file upload or field software commissioning?

No. The unit operates purely through fixed hardware configurations. Once the module is secured inside the enclosure track and wired according to your system blueprint, it begins functioning immediately when system power is restored. No software setup or parameter tuning is necessary.

What are the operational risks of using a refurbished digital output card?

Output cards often switch inductive loads, which exposes internal components to continuous micro-arcing and heat generation. Refurbished units frequently suffer from degraded contact surfaces or weakened isolation barriers. If an aged isolation channel breaks down, a high-voltage field surge can backfeed into your main controller, causing extensive damage and an expensive plant shutdown.

Can this card be mounted on standard DIN rail or does it require a custom rack?

The features a housing design intended for integration within standard industrial control cabinet spaces. Depending on your specific rack revision, it can mount directly into custom multi-slot nests or adapt onto structural paths using standard factory frame clips.

What parameters are covered under the 2-year warranty package?

Our comprehensive 1-year warranty covers all potential component defects, material failures, and channel processing anomalies. If any output circuit experiences signal transmission failure or isolation loss during standard operation within the 1-year window, we will issue an immediate replacement unit or initiate a full financial refund.
