Alcatel-Lucent 3KC70693AA 02 Optical Line Card

Description

Product Introduction

The Nokia / Alcatel-Lucent 3KC70693AA 02 (base code 3KC70693AA) is a specialized, carrier-grade telecommunications interface module engineered for core transport and service routing infrastructure. Designed to operate in high-density central office environments, this circuit board processes complex optical or packet-based traffic, ensuring low-latency data transport across regional metro networks and long-haul backbones.

Featuring robust hardware-based processing, integrated backplane communication links, and advanced thermal management, the 3KC70693AA 02 handles continuous 24/7 operation under heavy network loads. Its modular, hot-swappable architecture allows service providers to expand capacity or replace faulty nodes without taking entire subracks or neighboring transport channels offline.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

Picture this: It’s 1:45 AM during a critical maintenance window at a regional telecom hub. An optical transponder card or interface card in a core node subrack experiences an ASIC hardware failure, dropping redundant optical transport links for high-capacity enterprise customers. Replacing the module requires a precise drop-in swap. Having a verified 3KC70693AA 02 replacement pre-staged in local spare inventory allows field engineers to unlatch the failed card, slide in the new unit, and allow the shelf controller to sync boot parameters—restoring network traffic paths in minutes.

• Core Optical & Packet Transport Networks – Manages high-throughput data aggregation across regional fiber backbones and DWDM rings.
• Carrier Ethernet & Mobile Backhaul – Provides stable, low-jitter transport links connecting 4G/5G cell site aggregation points to primary core centers.
• Mission-Critical Utility & Transportation Infrastructure – Deployed in high-availability private networks (power grids, rail transport) where hardware reliability and hot-swap capability are mandatory.

3KC70693AA 02

3KC70693AA 02

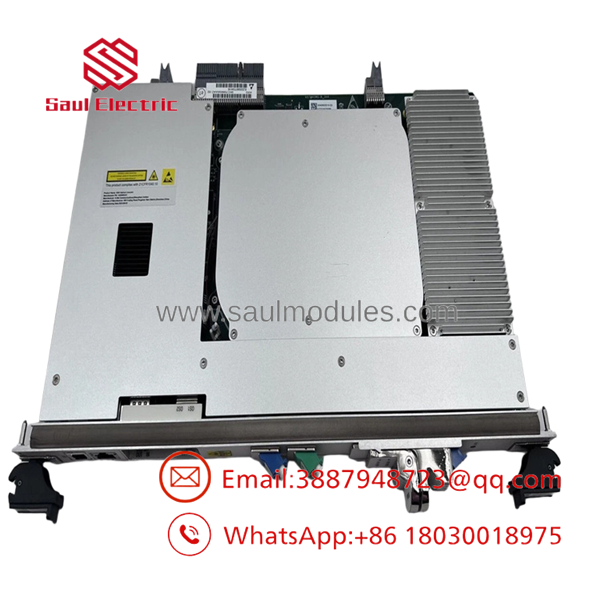

3KC70693AA 02

Transparency SOP: Quality Assurance & Testing

Every module undergoes a strict multi-point bench test before dispatch:

1. Physical & Component Inspection: Comprehensive visual audit of all faceplate latches, backplane pin blocks, optical cage assemblies, and surface-mount components to ensure zero physical stress or ESD damage.
2. Chassis Insertion & Boot Test: Installed into a compatible test chassis to verify clean EEPROM recognition, correct serial number reporting, and fault-free software initialization.
3. Full-Traffic Stress Verification: All communication channels are stress-tested with BERT (Bit Error Rate Testing) and sustained high-bandwidth traffic generators to confirm zero packet drop or signal attenuation.
4. Thermal & Voltage Rail Diagnostics: System logs verified to confirm stable voltage regulators and normal operating temperature ranges under load.
5. ESD Cleaning & Protective Packaging: Discharged of static, fitted with dust plugs in all open port cages, sealed in anti-static ESD shielding bags, and packed in thick custom foam shipping boxes.

The Veteran’s Tech Trap Guide (Crucial Value-Add)

• ⚠️ Verify Software / Firmware Release Level!

  Before seating the 3KC70693AA 02 into an active subrack, confirm that the shelf controller’s operating software supports revision 02 of this part number. Inserting a card revision that post-dates your active node software can trigger Provisioning Mismatch or Card Hardware Unsupported system alarms.

• ❗ Inspect Backplane Connectors Prior to Seating

  Carrier line cards utilize high-density multi-pin backplane headers. Always visually inspect the backplane pins inside the chassis slot and the connector on the 3KC70693AA 02 for bent pins or contamination before inserting. Guide the card smoothly along the slot rails and use the ejector handles to lock it into place—never force the module in.

• ⚠️ Strict ESD Grounding Protocols Required

  Telecom line cards house high-density ASICs highly sensitive to electrostatic discharge. Always attach a grounded ESD wrist strap to the chassis ESD grounding jack before handling or swapping cards in the rack.

• ❗ Keep Unused Optical Ports Capped

  Airborne dust in central office HVAC systems can easily settle on precision optical ferrules. Keep protective rubber dust caps on all unused optical ports on the front panel to prevent insertion loss issues when connecting fiber jumpers.

Frequently Asked Questions (FAQ)

Q: What is the difference between part number 3KC70693AA and 3KC70693AA 02?

A: 3KC70693AA is the core hardware catalog part number, while 02 indicates the specific hardware revision level. Revision 02 incorporates updated component batches or revised internal circuitry while maintaining functional equivalence.

Q: Is this card hot-swappable?

A: Yes. Nokia / Alcatel-Lucent carrier chassis support hot-swappable line cards. However, if the card is actively carrying live traffic, removing it will cause a link drop unless protection paths (e.g., APS or MPLS-TE fast reroute) are enabled.

Q: Does this card require standalone external power wiring?

A: No. Operating power, management control, and data traffic pass through the high-density backplane connector when the card is latched into the chassis slot.
