Description
Product Introduction
The Allen-Bradley 1769-OF4 is a 4-channel analog output expansion module designed for CompactLogix control systems and MicroLogix 1500 controllers. It acts as the precision interface between digital Logix processing engines and field devices requiring continuous proportional control, such as variable frequency drive (VFD) speed references, control valve positioners, and proportional dampers.
Featuring individually configurable channels, the 1769-OF4 supports both unipolar/bipolar voltage ranges (\pm 10V, 0 to 10V, 1 to 5V) and current ranges (0 to 20mA, 4 to 20mA). With high digital-to-analog conversion accuracy and robust onboard diagnostics, it ensures precise, smooth actuator positioning across process automation cells.
Key Technical Specifications
| Parameter | Value |
| Outputs Per Module | 4 Individually Configurable Analog Channels |
| Output Ranges (Voltage) | \pm 10V, 0 to 10V, 0 to 5V, 1 to 5V |
| Output Ranges (Current) | 0 to 20mA, 4 to 20mA |
| Digital Resolution | 15 Bits + Sign (15.6 bits effective) |
| D/A Conversion Time | 2.9 ms across all active channels |
| Overall Accuracy | \pm 0.5\% Full Scale @ 25°C (Voltage) | \pm 0.35\ Full Scale @ 25°C (Current) |
| Power Distance Rating | 5 Modules (Must be mounted within 5 slots of power supply) |
| Backplane Current Draw | 120 mA @ 5.1VDC | 120 mA @ 24VDC |
| External Power Requirement | 24VDC \pm 15\% (Required to power analog output drivers) |
| Wiring Connection | 18-Pin Removable Terminal Block (1769-RTBN18) |
Application Scenarios & The “Trench” Experience
The Trench Story
It is 2:00 AM on a thermal oxidizer system commissioning. A competitor’s analog card suffers channel drift on its 4 to 20mA loop, causing a gas burner butterfly valve to hunt continuously and triggering high-temperature shutdowns. In field troubleshooting, chasing noisy 0–10V signals across long conduit runs is a nightmare. Swapping in a 1769-OF4, setting Channel 0 to 4 to 20mA current mode (which inherently rejects line noise), and utilizing its fast 2.9 ms D/A response time locks the burner valve into dead-steady position control, passing emissions testing before dawn.
Specific Applications
- VFD Speed Control: Sends 0 to 10V or 4 to 20mA reference commands to frequency drives on continuous conveyor lines.
- Proportional Valve Positioning: Controls steam flow and liquid throttling valves on pasteurization and CIP processing skids.
- Dampers & Airflow Actuation: Modulates HVAC and industrial burner dampers using precise angular displacement signals.
- Chart Recorders & External Meters: Re-transmits system variables to remote panel meters and paperless trend recorders.

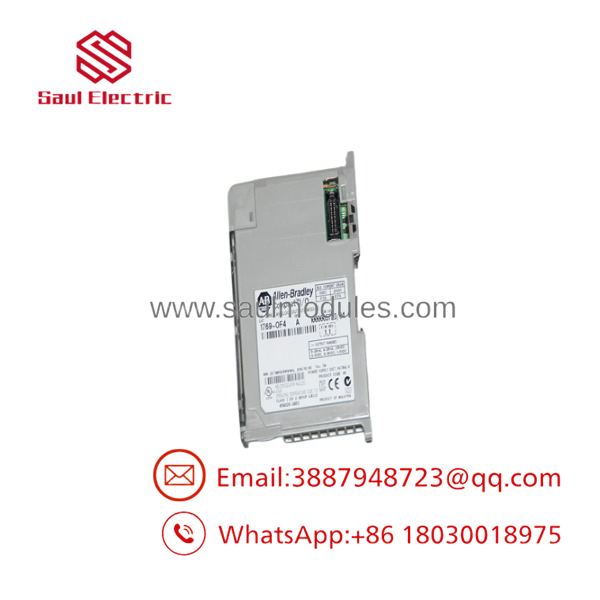

- 1769-OF4

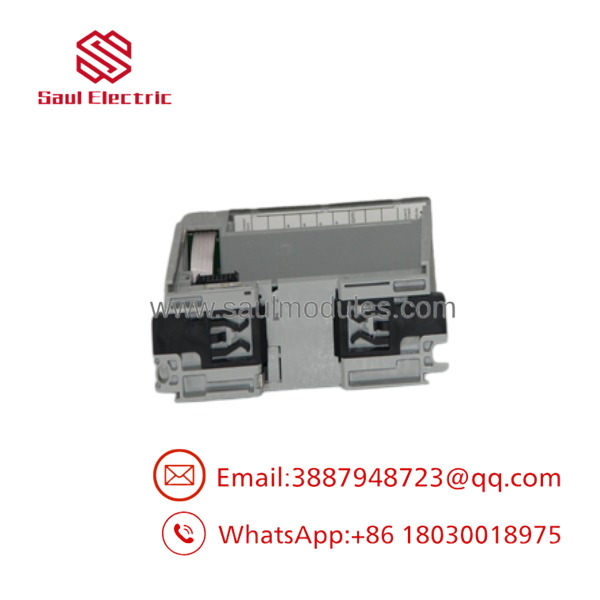

- 1769-OF4
Transparency SOP: Quality Assurance & Testing
Every 1769-OF4 module undergoes a thorough quality audit and precision calibration test prior to shipment:
- Physical & Connector Audit: We inspect the side backplane locking levers, verify bus pin integrity, and inspect the removable 18-pin terminal block (1769-RTBN18) for secure wiring clips.
- Backplane & External Power Check: The module is installed in a test CompactLogix rack and connected to an external 24VDC power supply to verify internal DC-DC converter rail health.
- Calibrated Signal Precision Loop Test: Using a Fluke precision process calibrator, we command each of the 4 channels to 0V, 5V, 10V, 4mA, 12mA, and 20mA steps in Studio 5000, confirming register output accuracy within \pm 0.1\%.
- Channel Load & Impedance Test: Channels are tested across maximum rated load impedances (500\,\Omega for current, >1 k\Omega for voltage) to confirm output drivers hold commanded values without thermal clamping.
- Fault Recovery Check: We simulate field wire disconnection to confirm fault-mode behavior (Hold Last State, Low/High Limit) executes according to project settings.
The Veteran’s Tech Trap Guide
- ⚠️ Requires External 24VDC Auxiliary Power: Backplane logic power alone is NOT enough to drive the analog output stage. You MUST connect an external 24VDC power supply to the module’s 24VDC and DC COM terminals on the RTB. Forgetting this connection results in 0V / 0mA output commands regardless of controller logic.
- ❗ Mind the 5-Slot Power Distance Rule: The 1769-OF4 has a strict power distance rating of 5. It must be installed within 5 slots of a 1769 system power supply (such as the 1769-PA4 or 1769-PB4). Installing it further down the rail causes voltage drops that lead to analog conversion noise or CPU backplane faults.
- ⚠️ Match Software Configuration with Wiring: Each channel must be explicitly configured in Studio 5000 / RSLogix 5000 for either Voltage or Current mode, and wired to the corresponding terminals (V_out vs. I_out). Wire current loop loads to I_out and RET; wiring a current loop to V_out will result in zero current flow.
- ❗ Use Shielded Twisted Pair Cabling: Always use Belden 8761 (or equivalent) shielded twisted-pair cabling for analog output runs, grounding the shield braid at ONE end only (typically at the PLC chassis ground terminal) to prevent ground loop noise on sensitive field drives.
Frequently Asked Questions
Q: What is the difference between the 1769-OF4 and the 1769-OF8C / 1769-OF8V?
The 1769-OF4 is a 4-channel universal module supporting both voltage and current outputs on the same card. The 1769-OF8C (8-channel current-only) and 1769-OF8V (8-channel voltage-only) offer higher density but restrict output signal types to either current or voltage exclusively.
Q: Can I configure Channel 0 for 4–20mA current while configuring Channel 1 for 0–10V voltage?
Yes. All 4 channels on the 1769-OF4 are independently configurable in the Studio 5000 module properties for range, data format, and fault behavior.
Q: What happens to the analog outputs if the controller goes into Program mode or loses communications?
You can configure each channel’s Program-to-Run and Fault state response in software to either: Hold Last State, Go to User-Defined Safe Value, or Go to Low/High Limit.
Q: Is the 1769-OF4 compatible with MicroLogix 1500 controllers?
Yes. The 1769-OF4 can be used as an expansion I/O module on both MicroLogix 1500 systems (using 1764 processors) and CompactLogix 1769 system architectures.
Q: What terminal block is used with the 1769-OF4?
It uses the standard 1769-RTBN18 18-pin removable screw-terminal block (or 1769-RTB18 spring-clamp terminal block).
Q: What warranty covers your surplus and refurbished 1769-OF4 units?
Every 1769-OF4 module we ship includes our full 12-month replacement warranty. If a hardware defect or channel accuracy loss occurs under normal operating conditions within 365 days, we replace the unit immediately from stock or issue a full refund.
