Description
Product Introduction & Engineering Value
Motion systems fail differently than standard variable frequency drives. A single faulty axis amplifier can disable one machine axis while the remaining axes continue operating normally, making diagnostics more challenging than a complete system shutdown.
The Allen-Bradley 1394-AM04 is a servo axis module designed for the 1394 Digital AC Motion Control System. Installed alongside a compatible system module, it provides precision power conversion for a single servo axis and is commonly used in CNC machinery, packaging equipment, material handling systems, and coordinated multi-axis production lines. The module serves as the inverter stage, converting the shared DC bus into a variable-frequency three-phase output for the connected servo motor.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Allen-Bradley / Rockwell Automation |
| Model | 1394-AM04 |
| Product Family | Bulletin 1394 GMC / GMC Turbo |
| Product Type | Servo Axis Module |
| DC Input Voltage | 530–680 VDC |
| Output Voltage | 0–480 VAC, 3-Phase (310/390 VAC nominal depending on DC bus) |
| Continuous Output Current | 4.5 A |
| Peak Output Current | 9.0 A |
| Continuous Output Power | 3 kW (2.4 kW @ 310 VAC) |
| Output Frequency | 0–240 Hz |
| Efficiency | Approximately 98% |
| DC Bus Capacitance | 110 μF |
| Cooling | Uses system cooling arrangement (no integrated heatsink) |
| Compatible System | Allen-Bradley 1394 Motion Control System |
| Installation | Slide-and-lock modular mounting |
Field Application & The “Trench” Experience
A high-speed carton packaging machine repeatedly reported Axis 3 Drive Fault during rapid acceleration. Since the remaining servo axes continued operating correctly, engineers initially suspected the servo motor or encoder.
Motor insulation, encoder feedback, and power cables all tested within specification. Swapping the 1394-AM04 with a known-good module immediately transferred the fault to another axis, confirming the amplifier itself as the source of the problem. Production resumed after installing a replacement module and verifying axis tuning parameters.
Typical applications include:
- CNC machining center feed-axis control
- Rotary indexing tables
- Multi-axis packaging and cartoning machines
- Electronic assembly automation
- High-speed pick-and-place systems

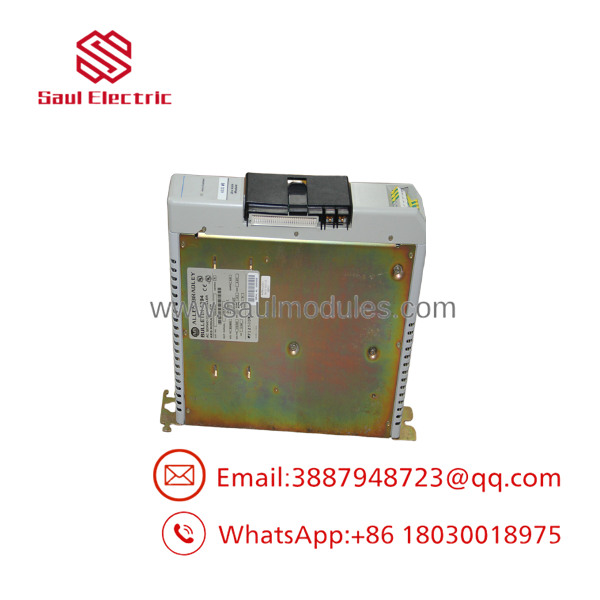

- 1394-AM04

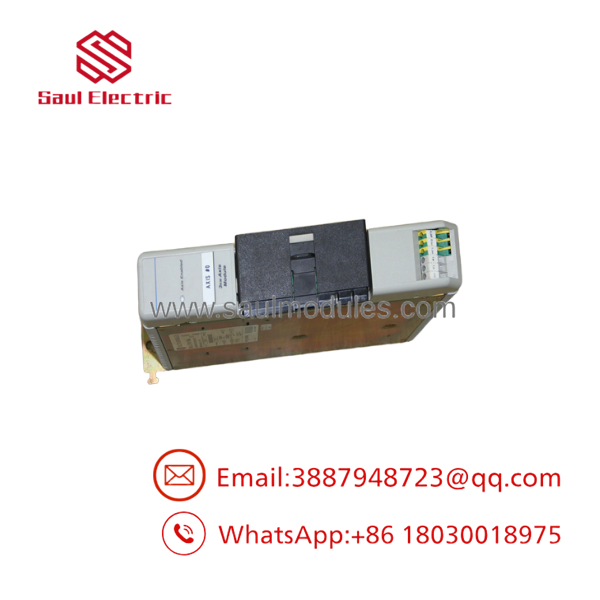

- 1394-AM04
Transparency SOP: QA & Testing
Each New Surplus or professionally Refurbished 1394-AM04 undergoes a documented verification process before shipment.
- Verify catalog number, hardware series, and identification labels.
- Inspect power semiconductors, DC bus terminals, connectors, and PCB assemblies.
- Perform insulation resistance and continuity testing.
- Install the module on a compatible 1394 system bench.
- Verify PWM output, current regulation, and communication with the system module.
- Operate a compatible servo motor under multiple speed and load conditions.
- Complete final inspection and package using ESD-safe materials with full traceability.
The Veteran’s Tech Trap Guide
⚠️ Never replace only the axis module after a catastrophic motor failure. A shorted motor cable or failed servo motor can damage the replacement amplifier almost immediately after startup.
⚠️ Confirm compatibility with the system module. The 1394- is intended for use within the 1394 GMC/GMC Turbo architecture and must be matched with an appropriate 1394 system module and protection hardware.
PRO TIP: Before removing the original amplifier, upload and save the servo tuning parameters. While the amplifier itself stores little application data, incorrect axis tuning can produce oscillation, positioning errors, or nuisance faults after replacement.
PRO TIP: If only one axis reports repeated overcurrent alarms, swap the amplifier with another identical axis before replacing the servo motor. This simple test often identifies whether the fault follows the module or remains with the mechanical axis.
Dynamic FAQ
Q1. What is the primary function of the 1394-?
The is a servo axis amplifier that converts the common DC bus voltage into a controlled three-phase AC output for a single servo motor within the Allen-Bradley 1394 motion control system.
Q2. How many servo axes does one 1394- control?
Each controls one servo motor axis. A complete 1394 system may contain multiple axis modules connected to a common system module.
Q3. Is the 1394- interchangeable with the 1394C-?
Yes. Rockwell documentation indicates that the Series A and Series B 1394- modules are interchangeable with the 1394C- Series C in supported systems, provided overall system compatibility and firmware requirements are satisfied.
Q4. What are common symptoms of a failing 1394-?
Typical symptoms include axis overcurrent faults, unstable servo motion, repeated drive enable failures, PWM output errors, and one machine axis refusing to initialize while the remaining axes operate normally.
Q5. How is New Surplus authenticity verified?
Every module is verified for catalog number, hardware revision, connector condition, insulation integrity, power-stage operation, and functional testing on a compatible 1394 servo platform before shipment.
Q6. Is the 1394- still an active Rockwell Automation product?
The belongs to the legacy Bulletin 1394 motion control family and has been discontinued for new production. It is commonly sourced as New Surplus, professionally Refurbished, or through certified repair services to support existing installations.
