Product Introduction & Engineering Value
Operators lose time when a failed HMI forces a production line offline and the replacement doesn’t match the existing cutout, power, or application file. The 2711P-B10C4D8 solves that exact problem. It is a PanelView Plus 6 1000 terminal with a 10.4-inch color TFT, combined keypad and analog resistive touch, and standard Ethernet plus RS-232 ports.
It runs FactoryTalk View Machine Edition applications on Windows CE 6.0 and accepts the same 18-32 VDC supply used by most mid-size control cabinets. Panel cutout and mounting remain compatible with earlier 1000-series units, so mechanical swap-out stays straightforward when the original display or logic module fails.
Technical Specifications
| Parameter | Specification |
|---|---|
| Display Size | 10.4 in. diagonal |
| Display Type | Color active-matrix TFT LCD |
| Resolution | 640 x 480, 18-bit color |
| Operator Input | Keypad + Analog Resistive Touch |
| Keypad Function Keys | F1–F16, K1–K16 plus numeric and navigation |
| Input Voltage | 18–32 VDC (24 VDC nominal) |
| Power Consumption | 70 W max / 39 W typical |
| Memory | 512 MB RAM / 512 MB nonvolatile (~79 MB free user) |
| Communication Ports | Ethernet (10/100), RS-232, 2 USB host |
| Operating System | Windows CE 6.0 (standard, no extended features) |
| Backlight | CCFL, 50,000 h min at 25 °C, field-replaceable |
| Real-Time Clock Battery | CR2032 equivalent, field-replaceable |
Field Application & The “Trench” Experience
A packaging line in a midwestern food plant went down at 2 a.m. when the original 10.4-inch PanelView Plus lost its backlight and the touch coordinates drifted. The night-shift tech had a spare 2711P-B10C4D8 on the shelf. He matched the existing panel cutout, landed the same 24 VDC supply, loaded the MER file from the SD card, and restored the line before the day crew arrived. The dual input proved useful—operators preferred the physical function keys for high-speed changeovers while still using the touch screen for recipe selection.
Niche uses that fit this exact unit:
- High-speed cartoner changeover station where operators need both tactile function keys and on-screen graphics.
- Batch reactor local operator station that must retain the original FactoryTalk View ME application without conversion.
- Conveyor sortation control desk that still runs on a dedicated 24 VDC control power bus and requires Ethernet/IP plus residual RS-232 links to older barcode scanners.
Transparency SOP: QA & Testing
- Visual and mechanical inspection of bezel, keypad membrane, touch surface, and all connectors.
- Power-up on regulated 24 VDC supply; verify current draw stays within published typical/max limits.
- Full display test—uniform backlight, no dead pixels, correct color saturation at 640 x 480.
- Keypad actuation test on every function, numeric, and navigation key; touch calibration and multi-point response check.
- Communication verification on Ethernet and RS-232 ports plus USB host detection.
- Application load and runtime test with a representative FactoryTalk View ME project; confirm SD card and battery-backed clock function.
- Final burn-in under load followed by packaging with anti-static protection and moisture barrier.
The Veteran’s Tech Trap Guide
⚠️ Firmware and MER version mismatch – A terminal shipped with an older logic module firmware can refuse to load a newer MER file. Always check the firmware revision against the FactoryTalk View ME version before the swap.
⚠️ Forgotten real-time clock battery – The CR2032 is not always fresh on surplus or refurbished units. A dead battery causes time stamps and data-log files to reset on every power cycle. Replace it on the bench before installation.
PRO TIP: The keypad membrane is rated for one million presses, but heavy-glove operators in cold rooms can wear the stainless overlay faster than expected. Keep a spare membrane overlay kit on the shelf if the unit sits in a wash-down or freezer environment.

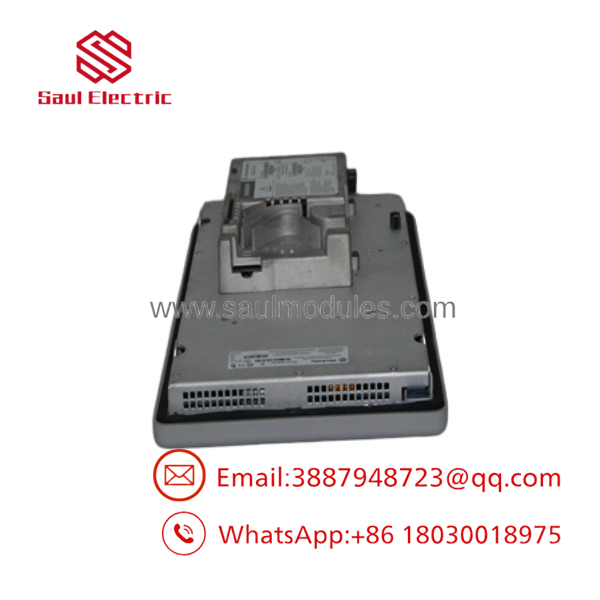

2711P-B10C4D8

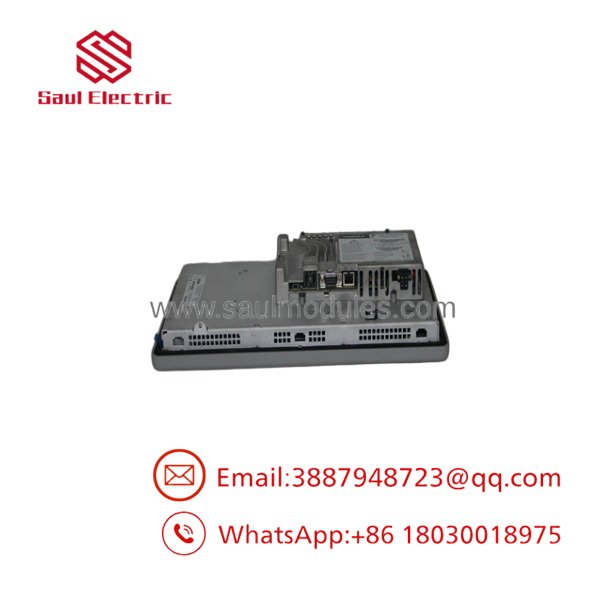

2711P-B10C4D8

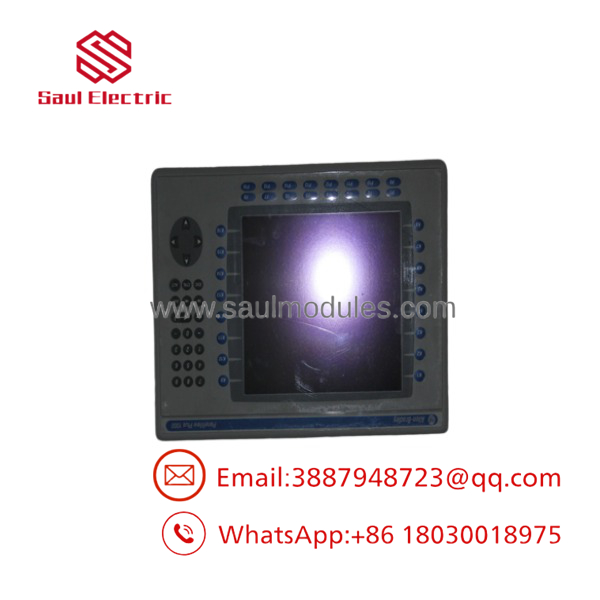

2711P-B10C4D8
Dynamic FAQ
Q: Is the 2711P-B10C4D8 still supported or is it obsolete? A: Rockwell has classified the PanelView Plus 6 family as end-of-life. New surplus and properly tested refurbished units remain the practical source for direct replacements that keep the existing application and panel cutout.
Q: Does this model include the extended features and file viewers? A: No. The “8” suffix indicates the standard Windows CE 6.0 image without the extended features package. If your application relies on PDF viewing or certain ActiveX controls, confirm compatibility before purchase.
Q: What is the actual free user memory available for applications? A: Approximately 79 MB of the 512 MB nonvolatile memory is available for user files after the operating system and runtime take their share.
Q: Can I replace only the display module or do I need the complete terminal? A: Both options exist, but a complete 2711P-B10C4D8 is usually faster and avoids potential logic-module-to-display compatibility issues that appear on mixed-series assemblies.
Q: What warranty and authenticity documentation come with New Surplus or Refurbished stock? A: Units ship with full functional test records, clear origin marking (New Surplus or Refurbished), and a standard warranty covering parts and workmanship. Serial numbers and revision levels are recorded for traceability.
