Allen-Bradley F-4030-Q-H04AA Servo Motor

Description

Key Technical Specifications

Dimensions and environmental protection depend on the configuration and installed accessories. Confirm the motor nameplate and original technical manual before engineering a replacement.

Main Features and Advantages

Medium-inertia rotor design

The F-4030-Q-H04AA belongs to the F-Series medium-inertia range. Rotor inertia affects acceleration, deceleration, load matching, and servo-loop tuning. The motor should be evaluated alongside the driven mechanism and the connected servo drive rather than selected on speed rating alone.

Brushless AC servo technology

The brushless design supports controlled rotary motion when used with a compatible servo amplifier. The motor is intended to operate as part of a closed-loop motion-control system, with the drive managing motor current and responding to feedback signals.

2,000-line optical encoder

The integrated optical encoder provides position-related feedback to the motion-control system. Correct encoder compatibility, wiring, and signal interpretation are essential for stable operation and accurate positioning.

Integrated 24 V DC holding brake

The H04AA configuration includes a 24 V DC brake. The brake is intended to hold the shaft when the motor is not actively producing torque; it is not a substitute for a safety-rated mechanical restraint or independent load-holding device.

Standard-flange mounting

The standard-flange configuration provides a defined mechanical interface for machine integration. Confirm bolt-circle dimensions, shaft geometry, coupling alignment, and total motor length before installing a replacement.

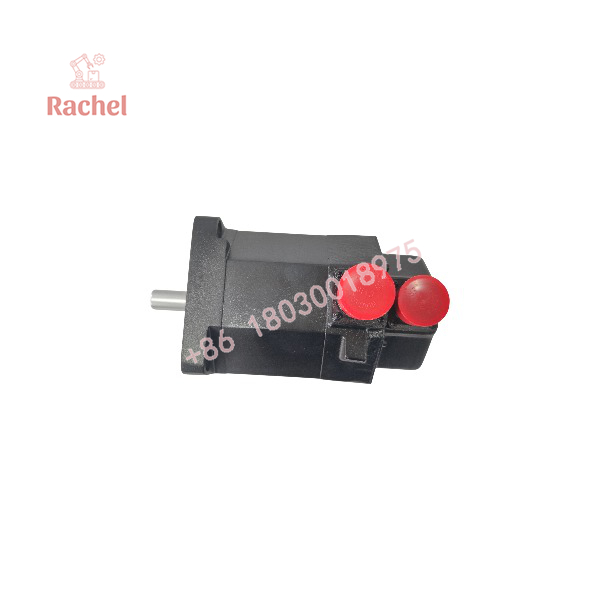

F-4030-Q-H04AA

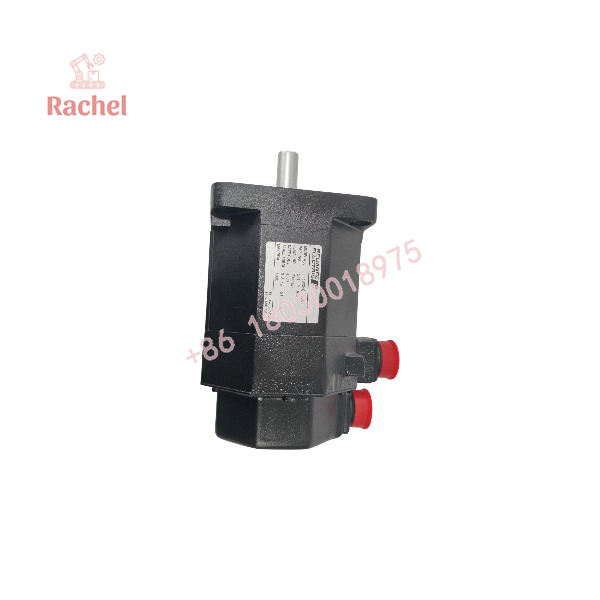

F-4030-Q-H04AA

System Compatibility and Integration Requirements

Before installing or sourcing the F-4030-Q-H04AA, verify the following:

• Servo drive: Confirm compatibility with the existing amplifier. The 1398 family includes drive variants with different electrical ratings; not every drive is appropriate for every motor configuration.
• Motor voltage and power: Match the motor’s electrical characteristics to the drive and supply arrangement.
• Encoder interface: Confirm that the drive supports the motor’s encoder feedback and associated wiring.
• Brake circuit: Verify the 24 V DC brake supply, switching sequence, and interlocking requirements.
• Mechanical fit: Compare flange dimensions, shaft diameter, shaft extension, mounting holes, and coupling requirements.
• Motor tuning: Check the load inertia ratio and servo-loop settings following motor replacement.
• Environmental protection: Confirm the installed cable assemblies and shaft seal meet the required ingress-protection conditions.

A replacement should be verified by the complete model number, not simply by the F-4030 frame designation.

Installation and Connection Notes

The F-4030-Q-H04AA must be installed as part of a compatible servo system. It is not designed for direct connection to an AC supply without the appropriate electronic drive.

During installation:

1. Isolate the drive and associated power sources, following the machine’s lockout/tagout procedures.
2. Verify the motor label, drive model, encoder connections, power connections, and brake wiring.
3. Inspect cables and connectors for damage before energizing the system.
4. Align the motor shaft and coupling carefully. Excessive radial or axial loading can cause premature bearing wear.
5. Confirm that the brake releases correctly under the prescribed control sequence.
6. Perform the required feedback, direction-of-rotation, and motion tests at controlled speed.
7. Reassess servo tuning after connecting the actual mechanical load.

Motor power connectors must not be connected or disconnected while energized. If the motor is tested without being mounted to machinery, restrain the motor securely and guard the rotating shaft.

Detailed Product Overview

Motion control and feedback

The Allen-Bradley F-4030-Q-H04AA combines a brushless motor, optical encoder, and 24 V DC holding brake in a medium-inertia configuration. The encoder provides feedback used by the servo drive to regulate motion, while the brake supports shaft holding under the specified operating conditions.

The maximum operating speed is 4,000 RPM. That figure should not be treated as a continuous operating recommendation for every load. Actual performance depends on the drive, torque demand, thermal conditions, acceleration profile, and mechanical system.

Motor and drive matching

Selecting this motor requires more than matching voltage and frame size. The drive must support the motor’s electrical characteristics and encoder interface, and the application must remain within the motor’s permitted speed and torque envelope.

The rotor moment of inertia is also important when replacing a motor. A different inertia class can change acceleration response and servo-loop stability, even if the replacement fits the same mounting interface.

Brake operation and mechanical safety

The integrated brake is a holding brake, not a service brake for repeatedly stopping a rotating load. The drive and machine controls must follow the specified brake-release and engagement sequence. Vertical axes or loads that can move under gravity may require additional mechanical protection based on the machine’s risk assessment.

Maintenance and replacement planning

Before replacing an installed unit, record the full motor model and inspect the existing motor, encoder cable, power cable, brake wiring, and mechanical coupling. After replacement, verify the feedback polarity, motor direction, brake behavior, and servo tuning before returning the machine to normal operation.

Applications and System Role

The F-4030-Q-H04AA is suited to motion-control applications requiring controlled rotary positioning and speed regulation.

Potential application areas include:

• Machine tools: Controlled movement of machine axes and mechanisms.
• Textile machinery: Coordinated drive motion in production equipment.
• Cam-driven machinery: Servo-based motion in applications using electronic or mechanical cam profiles.
• Automated production equipment: Rotary positioning and synchronized machine movements.
• Legacy 1398 ULTRA systems: Maintenance of existing motion-control installations using compatible F-Series motors.

Application suitability depends on required torque, speed, acceleration, load inertia, duty cycle, feedback interface, and the capabilities of the selected drive.

Frequently Asked Questions

What is the Allen-Bradley F-4030-Q-H04AA?

It is a brushless AC servo motor in the Allen-Bradley F-Series, associated with the 1398 ULTRA motion-control family.

What is its maximum operating speed?

The documented maximum operating speed is 4,000 RPM. The usable speed range depends on the drive and application requirements.

Does the F-4030-Q-H04AA include a brake?

Yes. The H04AA model designation is associated with a 24 V DC holding-brake configuration. Verify the nameplate and brake wiring before replacement.

What encoder does this motor use?

It is specified with a 2,000-line optical encoder. Confirm the feedback interface and wiring compatibility with the existing servo drive.

Can it connect directly to a 240 V AC supply?

No. It must be operated through a compatible electronic servo amplifier. Follow the motor and drive manuals for supply and connection requirements.

What protection rating can the F-Series motor achieve?

The F-Series motor can achieve IP65 under specified conditions, including the required environmentally sealed cable assemblies and optional shaft seal. Without the correct accessories, the protection rating is lower.

What should be checked before replacing the motor?

Verify the complete model number, drive compatibility, encoder interface, brake voltage, mounting dimensions, shaft and coupling geometry, and application load requirements.

Procurement Checklist

When requesting a quotation for the Allen-Bradley F-4030-Q-H04AA, provide:

• Exact model: F-4030-Q-H04AA
• Required quantity
• Photograph of the motor nameplate, if available
• Existing servo drive model
• Encoder and brake connection details
• Mechanical mounting and shaft requirements
• Required condition: new, surplus, or refurbished
• Destination and delivery requirements

For legacy motion-control systems, a matching model number is the starting point. Confirm the motor’s actual configuration and compatibility with the existing drive before purchase or installation.
