Allen-Bradley 2711-T10C8 PanelView 1000 Color Touch HMI

Description

Product Introduction

The Allen-Bradley 2711-T10C8 is a full-featured PanelView 1000 operator interface designed for robust plant-floor control across legacy Rockwell Automation architectures. Operating on 85–264V AC line power, this terminal features a spacious 10.1-inch active-matrix color TFT display that delivers vibrant process graphics, clear alarm banners, and detailed trend displays.

Equipped with a primary Data Highway Plus (DH+) communication port and an auxiliary RS-232 serial printer port, the 2711-T10C8 seamlessly interfaces with PLC-5, SLC 5/04, and ControlLogix controllers. Replacing physical control desks with an intuitive analog resistive touch screen, its rugged front bezel seals to NEMA 4X, 12, and 13 ratings, providing long-term reliability in demanding industrial environments.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

A critical mixing station on a chemical processing line drops offline when the touchscreen digitizer on an old 2711-T10C8 delaminates from years of solvent exposure. The underlying SLC 5/04 rack continues to run, but operators cannot adjust batch recipes or clear agitation faults. Migration to a modern PanelView Plus 7 or PanelView 800 would require cutting new panel cutouts, pulling Ethernet cable through explosion-proof conduit, and re-authoring the application in FactoryTalk View ME. Swapping in a pre-tested 2711-T10C8 unit takes less than 20 minutes: disconnect the 3-pin DH+ blue hose cable, swap the AC power plug, transfer the PCMCIA memory card (or download the .PVA file via PanelBuilder32), and restore the line to full production.

• Chemical & Refining Plants – Batching Control Desks – Provides an expansive color interface for tracking tank volumes, valve states, and multi-stage mixing sequences.
• Legacy Automotive Stamping – SLC 5/04 Networked Cells – Communicates over DH+ to deliver real-time stroke counts, press speeds, and safety light curtain status.
• Water & Wastewater Treatment – Pumping & Filtration Skids – High-contrast VGA screen allows operators to monitor multi-pump staging and chemical dosing trends.
• Pulp & Paper Converting – High-Speed Winder Drives – Touch controls enable quick setpoint adjustments for web tension and roll diameter monitoring.

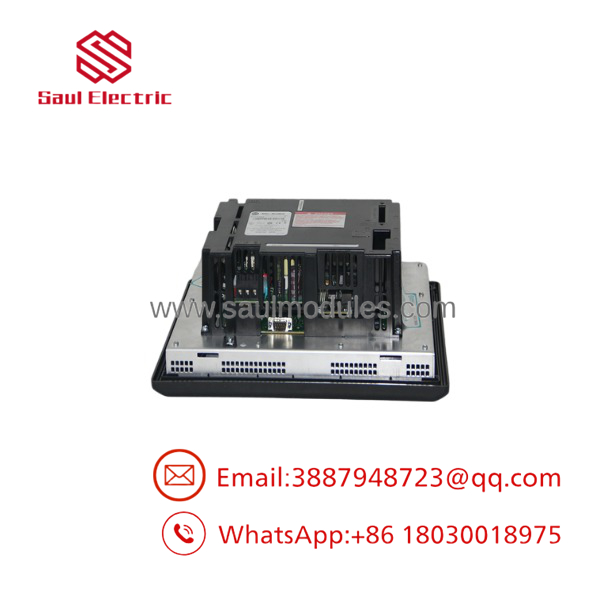

2711-T10C8

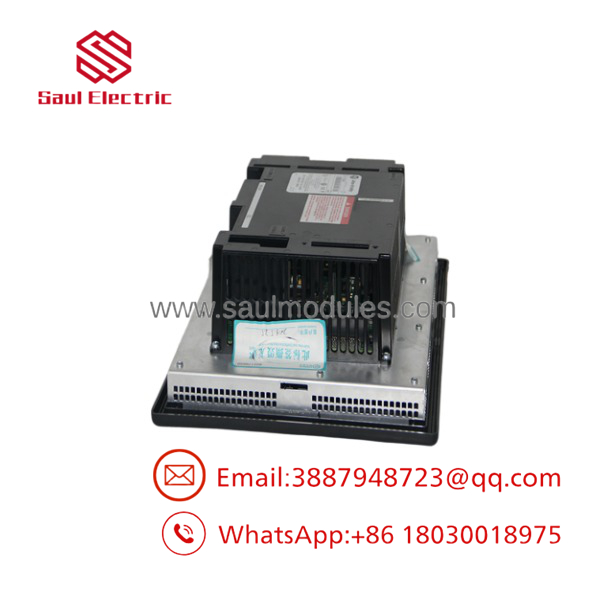

2711-T10C8

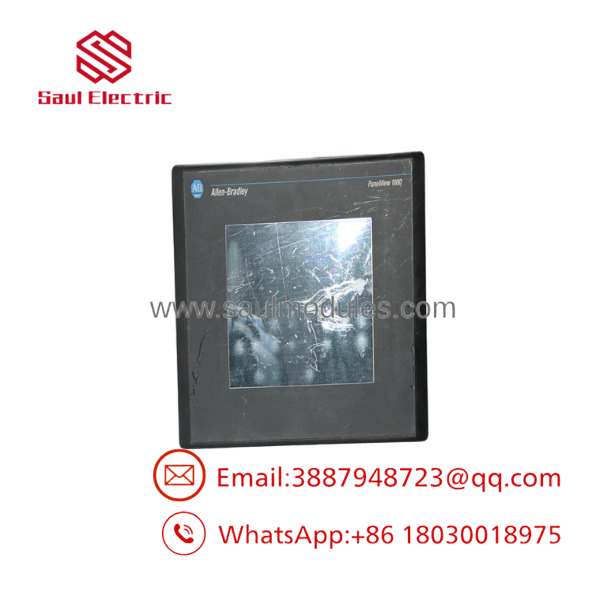

2711-T10C8

Transparency SOP: Quality Assurance & Testing

We don’t just ship boxes; we test them on actual Allen-Bradley racks before they leave our warehouse.

1. Inbound Inspection: Every terminal undergoes a visual check for glass scratches, bezel cracking, rear housing damage, intact gasket material, and clean DH+ terminal pins.
2. Live Rig Testing: The 2711-T10C8 is wired to 120V AC power and linked over a DH+ twinaxial “Blue Hose” network to an active SLC 5/04 system running PanelBuilder32 test logic.
3. Touch Grid & Port Checks: We perform a complete grid-alignment test to verify touch accuracy across all screen coordinates and verify DH+ baud rate negotiation (57.6k, 115.2k, 230.4k baud).
4. Thermal & Backlight Burn-In: The unit runs continuously for 4 hours to verify CCFL backlight brightness, contrast uniformity, and power supply stability without screen flickering.
5. Final QC & Anti-static Packaging: The terminal is cleaned, protective film is applied over the display glass, and the unit is wrapped in static-shielding film inside a reinforced foam shipping box.

The Veteran’s Tech Trap Guide (Crucial Value-Add)

• ⚠️ DH+ Node Address Collision: Ensure you set the terminal’s DH+ node address and baud rate in the terminal configuration menu to match your network layout before connecting to the live DH+ trunk. A duplicate node address will cause communication dropouts for other devices on the same cable.
• ❗ DH+ Termination Resistors: On long DH+ daisy-chain cable runs, ensure proper 150-ohm (or 82-ohm depending on baud rate) termination resistors are installed across the Clear and Blue conductors at both physical end nodes. Missing termination causes signal reflections and random offline errors.
• ⚠️ 120V AC Power Model: Unlike “L1” suffix models that require 24V DC, the 2711- is an AC-powered terminal (85–264V AC). Connecting 24V DC to this unit will result in no power-up, while wiring AC to a DC unit will instantly destroy the internal power supply.
• ❗ Blank Screen Contrast Hotkey: If you power up a replacement unit and the display stays dark or washed out, do not immediately assume a bad backlight. Hold the lower-left corner of the touchscreen during power-up to access the Terminal Setup screen and adjust contrast settings or run touch calibration.

Frequently Asked Questions (FAQ for Conversion)

Q: What is the main difference between the 2711- and the 2711-K10C8? A: Operator input method. The 2711- features a Touch-only screen interface, whereas the 2711-K10C8 features a Keypad-only interface with physical function keys (F1-F16).

Q: What programming software is used to configure the 2711-? A: Legacy PanelView 1000 terminals require PanelBuilder32 software (.PVA runtime files). Modern FactoryTalk View Studio software cannot program these units directly without converting the project file.

Q: Can I replace the backlight bulbs in the 2711- if they burn out? A: Yes. The 2711- uses a dual CCFL field-replaceable backlight assembly (Allen-Bradley catalog number 2711-NC11). It can be swapped from the rear access panel without taking apart the main chassis.

Q: Can I transfer my HMI application using a standard SD card or USB drive? A: No. The PanelView 1000 uses a PCMCIA Type II Memory Card slot (or ATA flash card). Alternatively, applications can be downloaded directly over the DH+ network or via the RS-232 serial printer port.

Q: What warranty coverage do you offer on surplus legacy HMIs? A: We back all New Surplus and reconditioned 2711- units with a full 12-month replacement warranty from the invoice date. If the unit fails under normal operating conditions within a year, we send a replacement or issue a full refund.
