Product Introduction & Engineering Value
Managing critical analog field loops requires uncompromised signal conversion and isolation. The ALSTOM ADU232.1 (Part Number 029.223006) functions as a specialized Analog Drive Unit and bus module engineered for heavy industrial process automation, power generation excitation systems, and marine vessel power management.
Designed to operate within ALSTOM’s modular control racks, this card processes high-precision analog I/O while maintaining galvanic isolation between field cabling and the primary CPU backplane. By deploying tested, direct-fit replacement units like the 029.223006, plant engineers bypass the multi-week lead times and massive capital expenses associated with complete rack migrations during urgent maintenance windows.
Technical Specifications
- Module Type: Analog Drive Unit / Fieldbus Interface Module (ADU232.1)
- OEM Part Number: 029.223006 / New No. 029.223006
- Backplane Interface: ALSTOM 200-Series proprietary rack bus system
- Signal Isolation: Galvanic optical isolation between field terminals and system logic
- Channel Configuration: Multi-channel analog input/output processing card
- Power Distribution: Internal multi-rail DC conversion from rack power backplane
- Status Indicators: Front-panel LED diagnostic lights for power, bus active, and fault states
- Form Factor: Eurocard slide-in printed circuit board with front faceplate retention screws
- Operating Temperature: 0°C to 55°C (32°F to 131°F)
- Approximate Weight: 0.65 kg (1.43 lbs)
Field Application & The “Trench” Experience
During an unplanned shutdown on a combined-cycle power plant’s gas turbine lube-oil control skid, the primary governor PLC lost feedback communication from three critical analog pressure transmitters. Troubleshooting narrowed the failure down to an analog bus failure on the primary rack; an unexpected field surge had damaged the front-end isolation circuitry on the existing ADU module. Our field technician swapped in a bench-tested ALSTOM ADU232.1 (029.223006) card, verified backplane communication via diagnostic LEDs, and restored analog loop scaling in under 30 minutes, preventing an extended trip of the entire generation unit.
Niche Application Scenarios:
- Hydroelectric Governor Speed Regulation: Interfacing main servomotor position feedback and hydraulic pressure transmitters to the master controller.
- Marine Vessel Power Management Systems (PMS): Processing generator load-sharing analog signals across main switchboard sections.
- Continuous Metal Rolling Mills: Managing high-speed speed/torque feedback loops between drive controllers and motor tachometers.

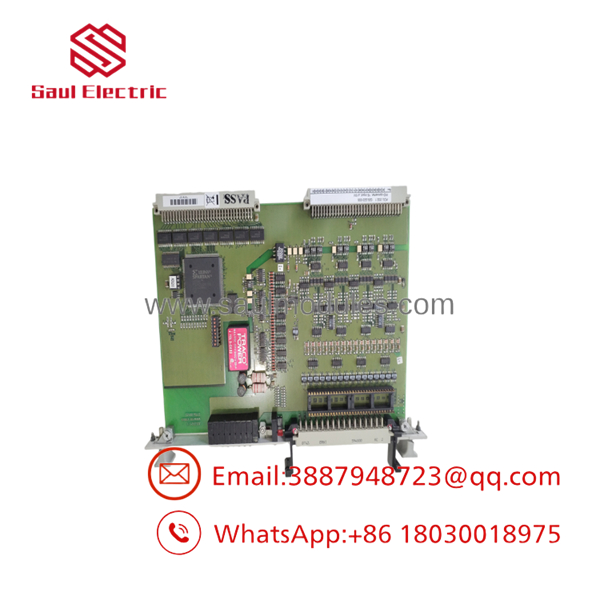

- ADU232.1 029.223006

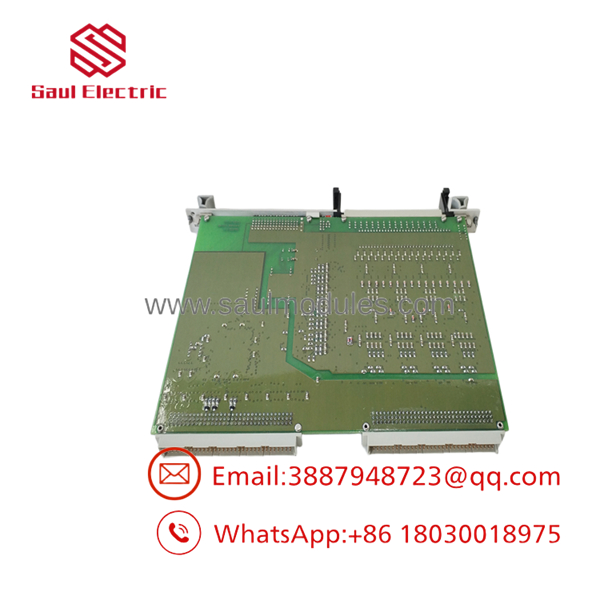

- ADU232.1 029.223006
Transparency SOP: QA & Testing
To guarantee drop-in operational readiness, every ALSTOM 029.223006 board undergoes a thorough quality control regimen prior to shipment:
- Physical Inspection: Microscopic trace verification to check for thermal stress, lifted pads, damaged backplane pins, or aging electrolytic capacitors.
- Backplane Resistance Checks: Static ohmmeter measurements across power rails and data lines to rule out shorted bus line drivers.
- Power-Up Diagnostic: Insertion into a live ALSTOM test chassis to confirm logic initialization and proper front-panel LED behavior.
- Analog Loop Injection Testing: Precision current/voltage signal injection across all analog channels to calibrate linearity and throughput response.
- Bus Isolation Verification: High-voltage isolation testing between field-side terminals and backplane electronics to ensure noise immunity.
- ESD Storage Packaging: Sealed inside anti-static shielding bags with moisture-absorbing desiccants prior to dispatch.
The Veteran’s Tech Trap Guide
⚠️ Confirm Part Number Revisions: ALSTOM updated part number schemes across various generation cycles. Ensure your existing board matches both the model tag (ADU232.1) and the full numeric code (029.223006). Subtle letter suffix mismatches can denote different analog range settings (e.g., 0–10V vs. 4–20mA) or alternate backplane pinouts.
PRO TIP: Inspect the backplane pin headers before insertion! Sliding an ADU card into a rack with bent backplane pins will crush adjacent connectors and permanently short out the rack’s 24V supply lines. Always use a flashlight to check the card-cage guide rails before pushing the board home.
⚠️ Cold Swapping Required: Unless explicitly specified by your overall system architecture, never hot-swap the .1 board while the rack backplane is fully energized. Inductive spikes from live backplane insertion can damage sensitive bus transceiver ICs on the card.
Dynamic FAQ
Q: Is the ALSTOM .1 interchangeable with the DAU232.1 module? A: No. While they belong to the same product family and share similar physical form factors, the .1 (029.223006) is configured specifically for Analog Drive/Interface processing, whereas the DAU variant handles Digital/Discrete functions. Always replace like-for-like.
Q: Does this board require parameter or firmware flashing prior to installation? A: The .1 functions primarily as a hardware signal conversion and bus driver card. Operating parameters are typically managed and executed by the main rack CPU module; once installed, the module acts on the backplane control commands directly.
Q: What do the front-panel status LEDs indicate during normal operation? A: A solid green LED indicates active, healthy rack power. Flashing or solid amber/yellow indicates active bus data traffic, while a solid red LED points to an onboard hardware fault or loss of field-side power supply.
Q: Are these modules supplied as new surplus or refurbished? A: Due to the legacy lifecycle status of ALSTOM 200-series hardware, these units are supplied as fully tested New Surplus or certified Refurbished stock. Every unit passes live bench testing before entering inventory.
Q: What warranty coverage applies to this 029.223006 replacement card? A: We provide a full 1-year replacement warranty on all ALSTOM .1 boards, covering all internal components and functional performance under normal operational conditions.
