ALSTOM 029.362754 VME Profibus Communication Module

Product Introduction

The ALSTOM 029.362754 is identified in industrial parts references as an SST-PFB3-VME2 communication module for legacy VME-based automation systems. It is associated with ALSTOM/ALSPA control equipment and provides a Profibus communications interface for systems that still depend on the original VME architecture.

This is a maintenance-oriented part, not a generic Profibus adapter. The VME form factor and host-system compatibility matter just as much as the fieldbus protocol. Replacing it with a modern PCI, Ethernet, or standalone Profibus gateway without checking the application software and VME bus interface can create a much larger integration problem.

Key Technical Specifications

Important: Publicly indexed information confirms the 029.362754 ↔ SST-PFB3-VME2 association, but it does not provide enough authoritative data to state exact Profibus baud-rate limits, connector pinout, VME addressing, or firmware revision compatibility. Verify those details against the installed system documentation before commissioning.

Application Scenarios & The “Trench” Experience

Here’s the failure mode that catches people: the PLC is running, the VME rack is powered, but the field devices have disappeared from the control system. You replace the Profibus cable. No change. You replace a field device. Still nothing. Eventually, the communication card becomes the suspect.

• Power Generation — Turbine and Generator Control — Used in legacy ALSTOM/ALSPA VME control architectures where Profibus connects distributed field equipment to the control system.
• Industrial Process Control — Distributed I/O — Provides the fieldbus interface required by older VME-based controllers that cannot simply accept a modern Ethernet communication card.
• Drive Systems — Profibus Device Communications — Relevant where drives and control devices remain tied to the original Profibus network.
• Legacy Automation — System Maintenance — Maintains existing hardware architecture without forcing an immediate migration from VME to a newer controller platform.

Field case — plausible replacement scenario:
A plant has an aging ALSTOM control cabinet that has been running for years. One morning, multiple Profibus nodes report communication faults simultaneously. The network cable tests correctly, termination checks pass, and the field devices respond when tested independently.

The 029.362754 communication module is eventually identified as the failed point.

The maintenance team sources a matching SST-PFB3-VME2 module rather than redesigning the entire control cabinet. Before installation, they document the old board’s physical configuration, firmware information, VME position, and Profibus settings. The replacement restores communications without touching the application logic.

That is exactly where keeping an obsolete spare on the shelf can make financial sense.

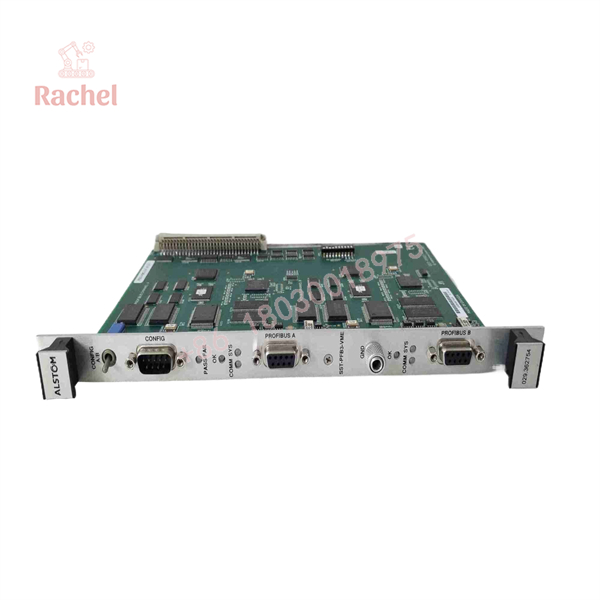

029.362754

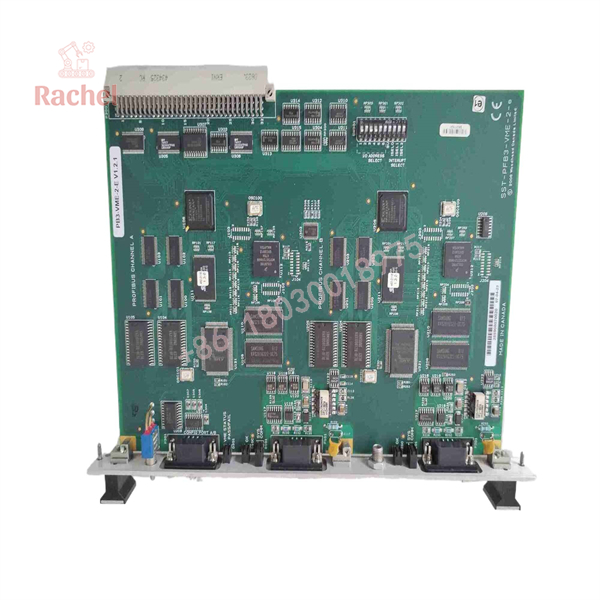

029.362754

Transparency SOP: Quality Assurance & Testing

For a legacy VME communication board, visual inspection alone is not enough.

1. Inbound Inspection
   • Verify 029.362754 and SST-PFB3-VME2 markings.
   • Inspect the PCB, VME edge connector, front-panel connector, mounting hardware, and identification labels.
   • Check for corrosion, bent contacts, cracked solder joints, and signs of previous repair.
2. Live Rig Testing
   • Install the module in a compatible VME test chassis.
   • Verify power-up behavior and board initialization.
   • Confirm VME bus communication.
   • Where suitable test equipment is available, establish a Profibus communication handshake with representative devices.
3. Electrical Parameter Checks
   • Check supply-rail behavior and abnormal current draw.
   • Inspect VME interface signals where appropriate.
   • Verify Profibus physical-layer behavior using suitable diagnostic equipment.
   • Do not apply arbitrary insulation testing to populated semiconductor circuitry.
4. Firmware Verification
   • Record firmware, EPROM, FPGA, or board-revision markings where identifiable.
   • Compare the revision with the removed module.
   • Confirm software compatibility before deploying a different hardware revision.
5. Final QC & Anti-static Packaging
   • Record the serial number and test results.
   • Photograph the actual tested board.
   • Use ESD-safe packaging and protect the VME connector during transport.

We don’t just ship boxes. For a legacy VME communication card, the meaningful test is whether the board actually communicates in the intended control architecture.

The Veteran’s Tech Trap Guide (Crucial Value-Add)

• ⚠️ Do not confuse Profibus compatibility with system compatibility. A generic Profibus card may speak the same protocol but still be completely unusable in an ALSTOM VME control system.
• ❗ Photograph the old board before removing it. Record board revision, switch settings, connector positions, and any visible configuration information. Five minutes with a camera can save hours of troubleshooting.
• ⚠️ Check the VME slot and addressing requirements. Do not assume every VME communication card can be installed in every slot or configured identically. Verify the system’s hardware configuration documentation.
• ❗ Firmware matters on legacy communication boards. If the replacement has a different firmware or programmable-device revision, confirm compatibility before assuming it is a direct replacement.

Frequently Asked Questions (FAQ for Conversion)

Q1. What is ALSTOM 029.362754?
Available industrial references identify it as an SST-PFB3-VME2 communication module, associated with VME-based industrial control equipment and Profibus communications.

Q2. Is 029.362754 a PLC CPU?
No. The available cross-reference identifies it as a communication module, rather than a standalone PLC processor.

Q3. Does it support Profibus DP?
The SST-PFB3-VME2 identification is associated with Profibus communications, but the publicly indexed information available for this exact part does not provide enough detail to certify the exact Profibus profile, device-class support, or maximum baud rate. Verify the original SST documentation and installed configuration before procurement.

Q4. Can I replace it with a modern Ethernet gateway?
Possibly as part of a migration project. Not as a blind drop-in replacement. The VME interface, application software, I/O configuration, Profibus device database, and diagnostic behavior all have to be considered.

Q5. Is 029.362754 hot-swappable?
Do not assume so. VME systems can have specific board-removal procedures, but that does not mean this particular communication module is approved for live insertion/removal. Follow the ALSTOM system documentation and isolate power unless hot-swapping is explicitly supported.

Q6. Why is this module available through surplus suppliers?
Because it belongs to a legacy VME-based control architecture. Industrial automation parts of this age frequently remain in service long after normal distribution channels have stopped stocking them. Current industrial inventories continue to list 029.362754 and its SST-PFB3-VME2 cross-reference.

Q7. Is a surplus 029.362754 fake or refurbished?
Not necessarily. The part can circulate through industrial surplus, decommissioned equipment, maintenance inventories, and refurbishment channels. The correct procurement process is to request photographs of the actual board, verify the 029.362754 and SST-PFB3-VME2 markings, establish the condition as new surplus/used/refurbished, and obtain a defined warranty. Do not treat a supplier’s warranty as proof of OEM-factory condition.
