ALSTOM AS111A-2 Analog Output Module

Description

Product Introduction and Engineering Value

The ALSTOM AS111A-2 is identified in equipment records as an eight-channel analog output module for the Alspa CE2000/CE3000 control-system family. It provides an output interface between controller commands and field devices that require analog control signals. The associated part number, E52C0202800, is useful when checking legacy inventory and sourcing a replacement.

For maintenance teams, the priority is confirming the exact hardware revision, terminal arrangement, and installed output configuration before installation. A matching model designation alone is not sufficient evidence of interchangeability.

Technical Specifications

Engineering note: The output channel count and nominal supply description are documented in secondary equipment records. Exact current ranges, channel loading limits, accuracy, isolation ratings, and environmental limits have not been independently confirmed from an OEM datasheet. Do not use unverified specifications for commissioning or safety-critical design.

Field Application and Maintenance Scenario

Consider a thermal power plant operating a legacy Alspa control system. During a scheduled outage, an analog output channel stops responding, preventing the control system from issuing the expected command to a modulating valve. The maintenance team identifies the installed card as an AS111A-2 and checks the equipment records for the matching OEM number, E52C0202800.

Before installing a replacement, the team verifies the terminal wiring, output signal range, field-device requirements, and controller diagnostics. After installation, each affected loop is checked against its approved commissioning procedure before the equipment returns to service.

This is an illustrative maintenance scenario, not a documented field case for this specific model.

Application scenarios

• Thermal power plant control: Analog command outputs for modulating process equipment, subject to confirmation of the installed channel configuration.
• Boiler auxiliary systems: Control loops for actuators or positioners where the existing DCS uses this module.
• Legacy process-control cabinets: Replacement of an identified output card while preserving existing wiring and controller configuration.

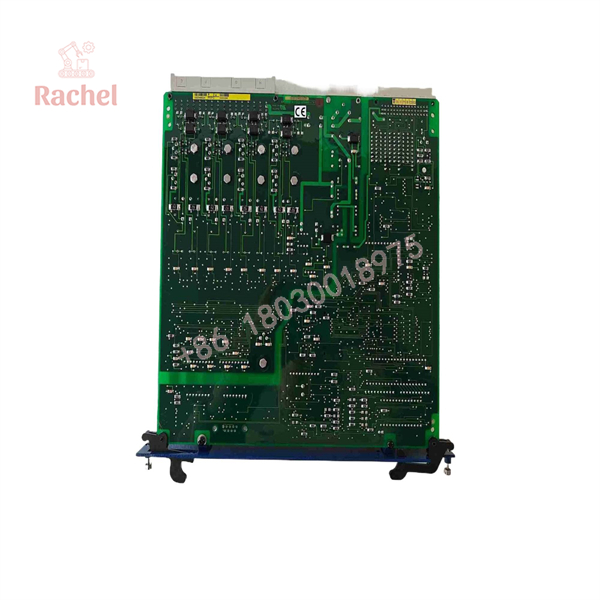

AS111A-2

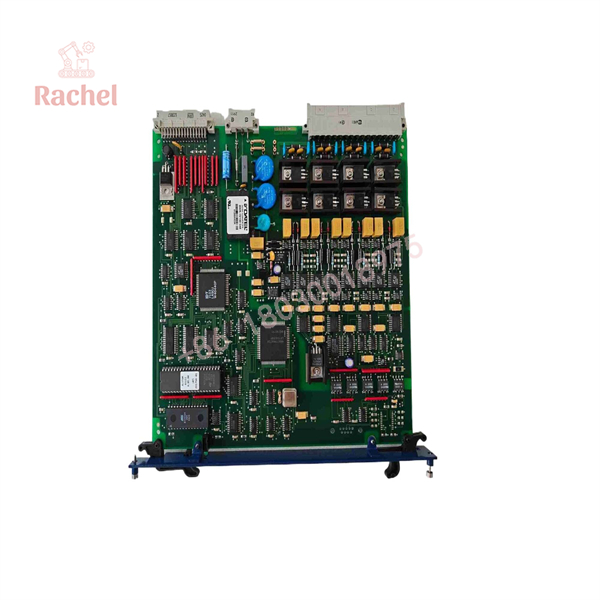

AS111A-2

Quality Assurance and Testing

For procurement of new-surplus or refurbished AS111A-2 modules, request a documented inspection and test report.

1. Identity check: Verify the ALSTOM label, full model number, OEM part number, serial number, and hardware revision.
2. Physical inspection: Check the PCB, connectors, terminal interfaces, and component surfaces for damage, corrosion, or unauthorized repair.
3. Electrical testing: Where supported by the approved test procedure, verify the power supply requirements and exercise all eight output channels using suitable test equipment.
4. Functional verification: Compare measured outputs against the applicable OEM limits and check channel behavior under representative loads.
5. Documentation: Record the test date, test conditions, results, and any limitations.

New-surplus status does not establish that a module is electrically functional. Likewise, a refurbished unit should not be described as fully tested unless the relevant test evidence is available.

Replacement Pitfalls: What Experienced Engineers Check First

1. Confusing AS111-2 with AS111A-2

Similar model numbers can refer to related hardware without guaranteeing identical specifications. Check the complete label and OEM part number before approving a substitute.

2. Assuming the output range

Do not assume that the card supports a particular 0–20 mA or 4–20 mA range without checking the applicable documentation. An incorrect range can produce control errors or prevent the field device from operating as intended.

3. Replacing the card without a loop test

Confirm the terminal mapping, grounding, field power, and controller diagnostics. Follow site isolation procedures, use appropriate ESD precautions, and verify affected control loops before returning the process to automatic operation.

Frequently Asked Questions

Q1. What is the ALSTOM AS111A-2 used for?

Available equipment records identify it as an eight-channel analog output module associated with legacy Alspa CE2000/CE3000 control systems. Confirm the exact output configuration using the equipment documentation.

Q2. What is the OEM part number?

The associated part number is E52C0202800, as reported in historical equipment records.

Q3. Can the AS111-2 replace the ?

Not without verification. Compare the complete part number, hardware revision, electrical characteristics, terminal configuration, and system compatibility. Obtain written confirmation from a qualified supplier or the relevant technical documentation.

Q4. Is new-surplus stock available?

Availability depends on the supplier’s current inventory. Request photographs of the actual unit, its nameplate, serial number, condition declaration, and any available functional-test report before placing an order.

Q5. How can I verify that a unit is original ALSTOM equipment?

Check the manufacturer’s markings and traceability records, compare the nameplate with the required part number, and request supporting supply-chain documentation. Photographs alone cannot establish authenticity conclusively.

Q6. What warranty should I expect?

Warranty terms depend on the seller and the condition of the unit. Obtain the warranty period, coverage for functional defects, return authorization process, and exclusions in writing. Do not assume that new-surplus and refurbished units carry identical coverage.
