Description
Product Introduction
The ALSTOM AL129A, commonly referenced with part code CD101152 and Alstom code U0100050, is an integrated power supply for ALSPA CE2000 and CE3000 control systems. It takes a 96–253 VAC input and produces isolated 5 VDC and 12 VDC rails for controller, I/O, and rack electronics.
Its importance is architectural rather than glamorous: it mounts in AM163, AM164, or AM166 CE2000 racks and connects through the FB178 backplane, with support for single or redundant configurations. In a turbine-control or power-plant application, losing this module can take down an entire control rack—not just one I/O point.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | ALSTOM / GE |
| Model | AL129A |
| Associated part codes | CD101152; Alstom code U0100050 |
| Product type | Chopper-converter / integrated power supply |
| Applicable systems | ALSPA CE2000 and CE3000 controllers |
| Input voltage | 96–253 VAC |
| Output 1 | Isolated 5 VDC at 10 A |
| Output 2 | Isolated 12 VDC at 4 A |
| Maximum output power | 120 W |
| Switching frequency | 60 kHz |
| Rack compatibility | AM163, AM164, AM166 CE2000 racks |
| Backplane interface | FB178 |
| Configuration | Single or redundant power supply |
| Protection | Short-circuit, overvoltage, and overtemperature protection |
| Operating temperature | Approximately -20 to +60 °C; one listing states -25 to +70 °C—verify the installed variant |
| Dimensions | 26.5 x 5.0 x 26.5 cm |
| Weight | 2.02 kg |
| Condition availability | Refurbished / new surplus; ICSS lists a tested refurbished unit |
Application Scenarios & The “Trench” Experience
A CE2000-based turbine-control rack drops offline after a brief plant voltage disturbance. The controller looks dead, I/O status LEDs are dark, and operators suspect the CPU. Before pulling the processor, check the AL129A: if its 5 V or 12 V rail collapses, every module behind it loses a valid power reference.
- Power generation – Gas- and steam-turbine control racks using ALSPA CE2000/CE3000 – Required because it supplies isolated controller and I/O power from the plant AC system.
- Oil and gas facilities – Turbine, compressor, and process-control cabinets – Required for rack-level power conversion and redundant configuration support.
- HVDC and substation automation – Control and protection racks – Required for stable isolated DC rails and FB178 backplane integration.
- Legacy DCS modernization – Life-extension of CE2000/CE3000 systems – Required because the AL129A is rack-specific and not a generic DIN-rail power supply.
- Critical-spares programs – Maintaining a tested spare for CE2000 racks – Required because a failed power module can disable an entire controller rack.
Field case study: A power plant experienced intermittent CE2000 rack resets during summer operation. Maintenance replaced an I/O module, then suspected the controller. The eventual cause was an aging AL129A with marginal 5 V output under load. A tested replacement restored stable rack power and eliminated the resets. The lesson: measure both DC rails under real load before condemning downstream electronics.

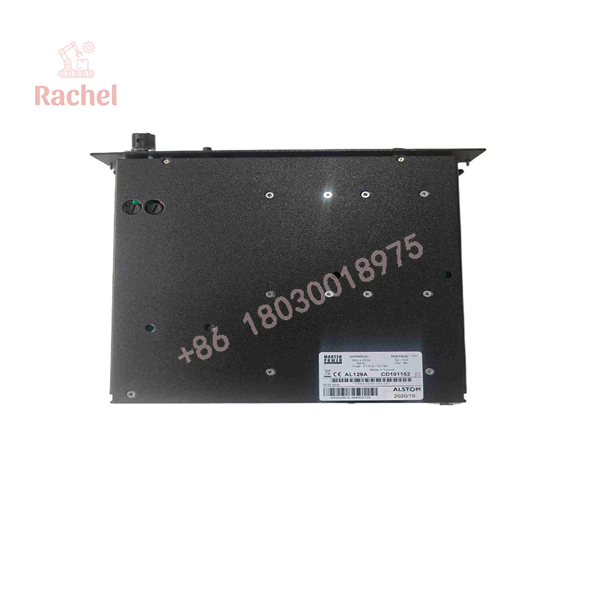

AL129A

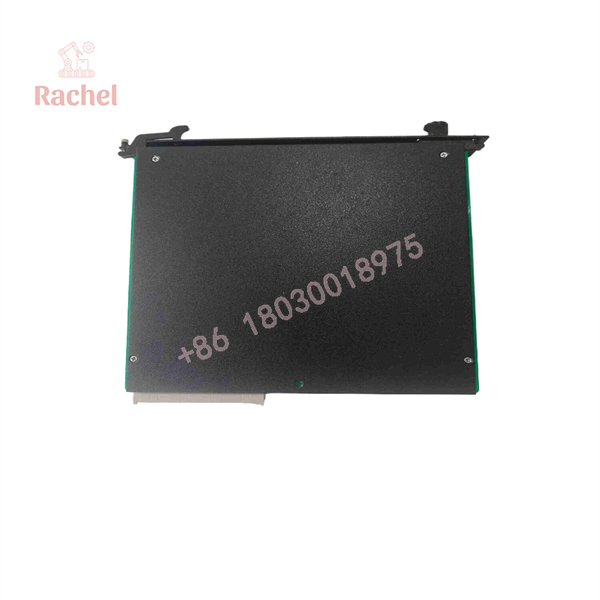

AL129A
Transparency SOP: Quality Assurance & Testing
We don’t just ship boxes; we test them on an appropriate ALSPA/CE2000 test bench or equivalent rack setup where available.
- Inbound inspection: Verify model marking, CD101152/U0100050 references, backplane connector condition, capacitor health, burnt components, and evidence of prior repair.
- Anti-counterfeit check: Compare label format, PCB construction, connector hardware, and module dimensions against known ALSTOM/GE examples.
- Live bench testing: Apply a controlled 96–253 VAC input and verify startup, regulation, and output stability.
- Load testing: Load the 5 VDC rail toward 10 A and the 12 VDC rail toward 4 A; check voltage regulation, ripple, thermal behavior, and protection response.
- Backplane verification: Confirm FB178 connection integrity and rack communication/power distribution where a compatible AM163/AM164/AM166 rack is available.
- Protection testing: Verify short-circuit, overvoltage, and overtemperature protection behavior without damaging the unit.
- Redundancy check: Where configuration permits, verify changeover behavior and stable operation in a redundant power arrangement.
- Final QC and packaging: Record test data, protect backplane pins, and ship in anti-static packaging.
The Veteran’s Tech Trap Guide
- ⚠️ Do not treat this as a generic 24 VDC DIN-rail supply. Some listings describe it incorrectly as a 24 VDC/10 A supply. The credible CE2000-specific documentation identifies isolated 5 VDC at 10 A and 12 VDC at 4 A outputs.
- ❗ Measure both output rails under load. A no-load reading can look normal while the 5 V rail sags under controller and I/O load. That is a classic cause of intermittent rack resets.
- ⚠️ Inspect the FB178 backplane connector before replacing the module. Oxidation, bent pins, or loose rack connections can mimic a failed AL129A.
- ❗ Confirm redundancy wiring before swapping. The module supports single or redundant configurations; an incorrect changeover can leave one rack fed by a degraded supply or create an unexpected shutdown path.
- ⚠️ Watch electrolytic capacitors and heat. These are legacy converter modules. Bulging capacitors, discoloration, or a hot enclosure are warning signs even if the outputs still regulate at no load.
Frequently Asked Questions
Q: Is the AL129A hot-swappable?
A: Treat it as a powered-down replacement unless your specific CE2000 rack documentation explicitly authorizes live replacement. Even if the hardware supports redundancy, removing the wrong supply can interrupt rack power.
Q: What is the difference between AL129A, CD101152, and U0100050?
A: They are commonly used together in listings: AL129A is the module designation, CD101152 is a frequently associated part code, and U0100050 is an Alstom code. Verify all identifiers against the installed module label and plant records.
Q: Can I replace it with a standard industrial power supply?
A: No. It is a rack-mounted chopper converter designed for AM163/AM164/AM166 CE2000 racks and the FB178 backplane. A generic PSU will not provide the correct mechanical, backplane, redundancy, or distribution interface.
Q: Does it support redundant operation?
A: Yes. Supplier documentation identifies single or redundant configuration through the FB178 backplane. Confirm the rack’s redundancy wiring and commissioning procedure before replacement.
Q: Is this module discontinued?
A: It is a legacy ALSTOM/GE CE2000/CE3000 component. Current availability is generally refurbished or new surplus rather than routine factory-new supply.
Q: Why do online listings show different specifications?
A: Because some marketplaces mix up ALSTOM modules or copy descriptions from unrelated power supplies. The CE2000-specific listings consistently identify 96–253 VAC input, isolated 5 VDC/10 A and 12 VDC/4 A outputs, and FB178 rack integration.
Q: What warranty is reasonable?
A: For a tested refurbished AL129A, 12 months is a reasonable minimum. ICSS advertises a three-year warranty on its refurbished unit, but confirm whether it covers functional failure, repair, replacement, and labor.
