ASM 4552021 Input Output Control Card

Description

Product Introduction & Engineering Value

The ASM 4552021 is identified as an input/output control card intended to handle signal exchange between an automation control system and connected field devices. Its role is centered on acquiring field signals and transmitting control outputs to downstream equipment. Publicly available references describe the part as an I/O control card, but detailed manufacturer-level electrical specifications are not readily available.

For replacement work, the important issue is not simply matching the 4552021 number. Engineers should verify the complete assembly identification, rack position, electrical interface, signal type, firmware or configuration requirements, and the existing system’s I/O architecture before installation.

Technical Specifications

Important specification note: Do not substitute assumed voltage, channel-count, protocol, or environmental ratings for the manufacturer’s original documentation. The available public reference confirms the I/O-control-card classification but does not establish these detailed electrical values.

Field Application & The Trench Experience

A realistic replacement scenario for the ASM 4552021 would occur during an automation-system fault where a field I/O section stops reporting correctly. The maintenance team has already confirmed the field wiring and external devices are operational, leaving the I/O control card as a suspect. Instead of changing the entire control assembly, the maintenance engineer compares the failed card’s identification and configuration with the spare ASM 4552021, records the existing wiring, checks the rack position, and performs a controlled replacement during a scheduled maintenance window.

After installation, the engineer does not immediately return the process to automatic operation. Individual inputs and outputs are checked first, followed by controller diagnostics and functional testing of the associated field devices.

Niche Application Scenarios

• Process skid I/O replacement: Restoring field signal handling without replacing the complete control cabinet.
• Machine automation retrofit: Maintaining an existing control architecture when an original I/O card has failed.
• Production-line maintenance: Keeping a matched spare available for rapid recovery from an unexpected I/O hardware fault.

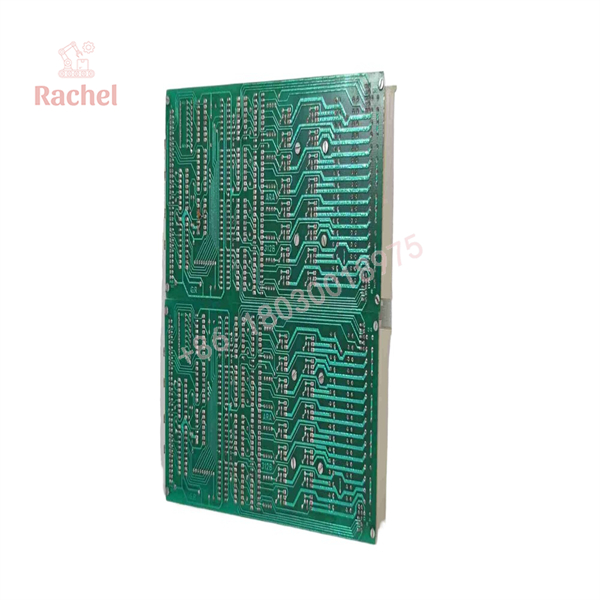

4552021

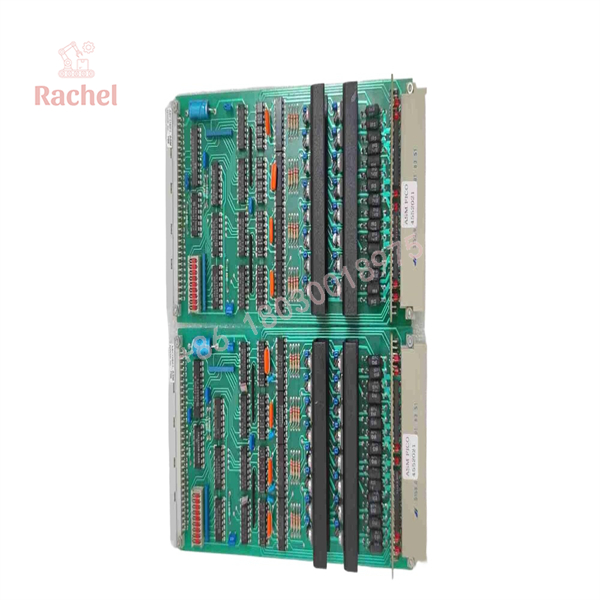

4552021

Transparency SOP: QA & Testing

For a new-surplus or refurbished ASM 4552021, a sensible inspection sequence is:

1. Part-number verification — Confirm the board marking, 4552021 identification, labels, and revision information against the purchasing specification.
2. Physical inspection — Check the PCB, connectors, terminals, mounting hardware, labels, and visible components for damage, corrosion, contamination, or unauthorized modification.
3. Electrical inspection — Where the appropriate test fixture and documentation are available, verify power and interface behavior against the applicable system specifications.
4. Functional testing — Test I/O operation using a compatible system or dedicated test setup when available.
5. Configuration verification — Record any firmware, revision, jumper, switch, or configuration information that could affect interchangeability.
6. Final QA record — Document the test status and supplied part identification before shipment.

“New surplus” should mean unused inventory originating from an original production or maintenance supply chain; it should not automatically be interpreted as a current-production item. The exact condition should be confirmed against the individual unit being supplied.

The Veteran’s Tech Trap Guide

⚠️ Trap #1 — Matching the part number is not enough.
An identical 4552021 marking does not by itself prove that every revision or system configuration is interchangeable. Compare the complete identification information on the installed unit and replacement.

⚠️ Trap #2 — Do not assume the I/O electrical characteristics.
A generic description of an I/O control card is not sufficient to determine whether a particular field signal is electrically compatible. Confirm voltage, current, signal type, isolation, and channel configuration from the applicable documentation before energizing the replacement.

PRO TIP: Photograph the original card, connectors, labels, switch positions, and rack location before removal. For legacy automation hardware, those details can be more useful during commissioning than the catalog description.

⚠️ Trap #3 — Test the field circuit after the hardware swap.
A card replacement can restore controller diagnostics while a wiring or field-device problem remains. Validate representative inputs and outputs individually before returning the process to automatic control.

FAQ

1. What is ASM 4552021?

ASM 4552021 is identified in available product references as an input/output control card used for handling signal exchange between an automation system and field equipment.

2. Is ASM 4552021 a CPU?

No. Available references classify the 4552021 as an I/O control card, rather than identifying it as a standalone PLC or controller CPU.

3. Can I use any 4552021 as a direct replacement?

Not without verification. Confirm the complete part number, hardware revision, rack or chassis compatibility, electrical I/O characteristics, and system configuration before installing a replacement.

4. Can you supply ASM 4552021 as new surplus?

The exact condition should be confirmed for the individual unit. New-surplus inventory should be supplied with its physical condition and identification clearly documented.

5. Is refurbished ASM 4552021 tested?

Testing requirements should be agreed before purchase. For refurbished hardware, request the applicable inspection and functional-test information rather than relying solely on a visual inspection.

6. What warranty should apply?

Warranty coverage depends on the supplier and the specific unit supplied. Confirm the warranty period, coverage, return conditions, and whether functional failure after installation is covered before placing the order.
