Autronica AKS-3 Short-Circuit Protection Module

Description

Product Introduction

The Autronica AKS-3 is a specialized short-circuit protection module engineered for Autronica marine automation, engine room monitoring, and fire safety systems. Installed in central control racks or sub-distribution cabinets, the AKS-3 acts as a high-speed protective barrier between field-side output lines (such as solenoids, alarm sounders, and actuators) and internal system power supplies.

When a field wiring short or severe overcurrent condition occurs, the AKS-3 instantly trips or limits current flow to the affected branch. This targeted response prevents voltage drops on the main 24 V DC system bus, keeping critical CPU controllers and adjacent safety loops online. Replacing a faulty or blown AKS-3 module clears persistent system fault alarms and restores full short-circuit protection across your automation layout.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

It is 3:30 AM aboard a vessel at sea. A seawater leak in a deck actuator junction box creates a direct line-to-ground short on a 24 V DC control loop. Without effective localized protection, the short would drag down the primary cabinet power supply, causing secondary resets across multiple automation racks.

• Marine Engine Room Automation – Power Bus Protection – Isolates field solenoid and valve wiring faults from main control racks.
• Fire Detection & Alarm Systems – Sounder / Output Line Isolation – Safeguards high-current alarm output lines against accidental wiring shorts.
• Retrofits & System Upgrades – Drop-in Hardware Replacement – Direct functional replacement for aging AKS series protection cards in legacy Autronica control panels.

Field Case Study

During a port state control survey, a cargo vessel experienced repeating power supply fault flags on a central monitoring panel. Diagnostics revealed that a compromised field actuator coil was causing micro-shorts that damaged an older AKS-3 module’s switching element. Installing a pre-tested replacement board restored crisp fault isolation on the branch line, allowing the rest of the monitoring cabinet to run without power dips.

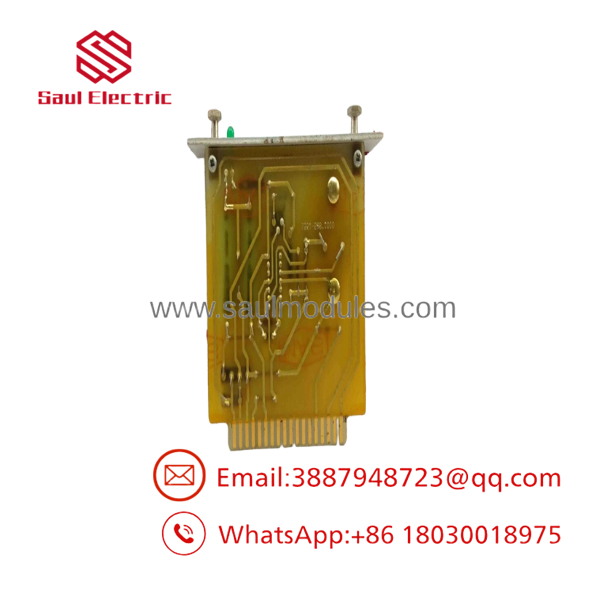

AKS-3

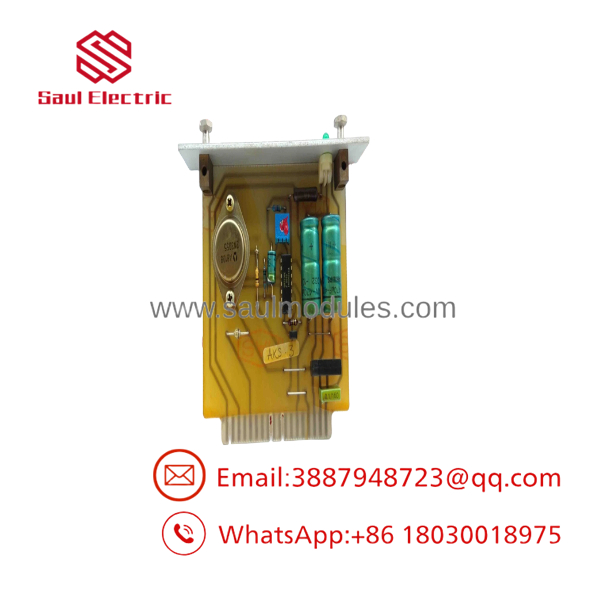

AKS-3

Transparency SOP: Quality Assurance & Testing

We do not just ship boxes; we test them on actual equipment-compatible test benches before they ship to your job site. Our 5-step bench verification process includes:

1. Inbound Visual & Mechanical Inspection: Detailed audit of edge connector fingers, protective housing, PCB trace integrity, and onboard components for thermal stress or arc pitting.
2. Conformal Coating Audit: Verification that protective coatings remain intact against humid, oily marine air.
3. Static Resistance Checks: Multi-point resistance checks across internal power rails and protection channels to verify zero short-circuit paths.
4. Live Bench Simulation: Board insertion into an Autronica test rack under simulated load to verify exact current-trip thresholds and fast isolation response.
5. ESD-Safe Sealed Packaging: Deep cleaned, labeled with part numbers, and vacuum-sealed inside anti-static ESD bags with custom foam protective boxing.

The Veteran’s Tech Trap Guide (Crucial Value-Add)

• ⚠️ Inspect Downstream Wiring Before Power-Up: If the previous board tripped or suffered thermal damage, thoroughly check the downstream field load and junction boxes for short circuits before installing the new unit.
• ❗ De-Energize Rack Power Prior to Insertion: Always isolate main 24 V DC panel power before removing or inserting the module to prevent pin arcing on the backplane edge connector.
• ⚠️ Verify Jumpers / Hardware Settings: Ensure any onboard configuration jumpers or fuse ratings match the requirements of the protected field loop prior to energizing.

Frequently Asked Questions (FAQ for Conversion)

Q: What is the primary role of the Autronica module?

A: The is designed to provide fast-acting short-circuit protection and current isolation for field supply lines, preventing field shorts from taking down the main control rack’s power supply.

Q: How do I confirm is the correct replacement part?

A: Check the silkscreened text on the PCB or the white identification label on the front faceplate. It should state Model .

Q: Are these replacement units suitable for marine class surveys?

A: Yes. Autronica modules are built to meet international classification standards (DNV, ABS, Lloyd’s Register) for marine and offshore installations.

Q: What warranty coverage comes with this module?

A: All marine and industrial control replacement parts are backed by a comprehensive 12-month full replacement warranty. If the board exhibits any operational fault within one year, we replace it or issue a full refund.
