Autronica BSL-111A Loop Driver Module BS-100 System

Description

Product Introduction

The Autronica BSL-111A is a dedicated loop driver board engineered specifically for legacy Autronica fire detection panels, including the widely deployed BS-100 series. Mounted inside the main control cabinet rack, it acts as the primary hardware interface between the system’s central processing architecture and field-installed addressable smoke detectors, heat sensors, and manual call points.

Unlike newer AutroSafe digital modules that handle addressing purely in software, the BSL-111A relies on robust onboard hardware logic and physical DIP switch arrays for loop identification. This hardware-centric design makes it an irreplaceable component for maintaining aging maritime vessels, offshore platforms, and industrial facilities that cannot undergo a full, multi-million-dollar panel retrofit.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

The Marine Engineer’s 2 AM Emergency

You are chief electrician on a 15-year-old container ship navigating heavy seas. At 02:00, the bridge BS-100 panel drops an entire fire detection zone in Cargo Hold 2. The central processor reports a total loop driver failure on slot 4. Without that loop running, class regulations forbid you from entering port, and local fire watch costs will eat your voyage margins alive. You don’t have time to re-wire or upgrade the ship’s entire system. You need to pull the dead board, set the DIP switches on a spare BSL-111A to match the old unit, drop it into the rack, and clear the fault instantly.

Key Field Applications

• Maritime Commercial Vessels: Fire protection loops servicing engine rooms, cargo holds, and accommodation decks running legacy BS-100 panels.
• Offshore Drilling Rigs: Centralized fire loop monitoring across non-hazardous machinery spaces.
• Industrial Manufacturing Plants: Maintaining legacy Autronica central fire networks in facilities where control system validation requires keeping original hardware footprints.
• Retrofit Staging: Serving as a temporary drop-in spare while facility managers budget for future complete system overhauls.

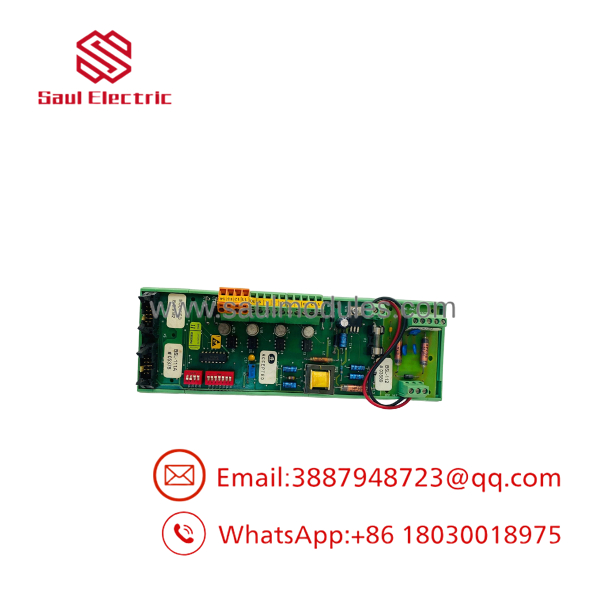

BSL-111A

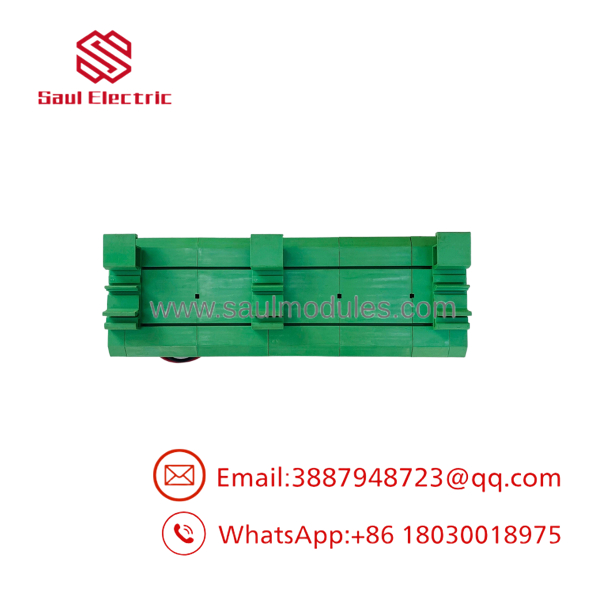

BSL-111A

Transparency SOP: Quality Assurance & Testing

We know legacy fire equipment cannot fail when installed. We don’t just ship boxes; we test them on actual Autronica test racks.

1. Inbound Visual & PCB Audit: Inspection for trace corrosion, dry solder joints, blown tantalum capacitors, or heat-stressed components.
2. DIP Switch & Header Verification: Checking gold-contact pin plating, mechanical switch detents, and terminal block screw threads.
3. Live Rack Power-On: Insertion into a live BS-100 test rack to confirm power rail draw, startup handshake, and bus stability.
4. Loop Communication Load Testing: Connecting a test loop with addressable detectors to verify bidirectional data transfer and signal integrity.
5. ESD Cleaning & Moisture Barrier Sealing: Cleared boards are treated with anti-static spray, packed in vacuum-sealed static shielding bags, and ruggedized for sea transport.

The Veteran’s Tech Trap Guide (Crucial Value-Add)

⚠️ DO NOT Forget to Match DIP Switch Settings Before Power-Up

The BSL-111A uses physical red DIP switch blocks to set its loop identity and operating parameters on the panel’s internal bus. Take a high-res photo of the dip switches on the failed board before pulling it out. If you insert the replacement with default switch positions, the main processor will throw a system configuration error or map the loop to the wrong zone.

❗ Inspect the Ribbon Cable Headers for Pin Oxidation

Marine environments cause ambient salt air to creep into panel enclosures. When swapping out a card, check the male ribbon pins on the backplane connector. Corrosion on pin 1 or 2 will lead to intermittent power drops on the newly installed board. Clean the connector header with electrical contact cleaner before seating the new card.

⚠️ Observe Correct Polarity on Field Loop Terminals

Unlike modern polarity-insensitive loop devices, legacy Autronica loops are strictly polarity-sensitive. Reversing the positive and negative loop legs on the removable terminal strip will blind every detector on that loop and can damage the driver’s output transistors over time.

Frequently Asked Questions (FAQ for Conversion)

Q: Can I replace a with a standard BSL-111 or BSL-112?

A: No. While they belong to the same board family, the ‘A’ revision contains updated internal driver logic and modified component ratings. Substituting different board suffixes can cause bus communication errors or incorrect voltage outputs on the loop.

Q: Is the hot-swappable?

A: No. Pulling or inserting this card while the main BS-100 rack is powered can arc the backplane pins and corrupt the panel’s central CPU memory. Always switch off system supply power before pulling card modules.

Q: Why buy a refurbished or surplus instead of upgrading the fire panel?

A: Upgrading a full marine or industrial fire system requires replacing all field detectors, rewiring loops, and undergoing re-certification by class societies (e.g., DNV, ABS)—a process costing tens of thousands of dollars. Installing a surplus keeps your system 100% compliant at a fraction of the cost.

Q: How do I know if the board issue is the driver or the field loop itself?

A: Disconnect the field loop wires from the terminal block and land a single, known-good test detector directly on the terminal output. If the board communicates cleanly with the test device, your fault lies out in the field cable or a shorted detector.

Q: What warranty coverage comes with your surplus modules?

A: Every board—whether new surplus or fully bench-refurbished—is backed by our full 12-month replacement warranty.
