Description
Core Product Summary
The Belkin F1DC108V is an 18.5-inch widescreen 1U rack-mount console featuring an integrated 8-port PRO3 KVM switch, designed to centralize server management within standard server racks and cabinets. Built with a slim-profile sliding drawer, keyboard, touchpad, and an active matrix TFT display, it minimizes rack footprint while offering clear visual workspace for system administrators.
Engineering integration is streamlined via screwless adjustable mounting rails and multi-platform server connectivity supporting USB and PS/2 interface options. The integrated 8-port KVM module utilizes intuitive on-screen display (OSD) menus and hot-key command sequences to navigate connected servers seamlessly. Operating on standard AC power, the unit is engineered for enterprise datacenters, server rooms, and telecommunications enclosures requiring reliable local multi-server control.
Key Technical Specifications
| Parameter | Specification Value |
| Product Type | 1U Rack-Mount LCD Console with Integrated 8-Port KVM Switch |
| Display Type | 18.5-inch diagonal TFT Active Matrix Widescreen LCD |
| Native Resolution | 1366 x 768 pixels at 65 Hz |
| Contrast Ratio & Response Time | 1000:1 contrast ratio, 5 ms response time |
| Color Support | 16.7 million colors |
| Input Controls | Integrated keyboard, touch pad, and bank selection hotkeys |
| KVM Switch Capacity | Controls up to 8 servers directly (expandable via cascading/stacking) |
| Keyboard / Mouse Interface | USB and PS/2 supported at server connection via micro-cable kits |
| Form Factor & Rack Units | 1U rack-mountable drawer with screwless rails |
| Dimensions (W x D x H) | 19.0 x 27.5 x 1.7 inches (482.6 x 698.5 x 43.2 mm) |
| Unit Weight | Approx. 24.9 lbs (11.3 kg) |
| Operating Voltage | 120 to 230 V AC (50/60 Hz switching power supply) |
| Operating Temperature Range | 32 to 104 °F (0 to 40 °C) |
| Certifications / Approvals | FCC, UL, cUL, CE |
Detailed Product Overview
The Belkin F1DC108V provides hardware-level access to multiple servers without consuming valuable rack space or requiring external desktop peripherals. The high-resolution 18.5-inch widescreen panel delivers an expansive visual workspace, allowing administrators to monitor complex system dashboards, error logs, and boot processes clearly.
Integration into rack environments is assisted by adjustable, screwless mounting rails that adapt flexibly to various rack depths without specialized bracket configurations. The built-in PRO3 KVM architecture supports dependable switching integrity, utilizing both On-Screen Display (OSD) menus and keyboard hot-keys for rapid channel changes. It acts as a consolidated central command post for mission-critical rack systems, reducing hardware clutter inside the enclosure.

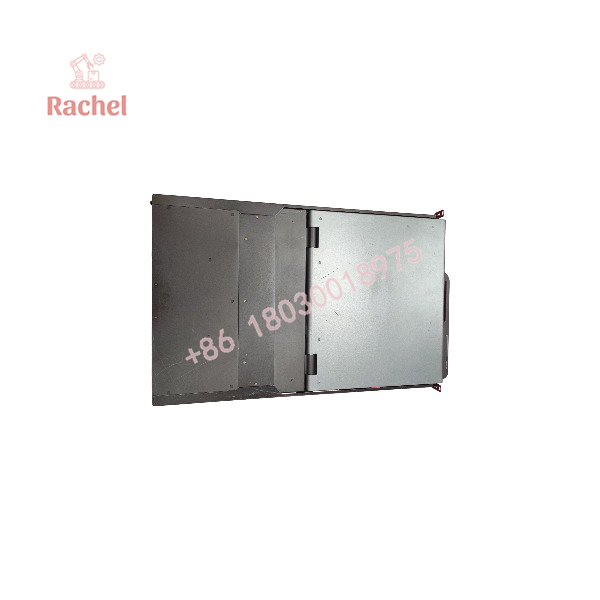

F1DC108V

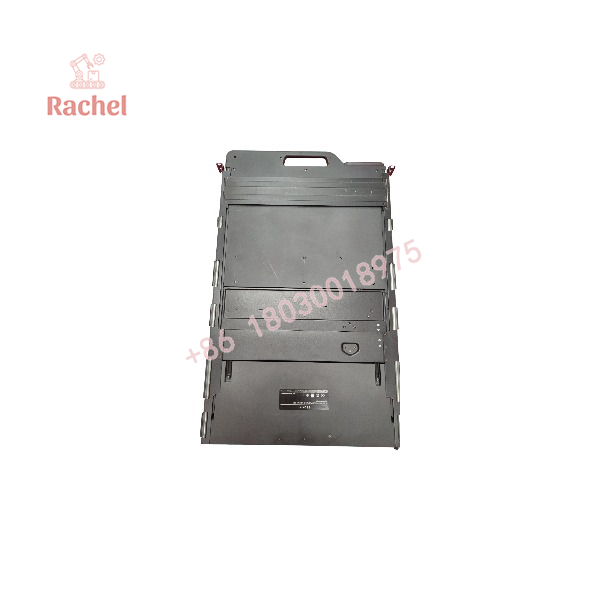

F1DC108V
Dimensions, Mounting & Connection Notes
- Physical Dimensions: Enclosure width is 19.0 inches, height occupies 1U (1.7 inches), and total depth is 27.5 inches.
- Rail Installation: Employs a screwless quick-install rail design that snaps directly into square or universal mounting holes on standard 4-post server racks.
- Rear Interfaces: Features rear-facing connectors for main power input, server micro-cable blocks, and cascading/firmware flash ports.
- Ergonomics & Safety: Features built-in automatic rail locks when fully extended, and an easy-grip release handle to fold and slide the display safely back into the 1U housing.
System Compatibility & Integration Requirements
| Item / Dependency | Verified Compatibility or Requirement | Practical Note |
| Enclosure Compatibility | Standard 19-inch 4-post server racks and cabinets | Requires 1U of vertical rack space and adequate internal depth for the 27.5-inch chassis. |
| Server Connection Cables | Belkin Micro-Cable Kits (F1D9400-XX for PS/2, F1D9401-XX for USB) | Dedicated combo cables route video, keyboard, and mouse signals efficiently from each server to the rear 50-pin ports. |
| Operating Systems | Windows, Mac OS X, Linux, Sun Solaris, Novell NetWare | Independent of target server OS; operates at the hardware layer via USB/PS/2 emulation. |
| Power Requirements | 120–230 V AC main power source | Standard IEC power cord connection located at the rear of the unit. |
FAQ
What is the Belkin F1DC108V?
The Belkin F1DC108V is a 1U rack-mountable console featuring an 18.5-inch widescreen LCD monitor, keyboard, touchpad, and an integrated 8-port PRO3 KVM switch.
How many computers can be connected directly to this console?
The built-in KVM switch accommodates up to 8 individual servers directly via specialized multi-format micro-cable kits.
What is the native display resolution of the screen?
The integrated widescreen display supports a native resolution of 1366 x 768 pixels at 65 Hz.
What server interface types are supported?
It supports both USB and PS/2 server connections depending on the specific Belkin micro-cable kit utilized (such as F1D9400 or F1D9401 series).
Does the unit require special mounting brackets?
No. It features a toolless, screwless rail design engineered to fit multi-vendor server racks natively.
