Description
Product Introduction
The AMCI 7264 is a dual-axis stepper controller board engineered by Advanced Micro Controls Inc. for high-precision motion applications. Designed to offload complex motion trajectory generation from the main system CPU, this module generates precise pulse-and-direction signals to control two independent axes of microstepping or servo drives in automated manufacturing machinery.
What makes the 7264 a staple in motion control systems is its hardware-based profile generation combined with quadrature encoder feedback support. By processing position verification and homing logic directly on the board, it eliminates position-following errors caused by scan-time delays in the host controller, delivering smooth acceleration and exact positioning on demanding high-speed lines.
Key Technical Specifications
| Parameter | Value |
| Number of Axes | 2 independent or synchronized axes |
| Output Signals | Step & Direction (Differential RS-422 / TTL) |
| Maximum Step Frequency | 250 kHz (High-speed pulse output) |
| Feedback Inputs | Incremental Quadrature Encoder (A, B, Marker) |
| Motion Profiles | Trapezoidal and S-Curve Acceleration / Deceleration |
| Auxiliary I/O | Dedicated Home, Forward Limit, Reverse Limit inputs per axis |
| Power Supply Requirements | +5 VDC (Backplane / Internal) & 24 VDC (External I/O) |
| Operating Temperature | 0°C to +60°C (32°F to 140°F) |
| System Compatibility | AMCI Standalone Rack / PLC Interface Systems |
Application Scenarios & The “Trench” Experience
Picture this: It’s 3:30 AM on a high-throughput packaging line. The primary dual-axis pick-and-place gantry suddenly loses step synchronization on axis B, throwing a continuous position-following fault. The machine shuts down mid-cycle, blocking the main conveyor. The root cause is a blown pulse-driver IC on the original AMCI indexer card caused by a shorted cable shield. You need a drop-in replacement card to restore motion profiles without reprogramming the host PLC sequence.
- Packaging Machinery – High-Speed Cartoning & Labeling – Executes precise index feeding and rotary cut-off registration.
- Material Handling & Robotics – Pick-and-Place Gantries – Controls dual-axis linear actuators with synchronized move profiles.
- Semiconductor & Electronics – Precision XY Table Positioning – Handles microstepping motion for automated component placement.
In a recent emergency service call at a pharmaceuticals manufacturing plant, a failure on an aging motion card halted a critical bottle capping indexer. Replacing the damaged module with a verified AMCI 7264 restored pulse generation and quadrature feedback alignment in under 30 minutes, getting the packaging line back online before the morning shift.

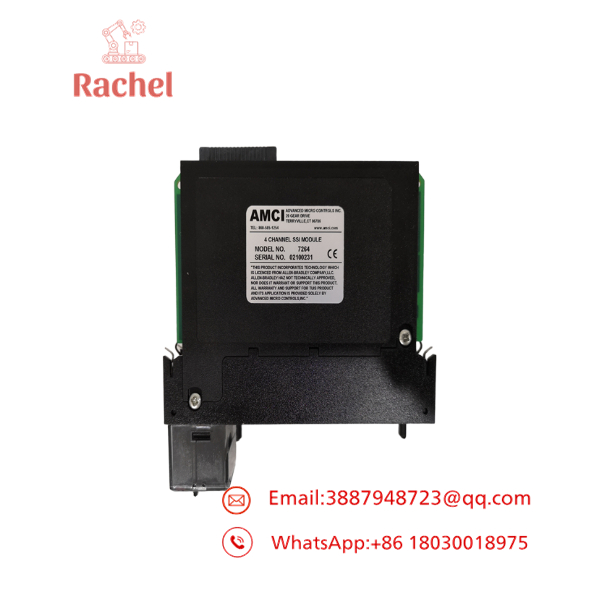

7264

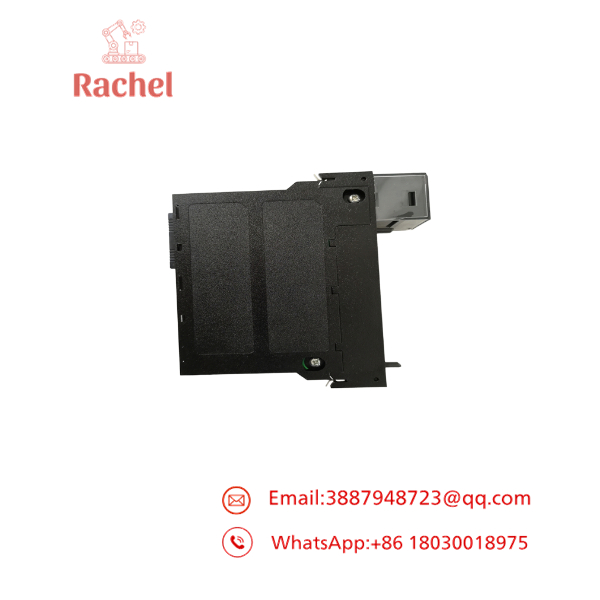

7264
Transparency SOP: Quality Assurance & Testing
We test every AMCI 7264 module thoroughly on specialized test rigs before shipment. Here is our direct verification process:
- Visual & Hardware Inspection: We inspect edge connectors, check soldering integrity under magnification, and verify onboard component health.
- Backplane Power-On & Initialization: The board is inserted into a test chassis to verify power rail stability (+5V / +24V) and clear Power-On Self-Test (POST) routines.
- High-Speed Pulse Output Testing: Using high-speed oscilloscopes, we verify pulse-and-direction signal waveforms up to 250 kHz for jitter-free step output.
- Encoder Closed-Loop Verification: We feed quadrature signals into the encoder inputs to verify real-time position tracking and register counting accuracy.
- Anti-Static ESD Packaging: Cleared boards are thoroughly cleaned and sealed in static-shielding bags with custom foam protective boxing.
The Veteran’s Tech Trap Guide (Crucial Value-Add)
- ⚠️ Match your DIP switches before powering up! The AMCI 7264 utilizes onboard DIP switches or jumpers for address selection and pulse output modes. Take a photo of the switch configuration on the old card before pulling it out, and replicate those settings on the replacement card.
- ❗ Never disconnect motor drives under power. Disconnecting or wiring the step-and-direction output lines while the 24 VDC auxiliary power is applied can induce voltage spikes that will blow the line driver ICs on the card.
- ⚠️ Ground encoder shields at one end only. If you are running long quadrature encoder cables back to the 7264, terminate the cable shield at the panel ground bar only. Floating or double-grounded shields cause noise loops that corrupt pulse counts.
- ❗ Verify drive input compatibility. Ensure your stepper drive accepts differential (RS-422) or single-ended (TTL) step inputs to match the output configuration of the 7264 module.
Frequently Asked Questions (FAQ for Conversion)
Q: Can the AMCI 7264 control servo drives as well as stepper drives?
A: Yes. As long as your servo drive accepts standard pulse-and-direction (Step/Dir) commands in position control mode, the 7264 can drive both stepper and servo systems.
Q: Does the module handle closed-loop position correction internally?
A: The 7264 reads quadrature encoder feedback to track actual position and detect stall/following errors, reporting position discrepancies back to the host system or stopping the move sequence upon error thresholds.
Q: What is the lead time for this discontinued AMCI module?
A: Since this model is discontinued by AMCI, availability depends on current surplus inventory. We maintain fully tested, pre-inspected units in stock for immediate same-day emergency dispatch.
Q: Are these genuine AMCI manufactured boards?
A: Yes, 100%. We only supply original OEM Advanced Micro Controls Inc. manufactured hardware. We do not deal in reverse-engineered or unofficial clone boards.
Q: What warranty coverage comes with this motion control board?
A: We back all our AMCI 7264 modules with a full 12-month operational warranty. If the board experiences any hardware defect or output signal failure under standard operating conditions within one year, we will swap it out or process a full refund immediately.
