Bently Nevada 135137-01 3500/45 Position I/O Module

Description

Product Introduction

The Bently Nevada 135137-01 is the Position I/O Module with Internal Terminations designed for use with the 3500/45 Position Monitor in the 3500 Machinery Protection System. Installed behind the front monitor module, it provides sensor terminations and interfaces for multiple position measurement technologies used on critical rotating equipment. It supports proximity probes, Rotary Position Transducers (RPTs), and DC Linear Variable Differential Transformers (DC LVDTs).

In our field experience, many replacement orders fail because engineers identify only the front monitor. The 135137-01 is the rear I/O module, not the monitor itself. Replacing only one half of the assembly without confirming which component actually failed can waste valuable outage time. Verify the monitor, rear I/O module, and sensor wiring before ordering replacement parts.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

The thrust bearing alarm refused to clear.

The proximity probes tested perfectly.

The front monitor passed diagnostics.

The actual problem was hiding behind the monitor.

I’ve seen this more than once. The rear 135137-01 had damaged terminal circuitry caused by years of vibration and repeated maintenance work. Replacing the I/O module restored stable position readings without replacing the much more expensive front monitor.

Typical Applications

Steam Turbines – Axial Thrust Position Monitoring –
Interfaces with proximity transducers to monitor rotor thrust movement and initiate alarms before bearing damage occurs.

Gas Turbines – Differential Expansion Measurement –
Processes position signals used to monitor casing and rotor thermal expansion during startup and shutdown.

Oil & Gas – Compressor Anti-Surge Systems –
Receives valve position and shaft position inputs used by machinery protection systems.

Hydroelectric Plants – Guide Bearing Position Monitoring –
Provides reliable position measurement for critical rotating assemblies.

Petrochemical Facilities – Control Valve Position Feedback –
Supports continuous monitoring of valve movement and mechanical positioning devices.

Field Replacement Example

During a scheduled turbine inspection, maintenance personnel reported unstable axial position readings that shifted several mils without any mechanical movement.

Probe gap voltages remained normal.

The monitor diagnostics showed no faults.

Inspection revealed oxidation on the internal termination circuitry of the 135137-01. After replacing the rear I/O module and recalibrating the position channels, the readings stabilized and the turbine returned to service on schedule.

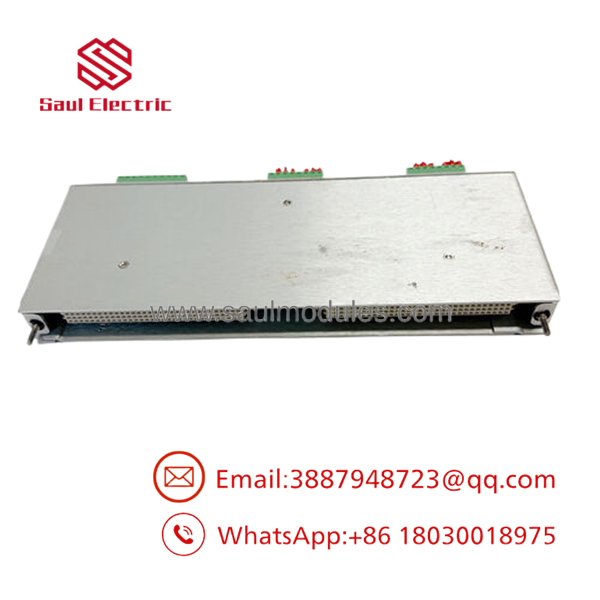

135137-01

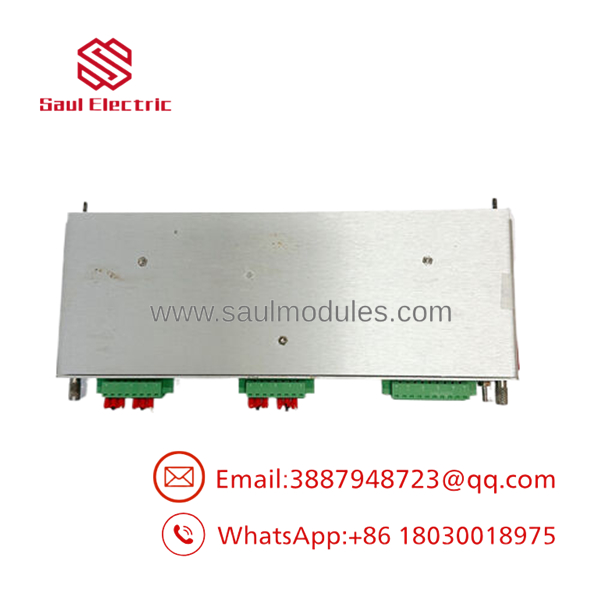

135137-01

Transparency SOP: Quality Assurance & Testing

We don’t just ship boxes; we test them on actual Bently Nevada 3500 racks.

1. Inbound Inspection

• Verify OEM labels, serial numbers, and revision markings.
• Inspect internal terminal blocks and PCB traces.
• Check for connector wear and unauthorized repairs.

2. Live Rig Testing

• Install with a compatible 3500/45 Position Monitor.
• Simulate position sensor inputs on all four channels.
• Verify correct channel recognition and alarm operation.

3. Electrical Parameter Checks

• Verify terminal continuity.
• Confirm signal integrity.
• Check channel isolation where applicable.
• Verify stable operation during extended testing.

4. Compatibility Verification

• Confirm compatibility with the installed 3500/45 monitor.
• Record hardware revision and test results.

5. Final QC & Anti-Static Packaging

• Complete full functional testing.
• Package in ESD-safe materials.
• Protect terminals and connectors.
• Archive inspection records for traceability.

The Veteran’s Tech Trap Guide

⚠️ Don’t confuse the monitor with the rear I/O module.
The 135137-01 contains the field wiring interface. It cannot function without the matching 3500/45 Position Monitor.

❗ Label every field wire before removal.
Position transmitters often have similar wiring. One swapped pair can create false thrust or differential expansion readings that look like a machinery problem.

⚠️ Verify sensor compatibility before installation.
This version supports Proximitor®, RPT, and DC LVDT inputs. Confirm the installed sensor technology before replacing the module.

❗ Don’t overlook the terminal screws. Trust me.
Loose internal terminations can create intermittent position signals that only appear when the machine reaches operating temperature or full load.

Frequently Asked Questions (FAQ)

Q1: What is the function of the Bently Nevada 135137-01?

A: It is the rear Position I/O Module used with the 3500/45 Position Monitor, providing internal field terminations and signal interfaces for position sensors.

Q2: Which sensors are supported?

A: The module supports Proximitor® probes, Rotary Position Transducers (RPTs), and DC Linear Variable Differential Transformers (DC LVDTs) when paired with the appropriate 3500/45 monitor configuration.

Q3: Can the 135137-01 operate by itself?

A: No. It is only the rear I/O assembly. It must be installed together with a compatible 3500/45 Position Monitor.

Q4: What machinery measurements can this module support?

A: Depending on system configuration, it can support axial shaft position, differential expansion, valve position, case expansion, and other position-related measurements used in machinery protection systems.

Q5: Is the module hot-swappable?

A: No. Replacement should be completed during a planned maintenance outage. Removing the rear I/O module while the monitor is in service interrupts the associated measurement channels.

Q6: Why are surplus modules less expensive than buying directly from the OEM?

A: Most surplus inventory comes from plant modernization projects, cancelled capital projects, or unused maintenance stock. Lower pricing reflects inventory sourcing rather than product capability. Ask for documented functional testing, traceability, and inspection records before purchasing.

Q7: What warranty is typically available?

A: Most reputable industrial automation suppliers provide a 12-month warranty on professionally tested surplus or refurbished Bently Nevada 135137-01 Position I/O Modules. Before purchasing, request channel verification results, hardware revision documentation, and serial-number traceability.
